IP68 Industrial Membrane Keyboard With OMRON Key Technology Chemical And Liquid Resistant

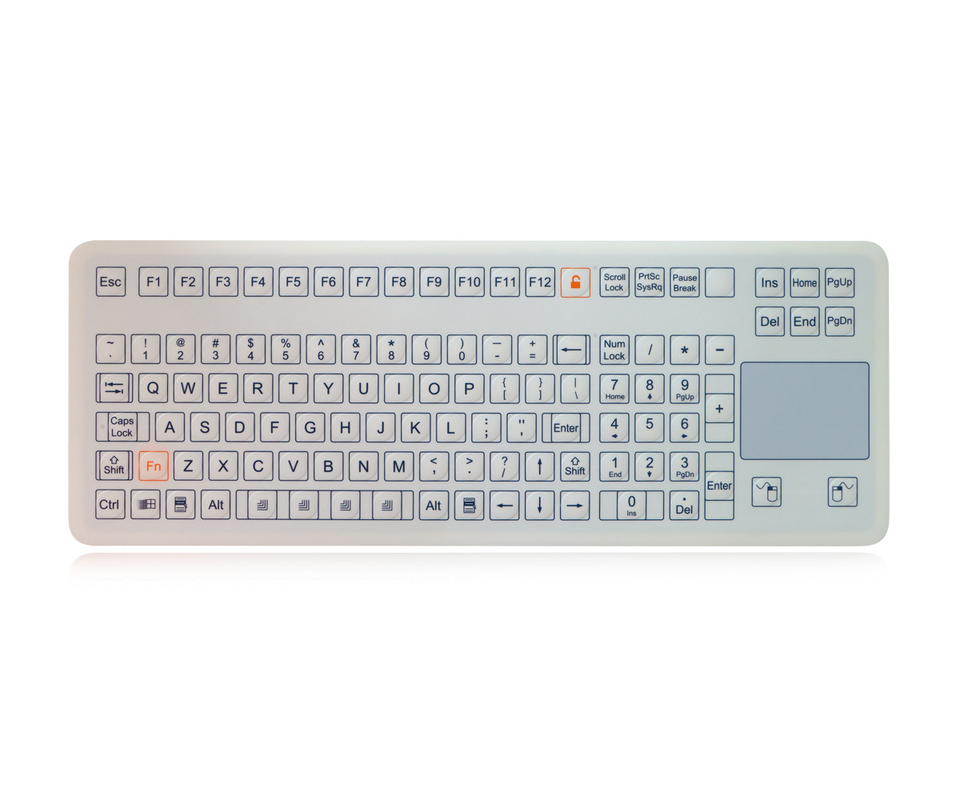

Large Image : IP68 Industrial Membrane Keyboard With OMRON Key Technology Chemical And Liquid Resistant

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	IKB-MKB
Certification:	RoHS compliant, CE and FCC certified, ISO 9001-2015
Model Number:	K-TEK-D399TP-KP-FN-DT-SW

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	To be quoted
Packaging Details:	Each keyboard to one box, several boxes to one carton.
Delivery Time:	ASAP Within 2-3 weeks upon payment confirmed
Payment Terms:	Full payment in advance, Western Union, T/T, Paypal
Supply Ability:	3000psc/month

Contact Now

IP68 Industrial Membrane Keyboard With OMRON Key Technology Chemical And Liquid Resistant

Description

Material:	Membrane	Keys:	111 Keys
G.W.:	1.40KG	Mounting:	Mountable Desk Top Version
Color:	White	Name:	Industrial Membrane Keyboard
Keyword:	Industrial Keyboard Touchpad, Membrane Keyboard, Industrial Keyboard
Highlight:	Liquid Resistant Industrial Membrane Keyboard , Chemical Resistant Industrial Membrane Keyboard , IP68 Industrial Membrane Keyboard

IP68 Industrial Membrane Keyboard With OMRON Key Technology Chemical And Liquid Resistant

DESCRIPTION: 111 keys IP68 dynamic rated washable industrial membrane keyboard with full keyboard functionalities with integrated numeric keypad and function keys on the upper line, IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, totally sealed and ruggedized industrial PCB with super quality OMRON switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with FN + Lock combination key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, stand alone movable desk top version with robust polycarbonate case.

DIMENSIONS: 399.00mm x 149.00mm x 18.80mm (L x W x H)

MECHANICAL DATA
Number of Keys	111 keys (including 2 mouse buttons)
Key switch Technology	OMRON switch technology with short stroke 0.45mm for stable and accurate data input
Actuation Force	2.0N±0.2N (press point)
Key Travel	0.45±0.05mm
Key switch Lifetime	1 mil. operations
Mounting Type	Flat desktop version
Colors	White
G.W.	1.10KGs
Key Dimensions (print area)	14.0mm x 14.0mm
Touch pad	sealed and ruggedized tough touchpad
Touchpad cover	Composite
Method	capacitive
More than Lifetime 10 million strokes
Mutual capacitance sensing
X/Y axis location detection resolution	40 Counts /mm
X/Y position report	relative
Output (self-detectable depending on cable)	PS2 or USB
Tracking speed	Maximum 1,016 m/sec
Power supply voltage	5VDC ± 0.25V
Current rating (active mode)	< 10 mA
ELECTRICAL DATA
Supply Voltage	DC +5V ± 5%
Current Rating	50mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Interface	PS2, USB available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Operating RH	100%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS, CE, FCC
Protection Level	IP68
Key Lifespan	>1 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.
