Product Details:
|
Material: | Silicone | Backlight: | White |
---|---|---|---|
Keys: | 87 Keys | Key Travel: | 1.50mm±0.10mm |
Protection Level: | IP65 Dynamic (front Panel) | Interface: | USB/PS2 Available |
Pointing Device: | Touchpad | Lifespan: | > 5 Years |
Key Word: | Rugged Keyboard, Silicone Industrial Keyboard | ||
Highlight: | Optical Trackball Mouse Silicone Keyboard,Military Grade Silicone Keyboard,FN Function Keys Silicone Keyboard |
Industrial Keyboard with FN Function Keys and Optical Trackball Mouse for Military
Model NO: K-TEK-M425-OTB-FN-BL-ML-BT
DESCRIPTION FOR MILITARY KEYBOARD:
87 keys IP65 dynamic sealed & ruggedized silicone rubber industrial keyboard, 12 FN function keys (F1, F2...F11, F12) on the top line for easy operation, integrated with a conventional mouse with middle wheel, left/right buttons as well as one IPX6 rating 34mm optical trackball mouse at 500~1000 DPI resolution for fast cursor moving, industrial PCB with carbon-on-gold key switch technology with 1.50mm key stroke with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface treatment to withstand most chemicals and liquids under harsh environment, FN+ CLEAN combination key for easy cleaning via locking/disable the entire keyboard without needing to take away the keyboard from PC, high quality durable black titanium electroplated on the top stainless steel plate, with sinking holes for panel mount to user's device. Adjustable industrial white backlight included, which meets MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.), and MIL-STD-461G (EMC, EMI, EMS, ESD) OPTIONAL.
DIMENSIONS: 425.0mm x 150.0mm (Front Panel)
MECHANICAL DATA | |
Key | 87 keys + 3 mouse keys |
Key top style | Protuberant rectangular keys with tactile feeling. |
Key travel | 1.50mm±0.10mm |
Actuation Force | 1.5N±0.2N (pressure point ) |
Switch life | more than 5 million of operations. |
G.W. | 2.50KGs |
ELECTRICAL DATA | |
Supply Voltage | DC +5V±5% |
Current Rating | 50mA when backlight is off, 300mA with backlight on |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Meet MIL-STD-461G (EMC, EMI, EMS, ESD): (optional) | |
1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads |
2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads |
3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads |
4 | CS106 Conducted Susceptibility, Transients, Power Leads |
5 | CS112 Electrostatic Discharge Susceptibility |
6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection |
7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation |
8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads |
9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field |
10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field |
11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field |
12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field |
MIL-STD-810F (wide temperature, shock, vibration, humidity etc.) | |
Lifespan | > 5 years |
Switch Contact Material | carbon-on-gold key switch technology |
Interface | PS2, USB or aviation plug available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Saline mist | 96h, IEC60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
Humidity | 100% |
Atmospheric pressure | 60-106Kpa |
RELIABILITY | |
RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
Protection Level | IP65 dynamic (front panel) |
Key Lifespan | >5 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |

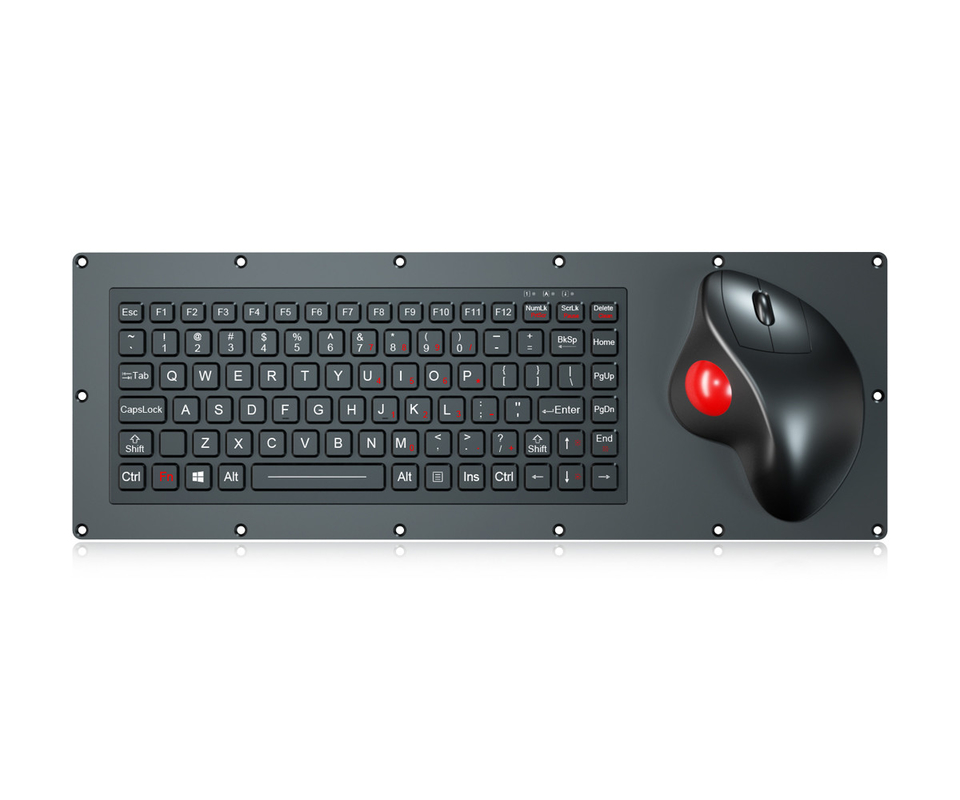

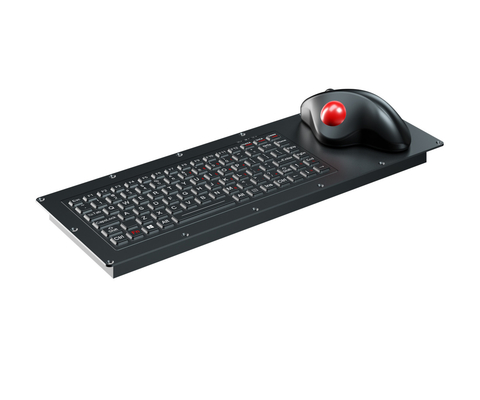

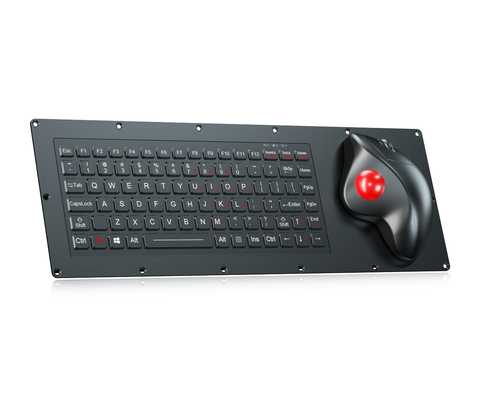

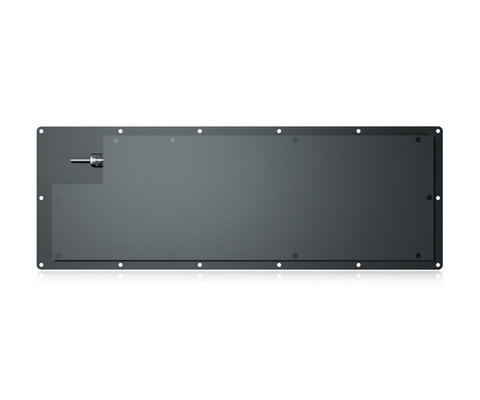

Actual Photos For Military Keyboard
