Chemical And Liquid Resistant Industrial Membrane Keyboard With Anti-Microbial Surface

Chemical and Liquid Resistant Industrial Membrane Keyboard with Anti-Microbial Surface

Description For Industrial Membrane Keyboard : 107 keys IP65 dynamic rated industrial membrane keyboard with integrated numeric keypad and function keys on the upper line, industrial PCB with OMRON switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with “FN+Lock” combination key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized stainless steel back plate with brushed treatment, top panel mounted solution with threaded bolts.

Industrial Membrane Keyboard Dimensions: 405.0mm x 155.0mm (L x W)



MECHANICAL DATA
Number of keys	107 keys
Key switch Technology	OMRON switch technology with short stroke 0.45mm for stable and accurate data input
Actuation Force	2.0N±0.2N(press point)
Key Travel	0.45±0.05mm
Mounting Type	Top panel mounting
Colors	Black
G.W.	1.20KGs
Switch life	more than 1 million of operations
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	30mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Interface	PS2, USB available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Saline mist	96h, IEC60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
Humidity	100%
Atmospheric pressure	60-106Kpa
RELIABILITY
RoHS compliant, CE and FCC certified
Protection Level	IP65 dynamic (front panel)
Key Lifespan	>1 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.

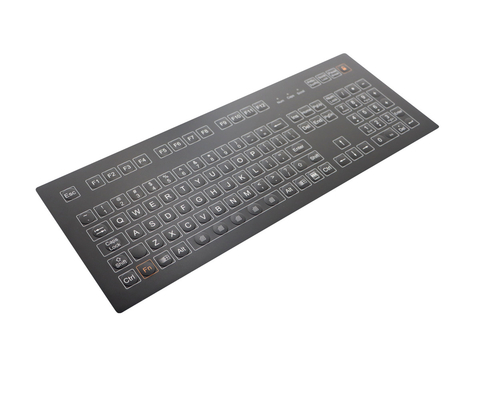

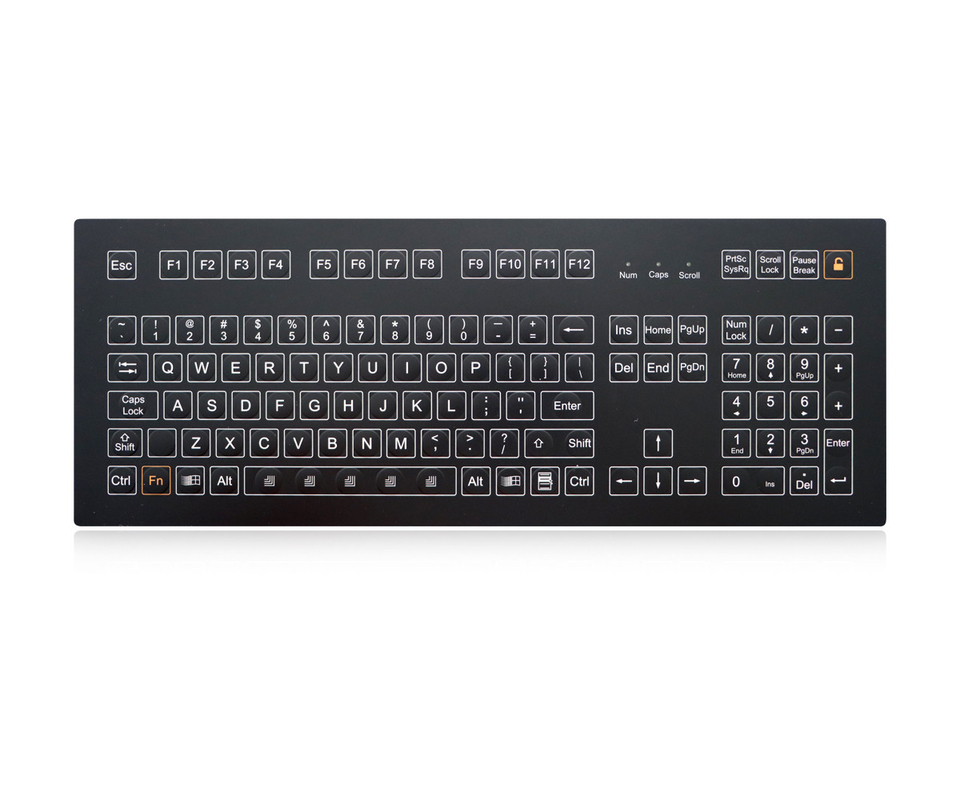

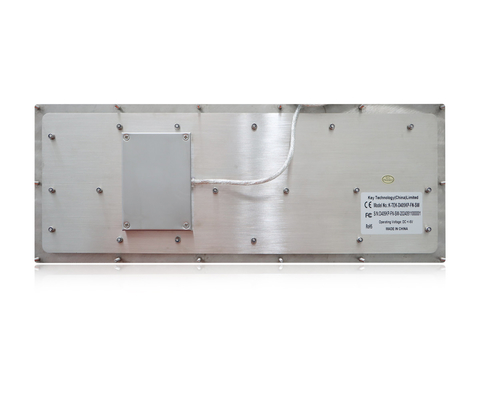

Industrial Membrane Keyboard Actual Photos
