Product Details:
|
Material: | Silicone | Backlight: | White |
---|---|---|---|
Keys: | 110 Keys (including 2 Mouse Buttons) | Key Travel: | 1.50mm±0.10mm |
Protection Level: | IP65 Dynamic (front Panel) | Interface: | USB/PS2 Available |
Pointing Device: | Touchpad | Lifespan: | > 5 Years |
Key Word: | Rugged Keyboard, Silicone Industrial Keyboard | ||
Highlight: | Embedded Silicone Rubber Keyboard,89 Keys Military Keyboard,Durable Military Keyboard |
Model NO: K-TEK-M380-DHP-FN-BL-DWT-151B-25KV-DT-DWP
DESCRIPTION FOR MILITARY KEYBOARD:
89 keys IP67 dynamic sealed and durable embedded silicone rubber military keyboard with a Force Sensing Resistor pointing device with 2 mouse buttons for left and right clicking , with built-in military grade PCB, 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, desk top version with grey color stainless steel metal housing or rear panel mount solution wtih mounting holes along the edges of stainless steel back plate, adjustable white backlight included. FN + bulb button to control keyboard backlight on or off. Designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.). Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
DIMENSIONS: 380.0mm x 160.0mm x 30.9 (L x W x H)
MECHANICAL DATA | |
Keys | 91 keys (including 2 mouse buttons) |
Key top style | Protuberant rectangular keys with tactile feeling |
Key travel | 1.50±0.10mm |
Actuation Force | 1.5N±0.2N (pressure point ) |
G.W. | 3.0KGs |
ELECTRICAL DATA | |
Supply Voltage | DC +5V±5% |
Current Rating | 50mA when backlight is off, 300mA with backlight on |
Meet MIL-STD-461G (EMC, EMI, EMS, ESD) | |
1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads |
2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads |
3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads |
4 | CS106 Conducted Susceptibility, Transients, Power Leads |
5 | CS112 Electrostatic Discharge Susceptibility |
6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection |
7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation |
8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads |
9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field |
10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field |
11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field |
12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field |
MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
Lifespan | > 5 years |
Switch Contact Material | Carbon-on-gold key switch technology |
Interface | USB |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -40℃ to +75℃ |
Storage temperature | -45℃ to +85℃ |
Operating RH | 3%~95% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY | |
RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
Protection Level | IP67 |
Key Lifespan | >5 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |

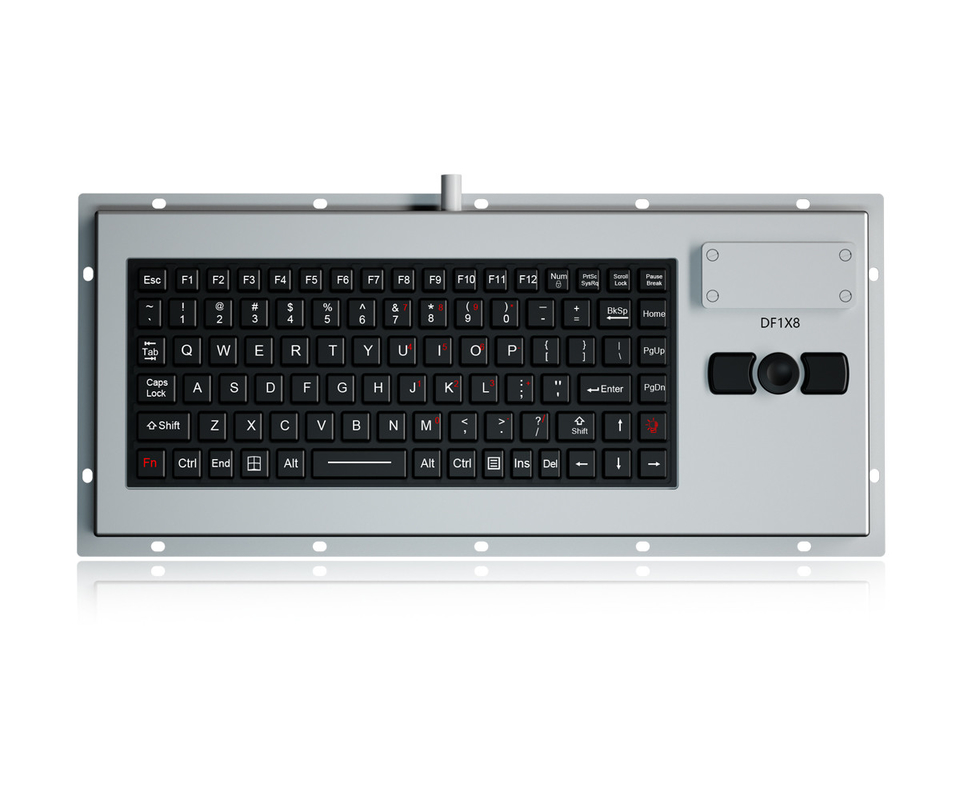

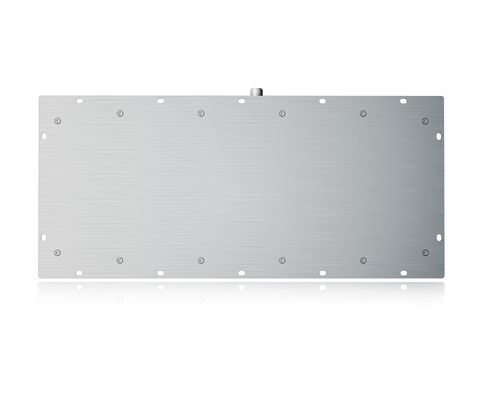

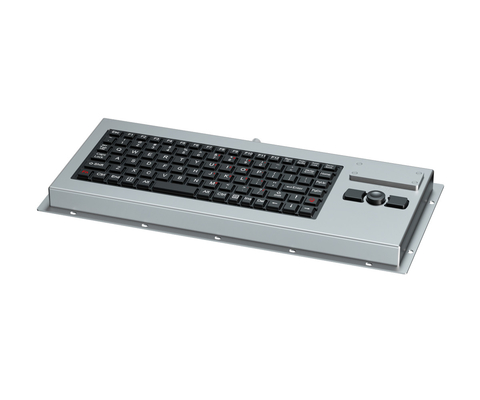

Actual Photos For Military Keyboard
