Product Details:
|
Material: | Silicone Rubber | Backlight: | White |
---|---|---|---|
Keys: | 87 Keys + 2 Mouse Buttons | Key Travel: | 1.50mm±0.10mm |
Protection Level: | IP65 Dynamic (front Panel) | Interface: | USB/PS2 Available |
Certification: | ROHS,CE,FECC | Size: | Keyboard: 275.6mm X 118.6mm (L X W) Touchpad: 66.0mm X 50.0mm (L X W) |
Key Word: | Rugged Keyboard, Silicone Industrial Keyboard | ||
Highlight: | Sealed Industrial Keyboard,Durable Industrial Keyboard,Harsh Environment Industrial Keyboard |
Sealed and Durable Industrial Keyboard With Touchpad and 2 Mouse Keys for Harsh Environment
Silicone Industrial Keyboard Model NO: K-TEK-M270-FN-BL-ML-OEM+TP65+2KEY
DESCRIPTION FOR SILICONE INDUSTRIAL KEYBOARD: 87 keys IP65 dynamic sealed & durable embedded military silicone rubber keyboard with sealed & rugged waterproof touchpad and 2 mouse keys integrated, with built-in military grade PCB, 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC, panel mount with super thin ruggedized aluminum back plate with mounting holes, adjustable white backlight included. Built to meet MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.). Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
Dimension: Keyboard: 275.6mm x 118.6mm (L x W) Touchpad: 66.0mm x 50.0mm (L x W)
MECHANICAL DATA | |
Keys | 87 keys + 2 mouse buttons |
Switch Contact Material | Carbon-on-gold key switch technology |
Key top style | Protuberant rectangular keys with tactile feeling |
Key travel | 1.50mm±0.10mm |
Actuation Force | 1.5N±0.2N |
Switch life | more than 5 million of operations |
Touch pad | sealed and ruggedized tough touchpad |
Touchpad cover | Composite |
Mutual capacitance sensing | |
X/Y axis location detection resolution | 40 Counts /mm |
X/Y position report | relative |
Output (self-detectable depending on cable) | USB |
Tracking speed | Maximum 1,016 m/sec |
Power supply voltage | 5VDC ± 0.25V |
Current rating (active mode) | < 10 mA |
G.W. | ≈0.80KGs |
ELECTRICAL DATA | |
Supply Voltage | DC +5V±5% |
Current Rating | 30mA when backlight is off, 300mA with backlight on |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Interface | USB |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -40℃ to +75℃ |
Storage temperature | -45℃ to +85℃ |
Operating RH | 3%~95% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY | |
RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
Protection Level | IP65 dynamic (front panel) |
Key Lifespan | >5 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |

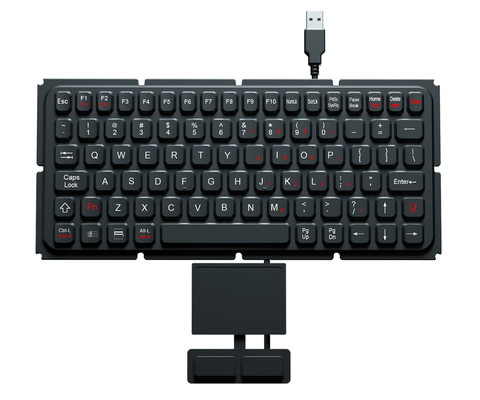

Front View For Silicone Industrial Keyboard

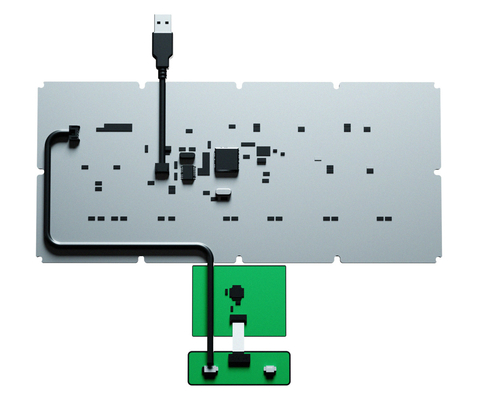

Back View For Silicone Industrial Keyboard
