IP65 Vandal Proof Trackball Pointing Device 50mm Removable Laser Trackball
Product Description:
Trackball Pointing Device
IP65 dynamic vandal proof trackball with IP68 rated washable 50.0mm removable laser trackball module with black hardened black resin ball with 1200DPI resolutions, with sealed 3 metal mouse buttons for left and right clicking, middle scrolling button with ball rolling, 1.5 mm top stainless steel plate with threaded bolts for top panel mounting solution, high quality durable black titanium electroplated on the top stainless steel plate optional. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.
Dimension: 110.0mm x 126mm (top panel)
Technical Parameters:
| MECHANICAL DATA |
| Keys |
3 keys |
| Key travel |
1.40mm |
| Actuation Force |
2.5N±0.2N |
| Trackball |
50mm removable laser trackball with +1200DPI resolutions |
| Trackball lifespan |
> 2 millions scrolling |
| G.W. |
0.50KGs |
| ELECTRICAL DATA |
| Supply Voltage |
DC +5V±5% |
| Current Rating |
80mA |
| EMC Standard |
EN 55032:2015, EN 55035:2017 |
| Lifespan |
> 5 years |
| Interface |
USB |
| OS |
All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY |
| Operating temperature |
-20℃ to +65℃ |
| Storage temperature |
-30℃ to +75℃ |
| Operating RH |
3%~95% |
| Atmospheric pressure |
60-106Kpa |
| Saline mist |
96 hours, IEC 60512-6 |
| Damp heat test at +40℃ |
21 days, IEC 60512-6 |
| Dry heat test at +85℃ |
10 days, IEC 60512-6 |
| RELIABILITY |
| RoHS, CE, FCC, ESD |
| Protection Level |
IP65 dynamic (front panel) |
| Key Lifespan |
>1 million actuations |
| MTBF |
>20000H |
| MTTR |
<30min |
| APPLICATION |
Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
Packing and Shipping:
The Trackball Pointing Device is carefully packaged to ensure safe and secure delivery to our customers.
The packaging process includes the following steps:
- The device is first placed in a protective foam layer to prevent any damage during transportation.
- Next, the foam layer is placed in a sturdy cardboard box, which is designed to withstand the rigors of shipping.
- The box is sealed with tape and labeled with the necessary shipping information, including the recipient's address and tracking number.
- For international shipments, the necessary customs forms and documentation are also included.
Once the packaging process is complete, the device is ready to be shipped to its destination. We offer various shipping options to meet our customers' needs, including standard and expedited shipping.
Our shipping team takes great care in handling and ensuring the safe delivery of each package. However, in the rare event that any damage occurs during shipping, our product is covered by a warranty and can be replaced or repaired at no additional cost to the customer.
Thank you for choosing our Trackball Pointing Device. We are committed to providing a high-quality product and ensuring it reaches you in perfect condition.

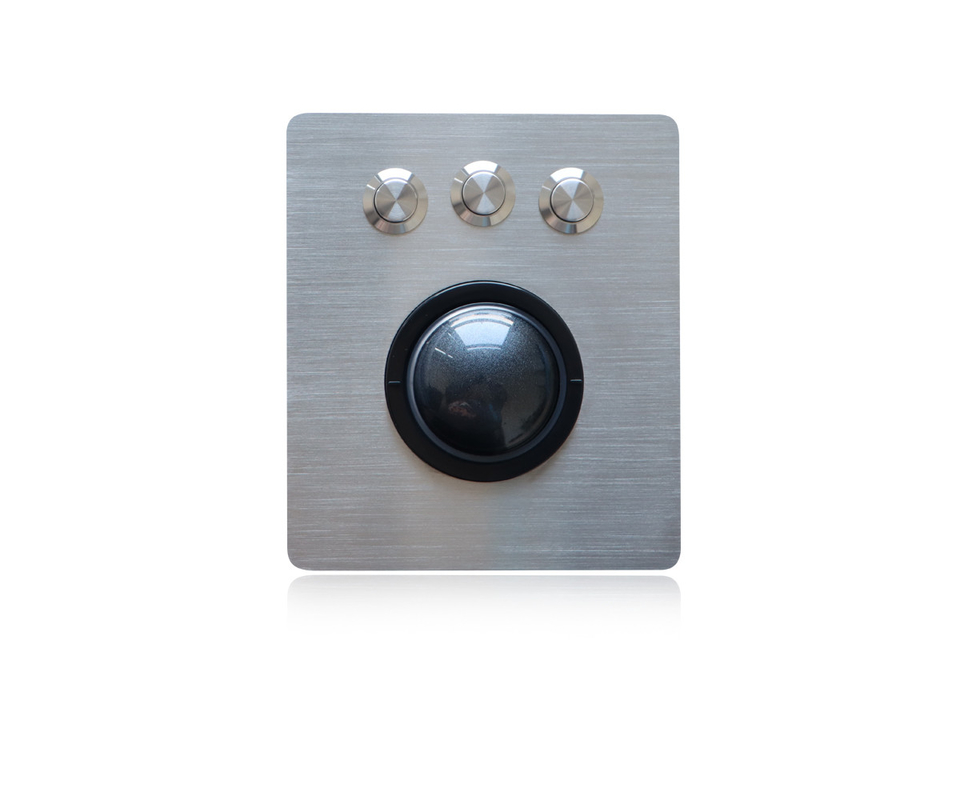

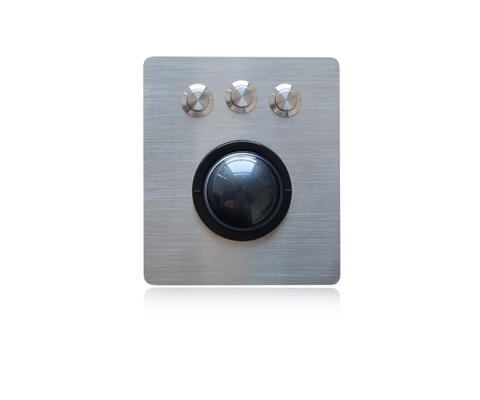

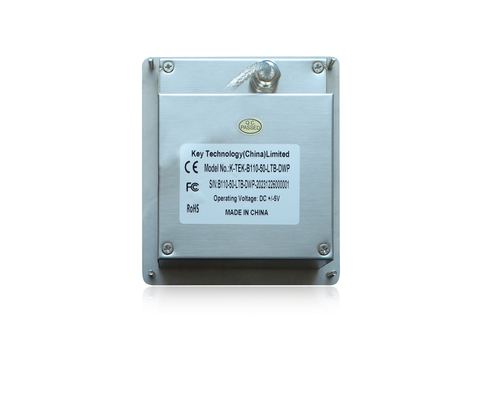

Trackball pointing device actual photo
