IP65 Rugged Industrial Metal Keyboard Wall Mount Kiosk Keyboard With Trackball

IP65 Rugged Industrial Metal Keyboard Wall Mount Kiosk Keyboard With Trackball
IP65 Rugged Industrial Metal Keyboard Wall Mount Kiosk Keyboard With Trackball
IP65 Rugged Industrial Metal Keyboard Wall Mount Kiosk Keyboard With Trackball IP65 Rugged Industrial Metal Keyboard Wall Mount Kiosk Keyboard With Trackball IP65 Rugged Industrial Metal Keyboard Wall Mount Kiosk Keyboard With Trackball

Large Image :  IP65 Rugged Industrial Metal Keyboard Wall Mount Kiosk Keyboard With Trackball

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-A361-MTB-FN-MDT-DWP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month
Contact Now

IP65 Rugged Industrial Metal Keyboard Wall Mount Kiosk Keyboard With Trackball

Description
Keys: 86 Keys (including 3 Mouse Buttons) Key Travel: 1.50±0.10mm
Supply Voltage: +5V DC ± 5% Interface: PS2, USB Available
Trackball Size: 38mm Dimensions: 403.0mm X 175.0mm X 37.0mm (L X W X H)
Trackball: Mechanical Trackball Material: Stainless Steel
Name: Industrial Keyboard With Trackball
Highlight:

IP65 Industrial Metal Keyboard

,

Rugged metal kiosk keyboard

,

metal kiosk keyboard With Trackball



IP65 Rugged Industrial Metal Keyboard Wall mount Kiosk Keyboard With Trackball



DESCRIPTION: 86 keys (including 3 mouse buttons) compact format IP65 dynamic vandal proof stainless steel industrial keyboard with IP65 38.0mm stainless steel mechanical trackball module with 400 DPI resolutions for fast and accurate cursor position, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, wall mounted desktop version. FN + CLEAN combination key to lock/disable the entire keyboard for easy cleaning and washing without needing to take away the keyboard from PC. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

DIMENSION: 403.0mm x 175.0mm x 37.0mm (L x W x H)



MECHANICAL DATA
Actuator/keys 86 keys (including 3 mouse buttons)
Key top style Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key
Key travel 1.50±0.10mm
Actuation Force 1.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point)
Tracker ball 38.0mm mechanical trackball module
G.W. 3.50KGs
ELECTRICAL DATA
Supply Voltage DC +5V±5%
Current Rating 50mA
EMC Standard EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material Carbon-on-Gold key switch technology PCB
Interface PS2, USB available
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature -20℃ to +65℃
Storage temperature -30℃ to +75℃
Operating RH 30-90%
Atmospheric pressure 60-106Kpa
Saline mist 96 hours, IEC 60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level IP65
Vandal resistant IK08
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
APPLICATIONS Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

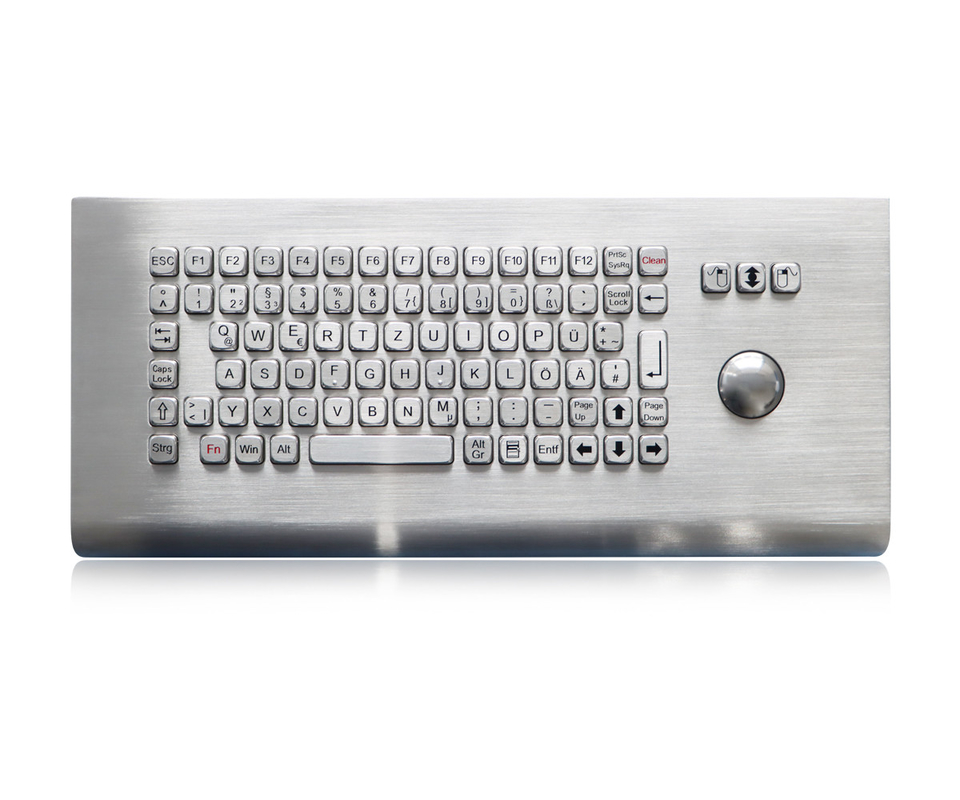

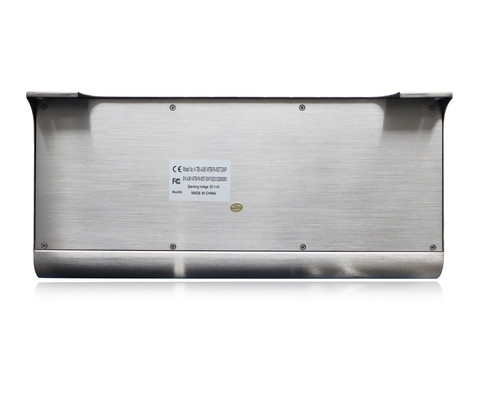

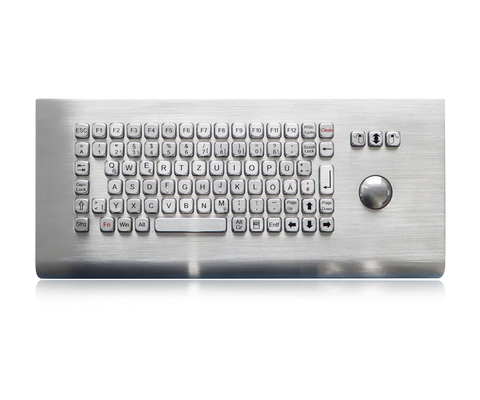

INDUSTRIAL KEYBOARD WITH TRACKBALL ACTUAL PHOTOS:

IP65 Rugged Industrial Metal Keyboard Wall Mount Kiosk Keyboard With Trackball 0

OUR COMPANY

IP65 Rugged Industrial Metal Keyboard Wall Mount Kiosk Keyboard With Trackball 1
