Product Details:
|
Material: | Stainless Steel | Keys: | 85 Keys (including 2 Mouse Buttons) |
---|---|---|---|
Key Traval: | 0.45±0.05mm | Dimension: | 361.0mm X 145.0mm X 31.5mm (L X W X H) |
Key Life Span: | More Than 1 Millions Actuations | Protection Level: | IP65 Dynamic (front Panel) |
Keyword: | Industrial Keyboard With Touchpad | Name: | IP68 Ruggedized Industrial Keyboard With Trackball Explosive Proof For Coal And Mine |
Highlight: | Mine Industrial Keyboard With Touchpad,IP68 Stainless Steel Metal Keyboard,Explosion Proof Industrial Keyboard |
DESCRIPTION FOR INDUSTRIAL KEYBOARD WITH TOUCHPAD: 85 keys compact format IP68 sealed and ruggedized dynamic waterproof, dustproof, and explosion-proof stainless steel metal special keyboard, with explosion-proof safety barrier and built-in integrated metal-dome gold PCB control module, with IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation, industrial metal dome PCB with gold-on-gold key switch technology. The overall keys are flat and no raised keys for dust accumulation, and the surface is extremely easy for cleaning and washing, with 0.45mm short stroke with excellent tactile feeling for stable and accurate data input, movable stand alone DESK TOP VERSION, or optional mountable desktop with mounting holes on the bottoms for fixing. FN+Clean combination keys to lock/disable the whole keyboard for easy cleaning without disconnecting the keyboard from PC. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
INDUSTRIAL KEYBOARD WITH TOUCHPAD DIMENSION: 361.0mm x 145.0mm x 31.5mm (L x W x H)
INDUSTRIAL KEYBOARD WITH TOUCHPAD MECHANICAL DATA | |
Actuator/keys | 85 keys(including 2 mouse buttons) |
Key top style | Non-protuberant rectangular keys, laser engraved & etched legends on keys are available |
Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar |
Key travel | 0.45±0.05mm |
Actuation Force | 3.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point) |
Front and Back Plate | Super quality brushed stainless steel |
Switch life | more than 1 million of operations |
Touch pad | sealed and ruggedized tough touchpad |
Touchpad cover | Composite |
More than Lifetime 10 million strokes | |
Mutual capacitance sensing | |
X/Y axis location detection resolution | 40 Counts /mm |
X/Y position report | relative |
Output (self-detectable depending on cable) | PS2 or USB |
Tracking speed | Maximum 1,016 m/sec |
Power supply voltage | 5VDC ± 0.25V |
Current rating (active mode) | < 10 mA |
G.W. | 2.50KGs |
INDUSTRIAL KEYBOARD WITH TOUCHPAD ELECTRICAL DATA | |
Supply Voltage | DC +5V±5% |
Current Rating | 50mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | Gold-on-Gold key switch technology PCB |
Interface | PS2, USB available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Operating RH | 3%~95% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
INDUSTRIAL KEYBOARD WITH TOUCHPAD RELIABILITY | |
RoHS Compliant, CE and FCC, ESD | |
Protection Level | IP68 |
Vandal resistant | IK09 |
Key Lifespan | >1 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATION | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |

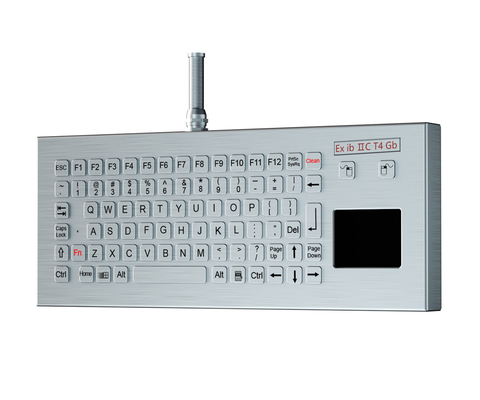

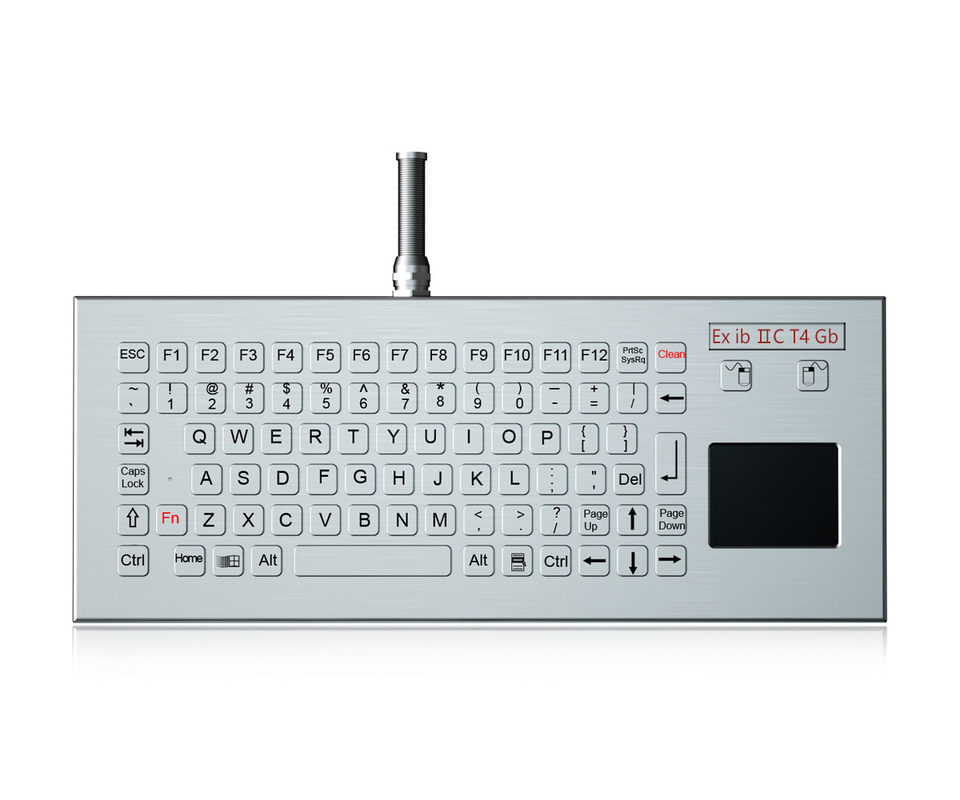

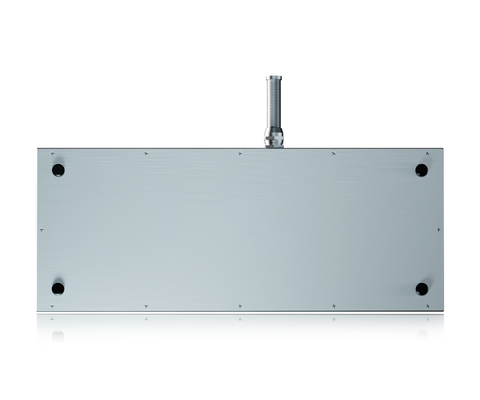

INDUSTRIAL KEYBOARD WITH TOUCHPAD ACTUAL PHOTOS
