IP65 Dynamic Vandal Proof Mechanical Trackball With PC Mouse Buttons

Large Image : IP65 Dynamic Vandal Proof Mechanical Trackball With PC Mouse Buttons

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	IKB-MKB
Certification:	CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number:	K-TEK-M70-38-MTB-BT-DWP

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	To be quoted
Packaging Details:	Each keyboard to one box, several boxes to one carton.
Delivery Time:	ASAP Within 2 weeks upon payment confirmed
Payment Terms:	Full payment in advance, Western Union, T/T, Paypal
Supply Ability:	3000psc/month

Contact Now

IP65 Dynamic Vandal Proof Mechanical Trackball With PC Mouse Buttons

Description

Dimensions:	70.0mm X 108.0mm (top Panel)	Interface:	PS2, USB Available
Material:	Stainless Steel	Mouse Button:	3 Mouse Button
Mounting Method:	Rear Panel Mount	Trackball:	38.0mm Mechanical Trackball
Keyword:	Industrial Trackball, Trackball,	Protection Level:	IP65 Dynamic (front Panel)
Name:	IP65 Dynamic Vandal Proof Mechanical Trackball With PC Mouse Buttons
Highlight:	Dynamic Vandal Proof Mechanical Trackball , PC Mouse Buttons Mechanical Trackball , Trackball Pointing Device IP65

IP65 Dynamic Vandal Proof Mechanical Trackball with PC Mouse Buttons

DESCRIPTION FOR MECHANICAL TRACKBALL : IP65 dynamic rated vandal proof mechanical trackball with durable PC mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, as well as 38.0mm black hardened resin mechanical trackball module with 400 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, high quality black titanium electroplated on stainless steel top plate for rear panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
MECHANICAL TRACKBALL DIMENSION: 70.0mm x 108.0mm (top panel)

MECHANICAL TRACKBALL MECHANICAL DATA
Keys	3 keys
Key switch	Carbon-on-gold key switch technology
Key travel	1.80mm
Actuation Force	1.8N±0.2N
Trackball	38mm black resin mechanical trackball module
Protection level	IP65
G.W.	0.5KGs
MECHANICAL TRACKBALL ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	80mA
EMC Standard	EN 55032:2015, EN 55035:2017
Lifespan	> 5 years
Interface	USB/PS2 available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Operating RH	3%~95%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
MECHANICAL TRACKBALL RELIABILITY
RoHS, CE, FCC
Protection Level	IP65
Key Lifespan	>1 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATION	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

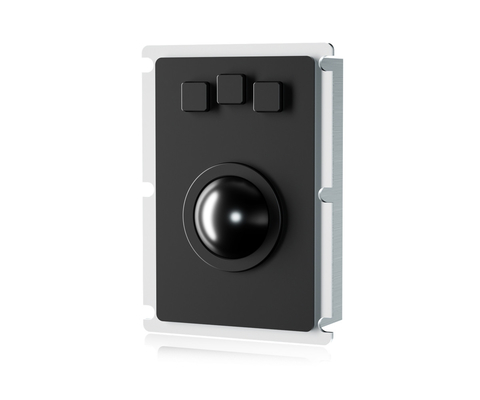

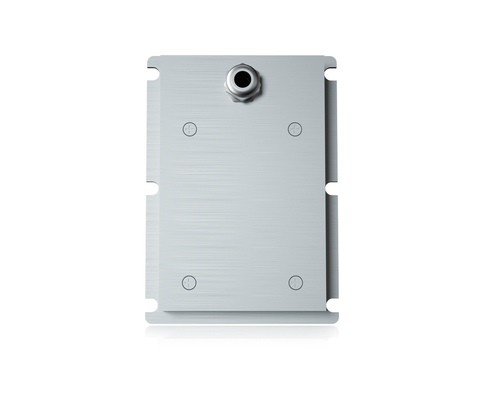

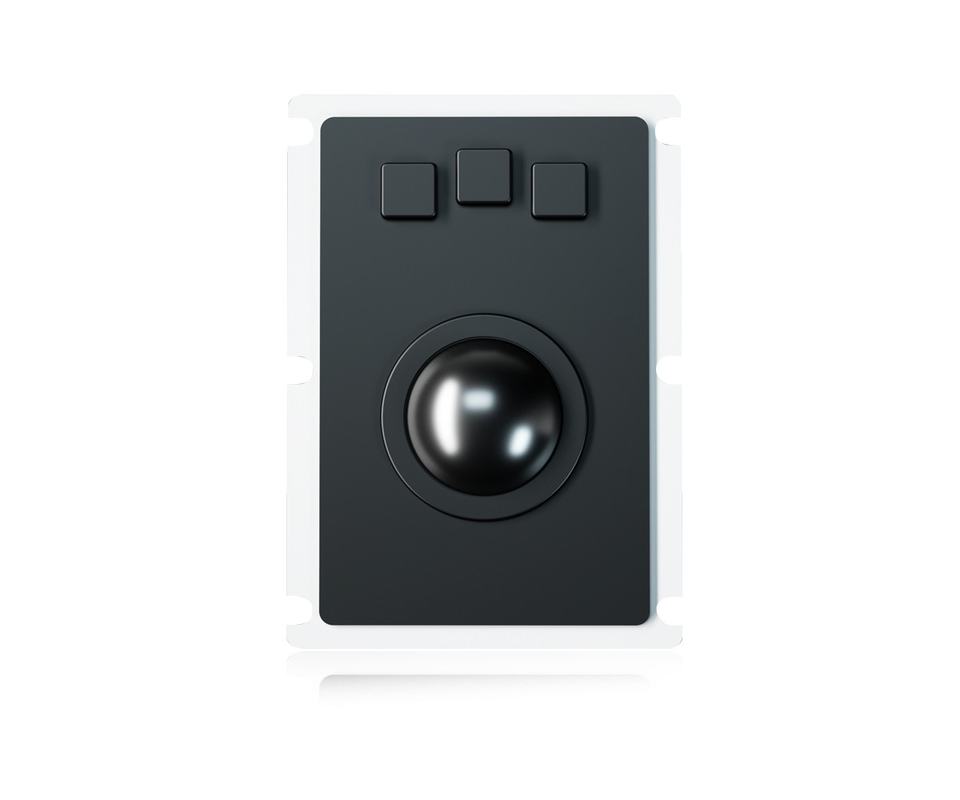

MECHANICAL TRACKBALL ACTUAL PHOTOS:
IP65 Dynamic Vandal Proof Mechanical Trackball With PC Mouse Buttons 0
