Product Details:
|
Material: | Silicone Rubber | Keys: | 69 Keys |
---|---|---|---|
Interface: | USB | Key Travel: | 1.50mm±0.10mm |
G.W.: | 0.50KGs | Name: | Rugged Silicone Keyboard |
Keyword: | Rugged Keyboard, Keyboard With Touchpad | Key Switch: | Carbon-on-gold Key Switch Technology |
Protection Level: | IP65 | ||
Highlight: | Embedded Silicone Rugged Keyboard,87 Keys Silicone Rubber Keyboard,Military Grade Silicone Rubber Keyboard |
DESCRIPTION: 87 keys IP65 dynamic sealed and durable embedded silicone rubber rugged keyboard, with built-in military grade PCB, 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, key size of 15.0mm*14.5mm for easy operation without mis-typing, also ideal for users who wear gloves, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable the whole keyboard without needing to take away the keyboard from PC, rear panel mounted solution and adjustable white backlight included, with a reinforced and rugged metal back plate for better shielding function and positioning of the rugged cable outlet. Built to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, fungus etc.), which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
DIMENSION: 302.0mm x 121.0mm (Front panel)
MECHANICAL DATA | |
Keys | 87 keys |
Switch Contact Material | Carbon-on-gold key switch technology |
Key Top Style | Protuberant rectangular keys with tactile feeling |
Key Travel | 1.50mm±0.10mm |
Key Size | 15.0mm*14.5mm for normal keys, 12.0mm*12.0mm for function keys on upper line |
Actuation Force | 1.5N±0.2N (pressure point ) |
G.W. | 0.80KGs |
ELECTRICAL DATA | |
Supply Voltage | DC +5V±5% |
Current Rating | 30mA when backlight is off, 300mA with backlight on |
EMC Standsrd | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Interface | USB |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -40℃ to +75℃ |
Storage temperature | -45℃ to +85℃ |
Operating RH | 3%~95% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY | |
RoHS compliant, CE and FCC certified, MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, fungus etc.), | |
Protection Level | IP65 dynamic (front panel) |
Key Lifespan | >5 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |

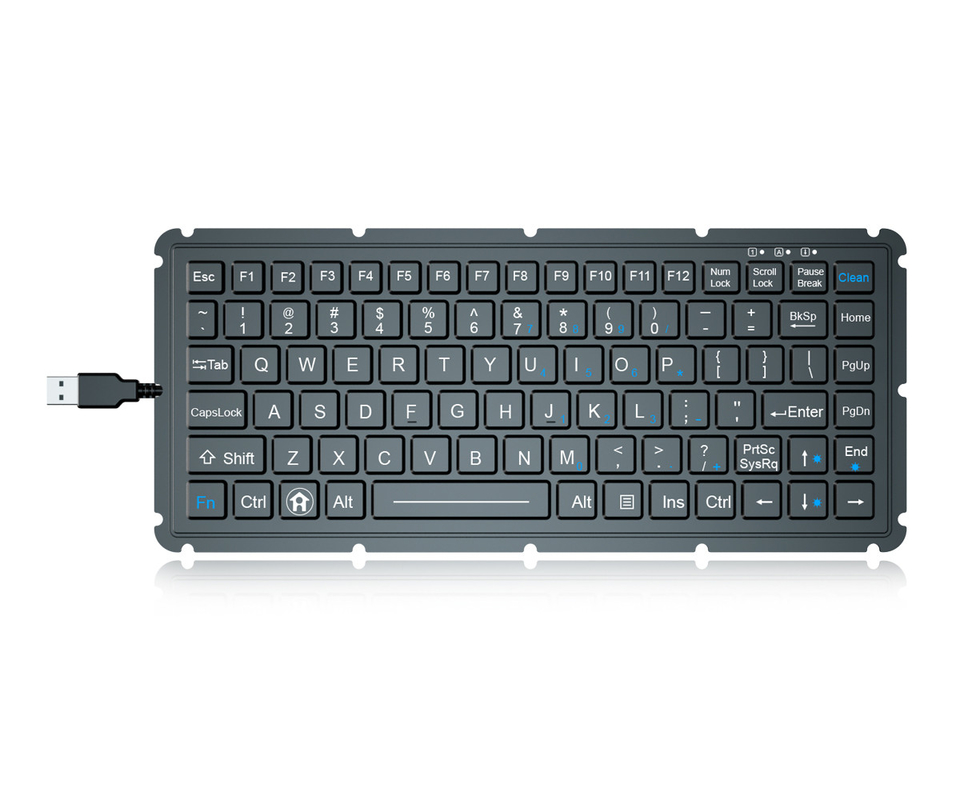

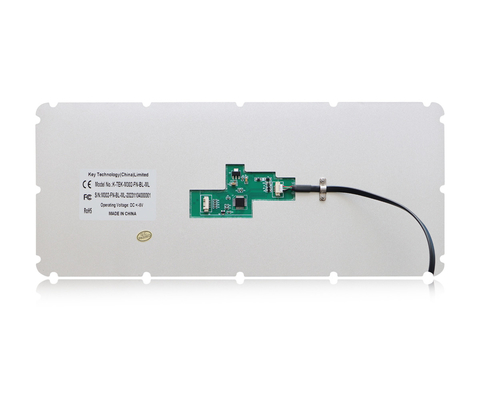

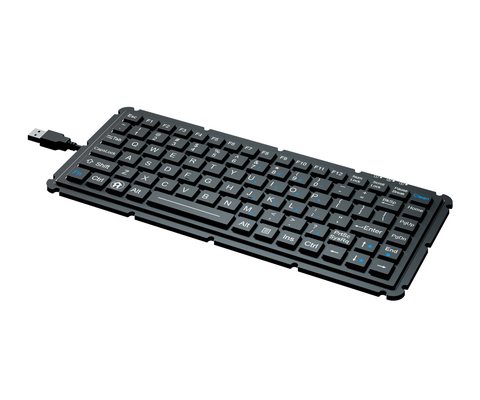

ACTUAL PHOTOS
