IP68 Waterproof Industrial Keyboard With Touchpad For Outdoor Use

Large Image : IP68 Waterproof Industrial Keyboard With Touchpad For Outdoor Use

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	IKB-MKB
Certification:	CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number:	K-TEK-A370TP-FN-SDT-DWP

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	To be quoted
Packaging Details:	Each keyboard to one box, several boxes to one carton.
Delivery Time:	ASAP Within 2-3 weeks upon payment confirmed
Payment Terms:	Full payment in advance, Western Union, T/T, Paypal
Supply Ability:	3000psc/month

Contact Now

IP68 Waterproof Industrial Keyboard With Touchpad For Outdoor Use

Description

Material:	Brushed SUS304	Keys:	85 Keys (including 2 Mouse Buttons)
Interface:	PS2, USB Available	Key Travel:	1.50mm±0.10mm
G.W.:	3.50KGs	Name:	Stainless Steel Keyboard
Keyword:	Metal Keyboard, Industrial Touchpad Keyboard, Keyboard With Touchpad, Rugged Keyboard	Dimension:	370.0mm X 171.0mm X 31.0mm (L X W X H)
Key Switch:	Carbon-on-gold Key Switch	Protection Level:	IP68
Highlight:	Waterproof Industrial Keyboard With Touchpad , IP68 Industrial Keyboard With Touchpad , Outdoor Keyboard With Touchpad

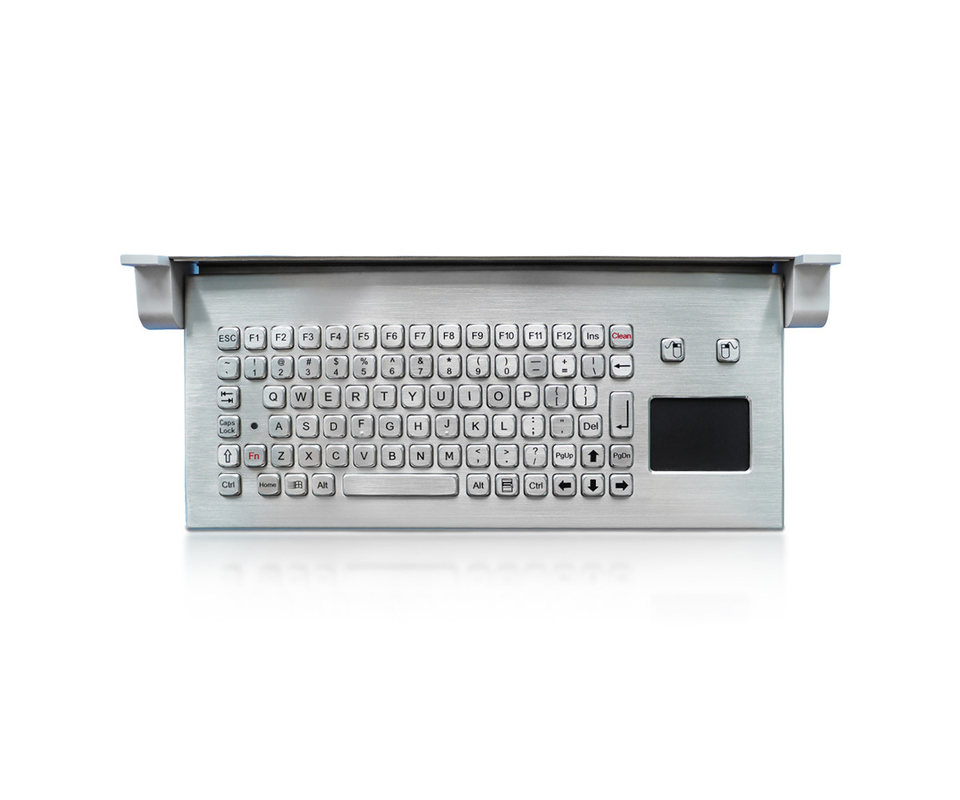

Stainless Steel Keyboard With Touchpad

DESCRIPTION: 85 keys compact format IP68 dynamic vandal proof stainless steel industrial keyboard with sealed & ruggedized IP65 tough touch pad with scroll function (optional) for fast and accurate cursor position, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50±0.10mm) with excellent tactile feeling for fast and accurate data input, foldable keyboard with rotating shaft for wall-mountable solution, with 96°angles for rotation. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 370.0mm x 171.0mm x 31.0mm (L x W x H)

IP68 Waterproof Industrial Keyboard With Touchpad For Outdoor Use 0

MECHANICAL DATA
Actuator/keys	85 keys (Including two mouse buttons)
Key top style	Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size	14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
Key travel	1.50±0.10mm
Actuation Force	1.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point)
Switch life	more than 5 million of operations
Front and Back Plate	Super quality SUS304 brushed stainless steel
Touch pad	sealed and ruggedized tough touchpad
Touchpad cover	Composite
More than Lifetime 10 million strokes
Mutual capacitance sensing
X/Y axis location detection resolution	40 Counts /mm
X/Y position report	relative
Output (self-detectable depending on cable)	PS2 or USB
Tracking speed	Maximum 1,016 m/sec
Power supply voltage	5VDC ± 0.25V
Current rating (active mode)	< 10 mA
G.W.	3.5KGs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	50mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Switch Contact Material	Carbon-on-Gold key switch technology PCB
Interface	PS2, USB available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Operating RH	30-90%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level	IP68
Vandal resistant	IK08
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

KEY TECHNOLOGY (CHINA) LIMITED

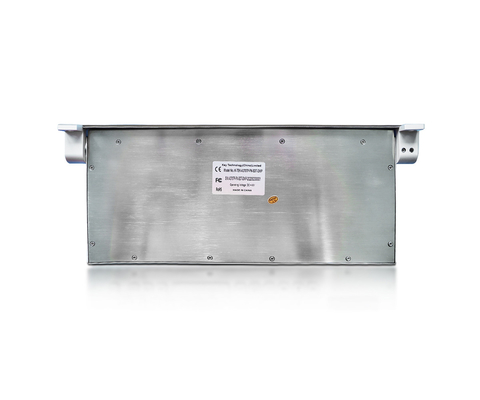

IP68 Waterproof Industrial Keyboard With Touchpad For Outdoor Use 1
