Product Details:
|
Material: | Silicone Rubber | Connection: | USB / PS2 |
---|---|---|---|
Application: | Industrial | FN Keys: | Yes |
Color: | Black | G.W.: | 1.00KGs |
Name: | Desktop Silicone Medical Keyboard | Backlight: | White |
Highlight: | hygienic silicone industrial keyboard,full functionalities silicone industrial keyboard,usb industrial grade silicone keyboard |

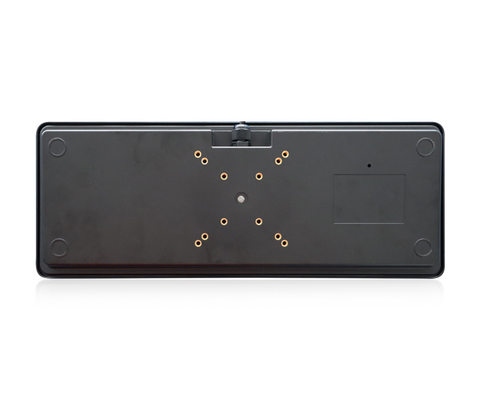

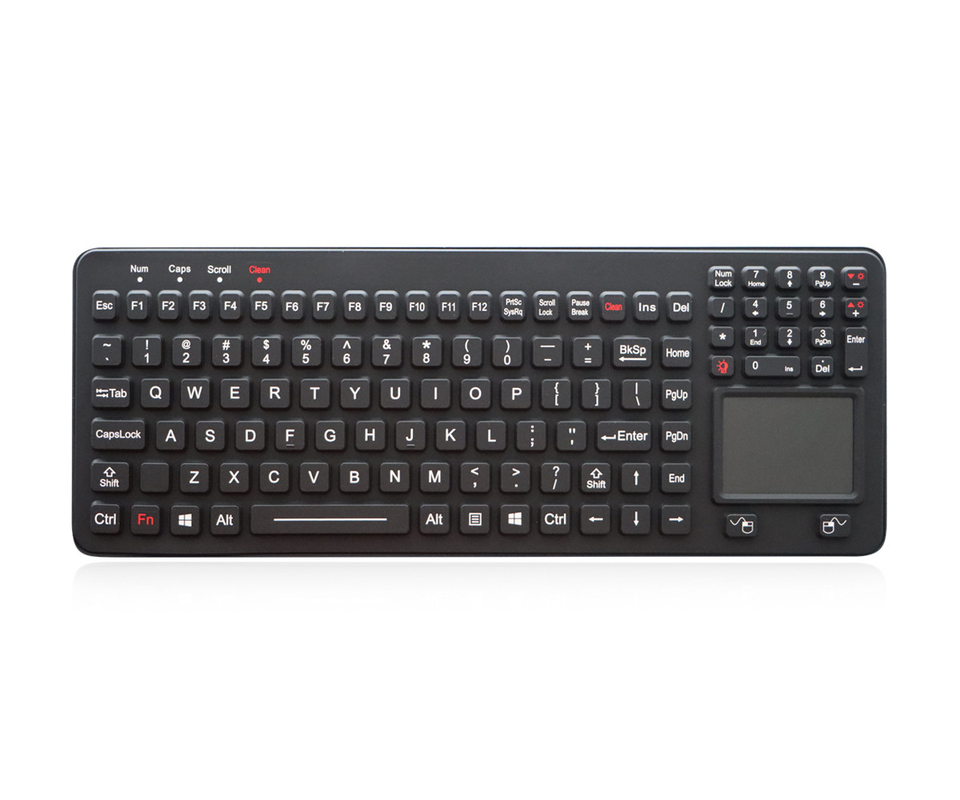

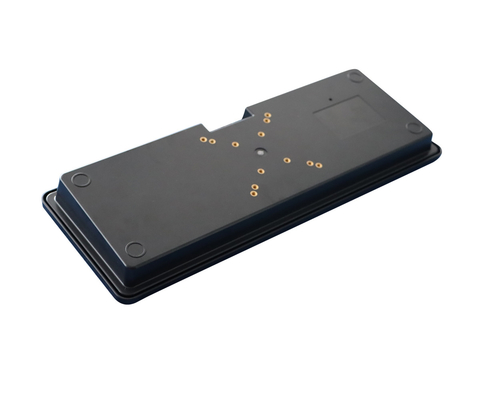

DESCRIPTION: 110 keys IP68 dynamic waterproof sealed & ruggedized industrial silicone rubber Hygienic keyboard with full keyboard functionalities, with sealed & ruggedized tough touchpad for fast and accurate cursor position, integrated numeric keypad and 12 FN keys (F1, F2...F11, F12), industrial PCB with carbon-on-gold key switch technology with key stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning without disconnecting the keyboard and computer, mountable desk top version with robust polycarbonate case with VESA and AMPS mounting holes on the backside. 4 level adjustable industrial white backlight included to fit for dim or dark environment, industrial level.
DIMENSIONS: 366.00mm x 136.00mm x 28.17~36.82mm (L x W x H)
MECHANICAL DATA | |
Keys | 110 keys (including 2 mouse buttons) |
Key top style | Protuberant rectangular keys with tactile feeling |
Key Size | 13.0mm x 13.0mm for normal keys |
Key travel | 1.50mm±0.10mm |
Actuation Force | 1.5N±0.2N (pressure point ) |
Switch life | more than 5 million of operations |
Touch pad | sealed and ruggedized tough touchpad |
Touchpad cover | Composite |
More than Lifetime 10 million strokes | |
Mutual capacitance sensing | |
X/Y axis location detection resolution | 40 Counts /mm |
X/Y position report | relative |
Output (self-detectable depending on cable) | PS2 or USB |
Tracking speed | Maximum 1,016 m/sec |
Power supply voltage | 5VDC ± 0.25V |
Current rating (active mode) | < 10 mA |
G.W. | ≈0.80KGs |
ELECTRICAL DATA | |
Supply Voltage | DC +5V±5% |
Current Rating | 50mA when backlight is off, 300mA with backlight on |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | Carbon-on-Gold key switch technology with gold PCB |
Interface | PS2, USB available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Operating RH | 100% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY | |
RoHS, CE, FCC | |
Protection Level | IP68 |
Key Lifespan | >5 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
