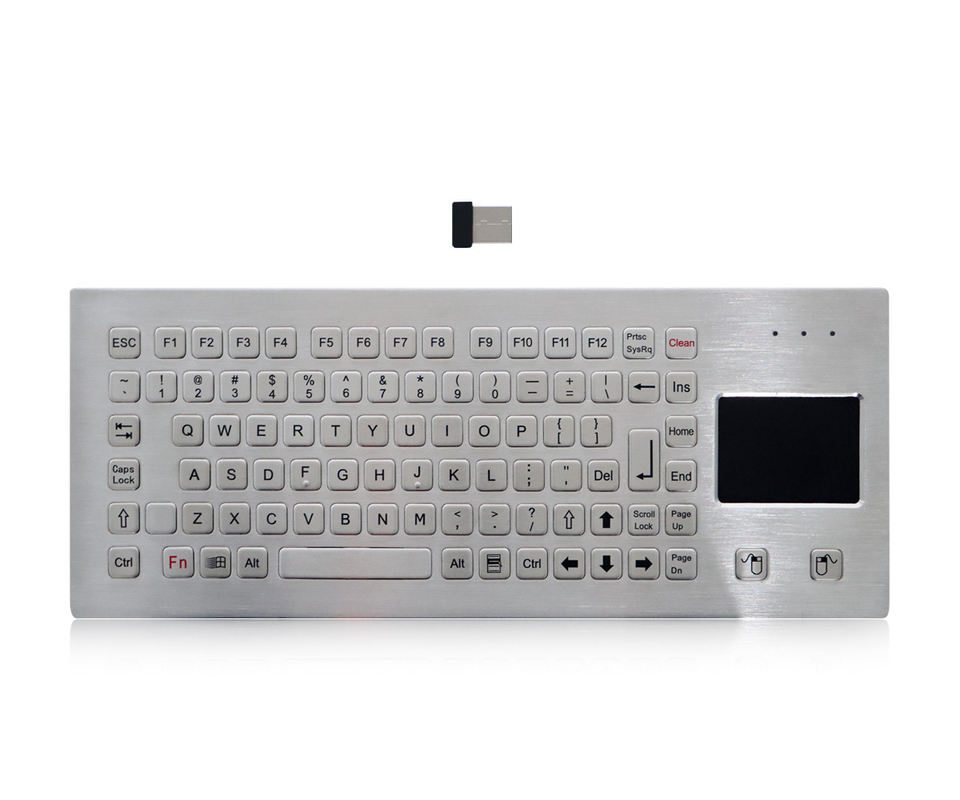

IP65 Metal Industrial 2.4G Wireless Keyboard With Touchpad Desktop Version

IP65 Metal Industrial 2.4G Wireless Keyboard With Touchpad Desktop Version
IP65 Metal Industrial 2.4G Wireless Keyboard With Touchpad Desktop Version IP65 Metal Industrial 2.4G Wireless Keyboard With Touchpad Desktop Version

Large Image :  IP65 Metal Industrial 2.4G Wireless Keyboard With Touchpad Desktop Version

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-B380TP-FN-DT-DWP-2.4G
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month
Contact Now

IP65 Metal Industrial 2.4G Wireless Keyboard With Touchpad Desktop Version

Description
Material: Stainless Steel Keys: 90 Keys (including 2 Mouse Buttons)
Key Travel: 0.45±0.05mm Interface: PS2, USB
Touchpad: Composite Dimensions: 380.0mm X 155.0mm X 32.5mm (L X W X H)
Name: Wireless Keyboard
Highlight:

Industrial 2.4G Wireless Keyboard

,

IP65 Metal 2.4G Wireless Keyboard

 IP65 Metal Industrial 2.4G Wireless Keyboard With Touchpad Desktop Version


2.4G WIRELESS KEYBOARD

Main Features: 90 keys compact format IP65 sealed and ruggedized waterproof vandal proof 2.4G wireless stainless steel industrial keyboard with one receiver for signal transmit up to 10 meters. IP65 dynamic sealed & ruggedized tough touchpad for fast and accurate cursor position, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation, industrial PCB with gold-on-gold key switch technology with short stroke (0.45mm±0.05mm) with excellent tactile feeling for fast and accurate data input, movable stand alone DESK TOP VERSION. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 380.0mm x 155.0mm x 32.5mm (L x W x H)



MECHANICAL DATA
Actuator/keys 90 keys (including 2 mouse buttons)
Key top style Non-protuberant rectangular keys, laser engraved & etched legends on keys are available
Key Size 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
Key travel 0.45±0.05mm
Actuation Force

3.5N±0.2N for key 14.0mm x 14.0mm (pressure point )

7.0N±0.4N for key 14.0mm x 28.0mm (pressure point)
Switch life more than 1 million of operations
Touch pad sealed and ruggedized tough touchpad
Touchpad cover Composite
More than Lifetime 10 million strokes
Mutual capacitance sensing
X/Y axis location detection resolution 40 Counts /mm
X/Y position report relative
Output (self-detectable depending on cable) PS2 or USB
Tracking speed Maximum 1,016 m/sec
Power supply voltage 5VDC ± 0.25V
Current rating (active mode) < 10 mA
G.W. ≈3.0KGs
ELECTRICAL DATA
Supply Voltage +5V DC ± 5%
Current Rating 50mA
EMC Standard EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material Gold-on-Gold key switch technology PCB
Interface 2.4Ghz wireless, with 1 USB receiver
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature -20℃ to +65℃
Storage temperature -30℃ to +75℃
Operating RH 30-90%
Atmospheric pressure 60-106Kpa
Saline mist 96 hours, IEC 60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level IP65
Vandal resistant IK09
Key Lifespan >1 million actuations
MTBF >20000H
MTTR <30min
APPLICATIONS Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

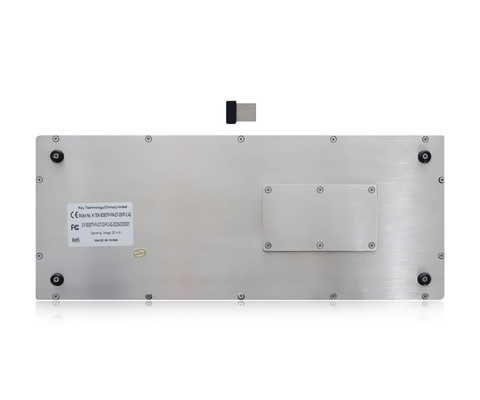

Industrial Keyboard With Touchpad Actual Photos:

IP65 Metal Industrial 2.4G Wireless Keyboard With Touchpad Desktop Version 0
OUR COMPANY
IP65 Metal Industrial 2.4G Wireless Keyboard With Touchpad Desktop Version 1
IP65 Metal Industrial 2.4G Wireless Keyboard With Touchpad Desktop Version 2
                       FAQ
                                                         www.rugged-key.com
                                                         www.key-tek.cn
                                                         www.ruggedized-keyboard.com

Q: Are you trading company or manufacturer ?

A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.

Q: How long is your delivery time?

A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.



Q: Do you provide samples ?

A: Yes, we could offer the sample of one quantity first before large quantity orders.



Q: What is your terms of payment ?

A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
If you have another question, pls feel free to contact us.



IP65 Metal Industrial 2.4G Wireless Keyboard With Touchpad Desktop Version 3
