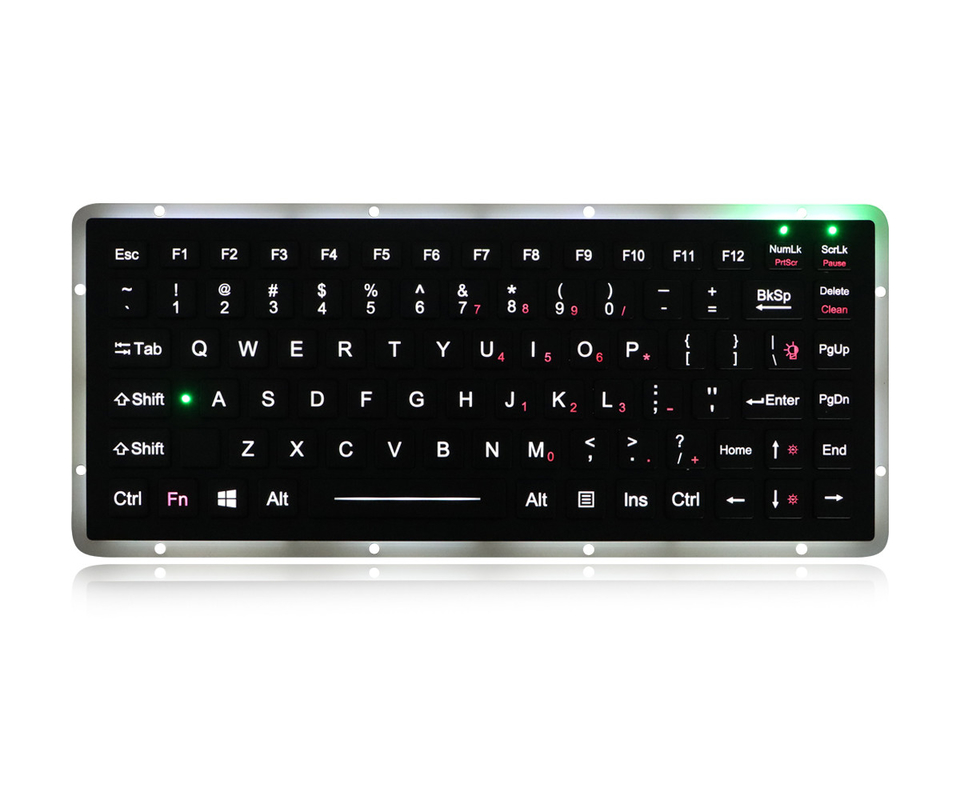

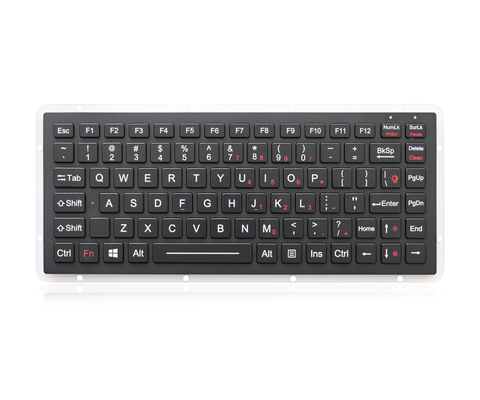

Durable Embedded Military EMC Keyboard With Polymer Keys

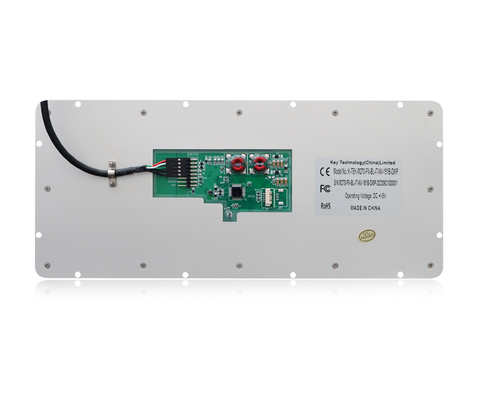

DESCRIPTION: 86 keys IP65 dynamic waterproof sealed and rugged durable embedded military keyboard with polymer keys, with built-in military grade PCB, 12 function keys(F1, F2, ... F12) on the top line for easy operation, which is made of CNC aluminum alloy front plate + PC keycaps + carbon contact as well as military grade PCB, with carbon-on-gold key switch technology with 1.20mm key travel with extremely good tactile feeling for fast and accurate data input without any noise. One complete silicone rubber along the top panel for easy mounting & sealing tightly with cabinet, rear panel with through-hole for easy mounting and sealing. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC and avoid mis-operation or mistyping. Adjustable white backlight included, meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

DIMENSIONS: 270.0mm x 110.0mm (L x W)



MECHANICAL DATA
Key	86 keys, durable and robust polymer keys
Key top style	Protuberant rectangular keys with tactile feeling
Key technology	Military PCB with carbon-on-gold key switch technology
Key size	14.0mm x 10.0mm for FN keys, 14.0mm x 14.0mm for normal keys, 21.8mm x 14.0mm for Tab key, 68.0mm x 14.0mm for Space bar
Key travel	1.20mm±0.10mm
Actuation Force	1.0N±0.2N for normal keys and 1.5N±0.2N for Enter/Backspace/Shift/Capslock/Tab etc. keys
Switch life	more than 5 million of operations.
G.W.	≈0.70kgs
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	30mA when backlight is off, 300mA with backlight on
Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc.:
1	CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads
2	CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads
3	CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads
4	CS106 Conducted Susceptibility, Transients, Power Leads
5	CS112 Electrostatic Discharge Susceptibility
6	CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
7	CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
8	CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
9	RE101 25Hz -100kHz Radiated Emissions, Magnetic Field
10	RE102 10kHz - 18GHz Radiated Emissions, Electric Field
11	RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field
12	RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field
MIL-STD-810F (wide temperature, shock, vibration, humidity).
Lifespan	> 5 years
Interface	USB/PS2 optional
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-40℃ to +75℃
Storage temperature	-45℃ to +85℃
Saline mist	96h, IEC60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
Humidity	100%
Atmospheric pressure	60-106Kpa
RELIABILITY
RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
Protection Level	IP65 dynamic (front panel)
Vandal resistant	IK09
Key Lifespan	>5 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.



KEY TECHNOLOGY CHINA LIMITED
