IP65 Industrial Membrane Keyboard Washable Medical Touchpad Keyboard

Large Image : IP65 Industrial Membrane Keyboard Washable Medical Touchpad Keyboard

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	IKB-MKB
Certification:	CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number:	K-TEK-D392TP-KP

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	To be quoted
Packaging Details:	Each keyboard to one box, several boxes to one carton.
Delivery Time:	ASAP Within 2-3 weeks upon payment confirmed
Payment Terms:	Full payment in advance, Western Union, T/T, Paypal
Supply Ability:	3000psc/month

Contact Now

IP65 Industrial Membrane Keyboard Washable Medical Touchpad Keyboard

Description

Application:	Industrial/medical	Material:	Membrane
Dimensions:	392.0mm X 110.0mm (top Panel)	Backlight:	No
Color:	White	Washable:	Yes
Key:	83 Keys (including 2 Mouse Buttons)	Qty:	1 Pieces
Name:	Medical Keyboard
Highlight:	Industrial Membrane Keyboard , FCC Industrial Membrane Keyboard , IP65 Washable Medical Keyboard

IP65 Industrial Membrane Keyboard Washable Medical Touchpad

Industrial Membrane Keyboard With Touchpad Washable Medical Keyboard

DESCRIPTION: 83 keys compact format IP65 dynamic rated membrane industrial keyboard with integrated numeric keypad, with IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, industrial metal dome PCB with gold-on-gold metal dome key switch technology with short stroke 0.45mm±0.05mm with extremely good tactile feeling for reliable data input, rear panel mount solution with mounting holes, with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments.

INDUSTRIAL KEYBOARD DIMENSIONS: 392.0mm x 110.0mm (top panel)

MECHANICAL DATA
Number of Keys	83 keys (including 2 mouse buttons)
Key switch Technology	metal dome PCB with gold-on-gold metal dome key switch technology
Actuation Force	3.5N±0.2N (press point)
Key Travel	0.45mm ± 0.05mm
Key switch Lifetime	1 mil. operations
Mounting Type	rear panel mounting.
G.W.	1.50KGs
Touch pad	sealed and ruggedized tough touchpad
Touchpad cover	Composite
Method	capacitive
More than Lifetime 10 million strokes
Mutual capacitance sensing
X/Y axis location detection resolution	40 Counts /mm
X/Y position report	relative
Output (self-detectable depending on cable)	PS2 or USB
Tracking speed	Maximum 1,016 m/sec
Power supply voltage	5VDC ± 0.25V
Current rating (active mode)	< 10 mA
MEMBRANE KEYBOARD ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	50mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Interface	PS2, USB available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Operating RH	100%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
MEDICAL KEYBOARD RELIABILITY
RoHS, CE, FCC
Protection Level	IP65 dynamic (front panel)
Key Lifespan	>1 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATION	Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.

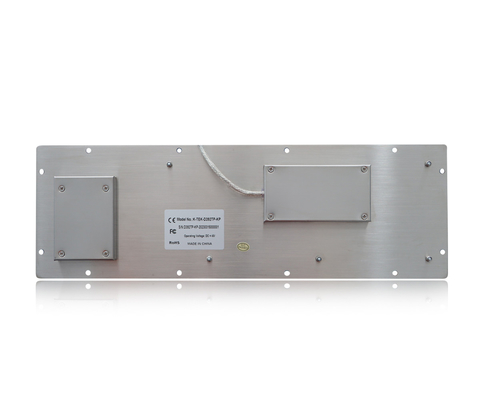

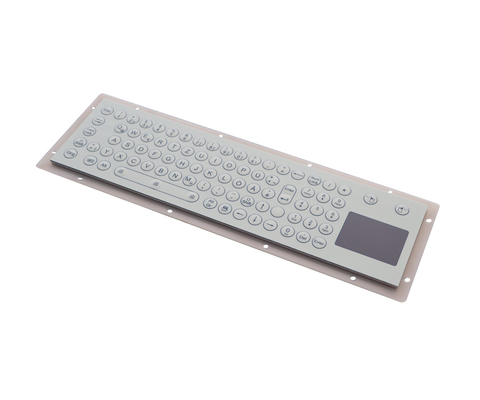

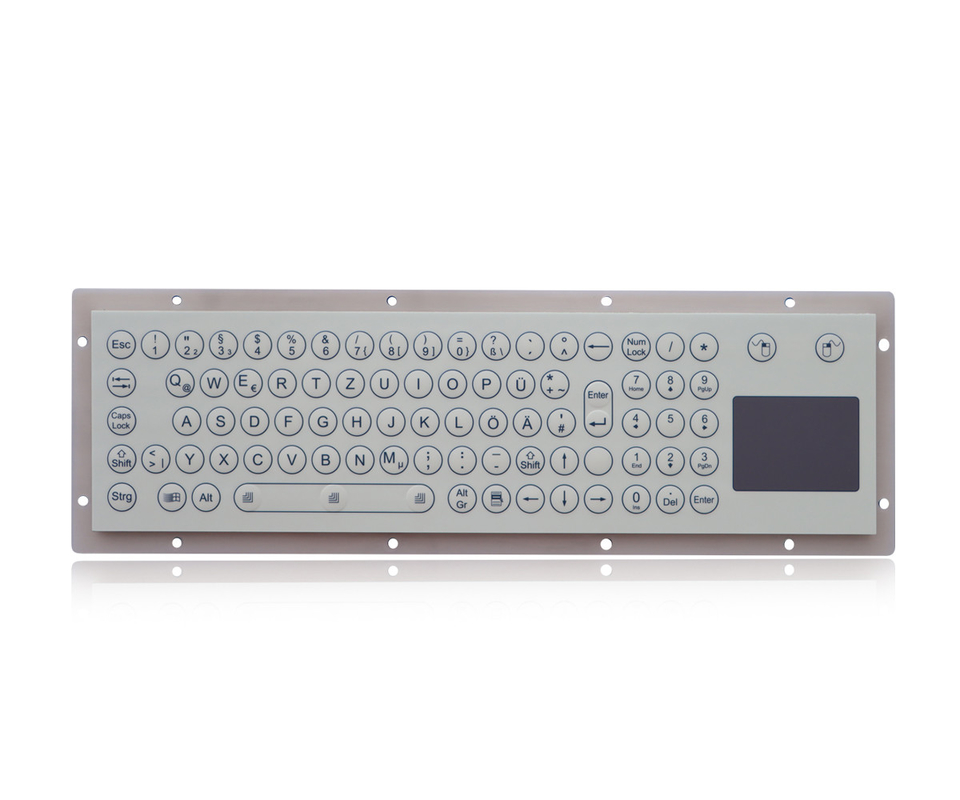

ACTUAL PHOTOS

IP65 Industrial Membrane Keyboard Washable Medical Touchpad Keyboard 0

IP65 Industrial Membrane Keyboard Washable Medical Touchpad Keyboard 1
