Medical Washable Rubber Silicone Industrial Keyboard With Touchpad

Medical Washable Rubber Silicone Industrial Keyboard With Touchpad
Medical Washable Rubber Silicone Industrial Keyboard With Touchpad Medical Washable Rubber Silicone Industrial Keyboard With Touchpad Medical Washable Rubber Silicone Industrial Keyboard With Touchpad

Large Image :  Medical Washable Rubber Silicone Industrial Keyboard With Touchpad

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-M369TP-KP-FN-DT
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month
Contact Now

Medical Washable Rubber Silicone Industrial Keyboard With Touchpad

Description
Mouse: Touchpad Color: Black/white
Material: Silicone Rubber Application: Industrial
Interface: USB/PS2
Highlight:

ruggedized Silicone Industrial Keyboard

,

Silicone Industrial Keyboard 124 keys

,

Washable Silicone Keyboard With Touchpad

Medical Washable Rubber Silicone Industrial Keyboard With Touchpad



DESCRIPTION:124 keys IP68 dynamic sealed & ruggedized industrial silicone rubber contamination-proof keyboard with full keyboard functionalities with FN (F1, F2...F23, F24) on upper line, integrated numeric keypad, sealed & ruggedized tough touchpad for fast and accurate cursor position, gold-finnish PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, this washable keyboard is an ideal solution to withstand to most chemicals and liquids under harsh environment, standard alone desk top version. Standard US office layout. With special button for power-off or power-on the entire keyboard without needing to take out the USB cable from PC USB port, which avoid to be with mis-operation during cleaning the keyboards.

DIMENSIONS: 369.0mm x 136.5mm x 10.5mm (L x W x H)

MAIN FEATURE:
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust,
dirt, grease and corrosive liquids, which means it can withstand directed hose water, disinfectants, environmental
contaminants and heavy industrial use.
With firm tactile key feel, key travel 1.50mm key travel.
Actuation Force: Square key: 1.2N+/-0.1N Rectangular key: 2N+/-0.1N
Integrated touchpad.
Integrated numeric keypad.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Enclosure: industrial silicone.
Low-profile keys for easy cleaning
Key life: 5 millions

MECHANICAL DATA
Key: 124 keys
Key top style: Protuberant rectangular keys with tactile feeling.
Touchpad cover: Composite
More than Lifetime 10 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative
Output (self-detectable depending on cable): PS2 or USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5V DC ± 0.25V
Current rating (active mode): 17 mA
G.W.: 0.80KGs
Dimensions: 369.0mm x 136.5mm x 10.5mm (L x W x H)



ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: 50mA
EMC Standard: EN 55032:2015
EN 55035:2017
Lifespan> 5 years
Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
Interface: PS2, USB available.
Cable length: Standard 2.0m, customized length available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20℃ to +60℃
Storage temperature: :-30℃ to +70℃
Saline mist:96h, IEC60512-6
Damp heat test at +40℃: 21 days, IEC 60512-6
Dry heat test at +85℃: 10 days, IEC 60512-6
Operating RH: 100%
PRINTED CIRCUIT BOARD: 94 V-0 SILICONE OVERLAY: 94 HB INTERFACE CABLE: 94 HB



RELIABILITY
RoHS , CE, FCC
Protection Level: IP68
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min

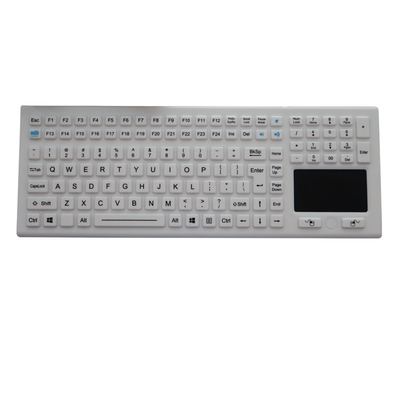

Front View:

Medical Washable Rubber Silicone Industrial Keyboard With Touchpad 0

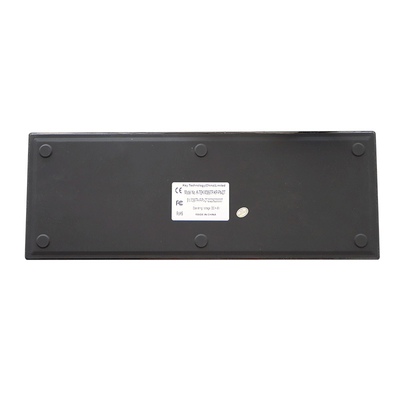

Back View:

Medical Washable Rubber Silicone Industrial Keyboard With Touchpad 1

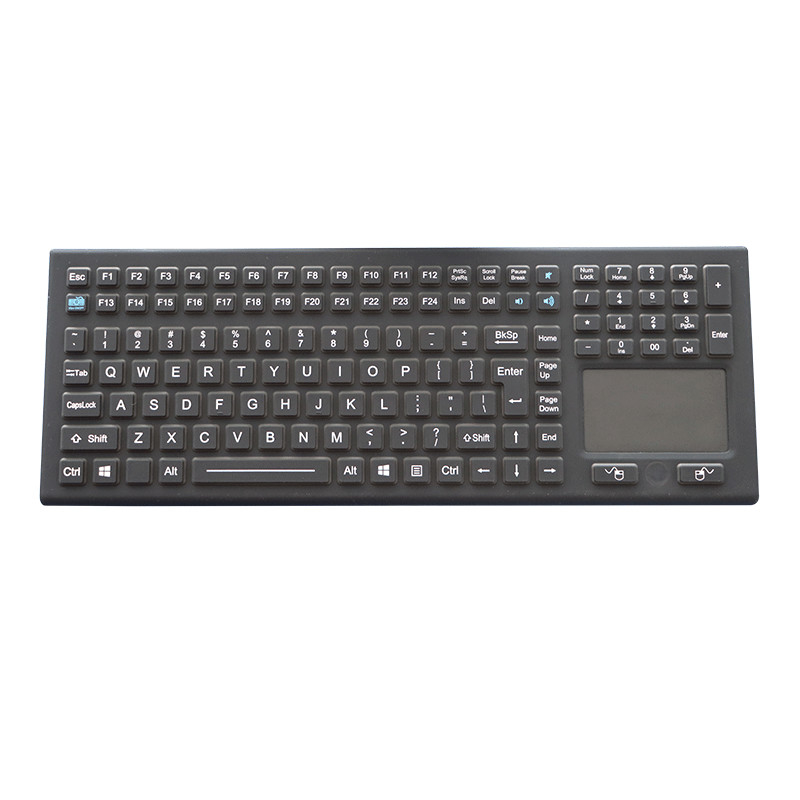

Medical Washable Rubber Silicone Industrial Keyboard With Touchpad 2Medical Washable Rubber Silicone Industrial Keyboard With Touchpad 3
