89 Keys Rugged EMC Keyboard With Backlight Desktop Version Military Rubber Keyboard
DESCRIPTION:
89 keys IP68 dynamic sealed and ruggedized silicone rubber military keyboard with sealed and tough touch pad for fast and accurate cursor position, 12 FN keys (F1, F2...F11, F12) are on top line for easy operation, the overall key layout is compact, with military PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, flat movable desk top solution with VESA mounting holes on backside, with adjustable red backlight included. FN+CLEAN combination key to lock/disable the whole keyboard for easy cleaning without disconnecting the keyboard from computer. Designed to meet with military requirements of strong anti interference, stability, low radiation etc, and MIL-STD-461G and MIL-STD-810F, wide temperature of -40°C to +60°C.
DIMENSIONS: 295.0mm x 191.0mm (L x W) (Front panel)
Application:
This ruggedized and compact design keyboard can be good for working in low-light areas, it is also available with LED backlighting. This keyboard is ideal for below wide applications:
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipment, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments,
warehouses
| EMC KEYBOARD MECHANICAL DATA: |
| Actuator/keys: |
89 keys |
|
Key technology:
|
military grade PCB with carbon-on-gold key switch technology
|
| Key Size: |
14mm x 14mm for normal keys, 10.7mm x 14mm for function keys.
|
|
Touch pad
|
1.3mm thick PCB, containing polyester film
|
|
Lifespan
|
over 5 millions actuation
|
|
Mutual capacitance sensing:
|
|
|
X/Y axis location detection resolution
|
40 Counts /mm
|
|
X/Y position report:
|
relative
|
|
Mouse tracking speed:
|
> 1.016 m/s
|
|
Supply voltage:
|
5V ± 0.25V
|
|
Rated current
|
17 mah
|
|
Key travel :
|
1.5mm
|
| Dimensions: |
295.0mm x 191.0mm (L x W)
|
| ELECTRICAL DATA : |
| Supply Voltage: |
+5V DC +/-5% |
| Current Rating: |
80mA (non-backlight) , 300mA (with backlight on)
|
| Lifespan |
> 5 years |
| Switch Contact Material: |
Carbon-on-Gold key switch technology PCB |
| Interface: |
USB |
|
Cable length:
|
Standard 1.5 m, customized length available
|
| OS: |
All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
|
| RELIABILITY: |
| RoHS Compliant, CE and FCC, ESD |
| Protection Level: |
IP68 |
| Key Lifespan |
>5 million actuations |
| MTBF |
>20000H
|
| MTTR |
<30min |
| ENVIRONMENTAL ADAPTABILITY : |
| Operating Temperature: |
-40oC to +60oC |
| Storage Temperature: |
-45oC to +70oC |
| Operating RH: |
100% |
| Atmospheric Pressure: |
60-106Kpa |
| Saline mist: |
96 hours, IEC 60512-6 |
| Damp heat test at +40oC: |
21 days, IEC 60512-6 |
| Dry heat test at + 85oC: |
10 days, IEC 60512-6 |

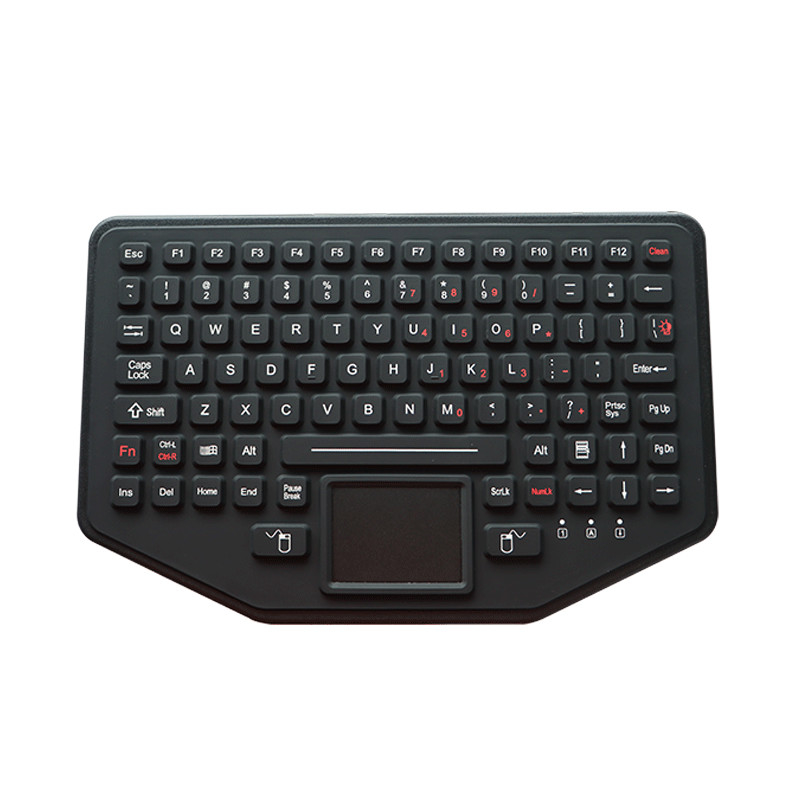

Actual Photos:

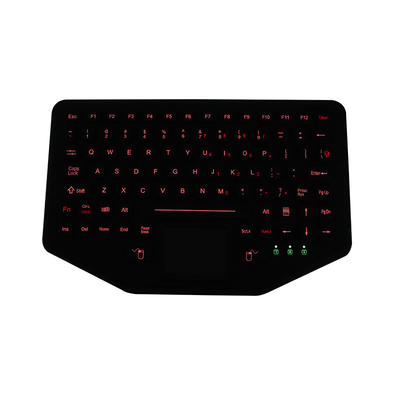

Keyboard with backlight

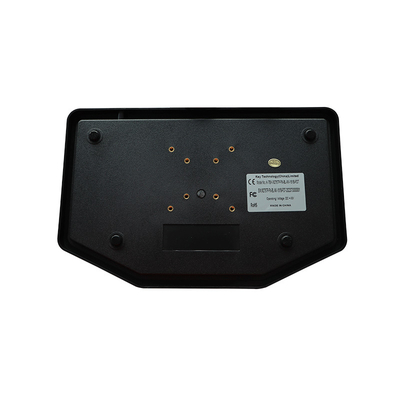

Back View
