Product Details:
|
Material: | Stainless Steel | Interface: | USB Or PS/2 |
---|---|---|---|
Protection Level: | IP67 | Name: | Industrial Keyboard With Touchpad |
Touchpad: | Resistive Touchpad | Trackball: | Optional |
Key: | 85 Keys | Key Travel: | 2.0mm |
Highlight: | 85 keys industrial keyboard with touchpad,explosion proof industrial keyboard with touchpad,explosion proof industrial metal keyboard |
85 Keys Explosion Proof Industrial Keyboard With Resistive Touch Pad Keyboard
DESCRIPTION:85 keys compact format IP68 dynamic sealed and ruggedized vandal proof stainless steel industrial keyboard with IP65 dynamic sealed & ruggedized tough resistive touchpad with scroll function (optional) for fast and accurate cursor position, users who wear gloves can also use it without any problem. Functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, movable stand alone DESK TOP VERSION,or mountable desktop with mounting holes on the bottoms for fixing. FN+Clean combination keys to lock/disable the whole keyboard for easy cleaning without error output. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 365.0mm x 155.0mm x 26.5mm (L x W x H)
Application:
-This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications.
- internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations
-Other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.
MECHANICAL DATA: | |
Actuator/keys: | 85 keys, super quality SUS304 brushed stainless steel |
Key top style: | Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
Key Size: | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key |
Actuation Force: | 1.2 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.0 N+/-0.1N for key 14.0mm x 28.0mm (pressure point) |
Switch life: | more than 5 million of operations. |
G.W.: | 1.80KGs |
Touchpad
|
sealed and rugged resistive touchpad.
|
Touchpad cove
|
Composite
|
More than Lifetime 10 million strokes
|
|
Mutual Capacitance sensing
|
|
X/Y position sensing resolution
|
40 counts/mm
|
X/Y position reporting
|
Relative
|
Output (self-detectable depending on cable)
|
PS2 or USB
|
Tracking speed: Maximum 1,016 m/sec
|
|
Power supply voltage
|
5 VDC ±0.25V
|
Current rating (active mode)
|
17 mA
|
Dimensions: |
361.0mm x 145.0mm (front panel) , 343.0mm x 123.0mm (back panel)
|
ELECTRICAL DATA : | |
Supply Voltage: | +5V DC +/-5% |
Current Rating: | appr. 50mA |
EMC Standard: | EN 55032:2015, EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material: | Carbon-on-Gold key switch technology PCB |
Interface: | PS2, USB available |
OS: | All Windows, Linux, Unix, Mac OSX, Android |
RELIABILITY: | |
RoHS Compliant, CE and FCC, ESD | |
Protection Level: | IP67(front panel) |
Vandal resistant | IK08 |
Key Lifespan | >5 million actuations |
MTBF |
>20000H |
MTTR | <30min |
ENVIRONMENTAL ADAPTABILITY : | |
Operating Temperature: | -20oC to +60oC |
Storage Temperature: | -30oC to +70oC |
Operating RH: | 30-90% |
Atmospheric Pressure: | 60-106Kpa |
Saline mist: | 96 hours, IEC 60512-6 |
Damp heat test at +40oC: | 21 days, IEC 60512-6 |
Dry heat test at + 85oC: | 10 days, IEC 60512-6 |
Industrial Keyboard Actual Photos:

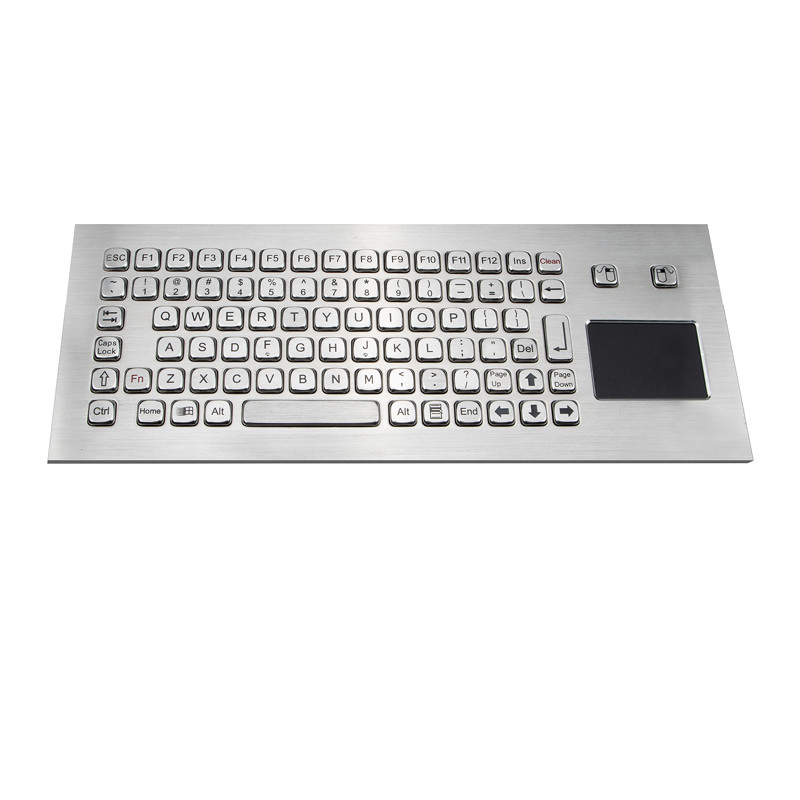

Keyboard without backlight

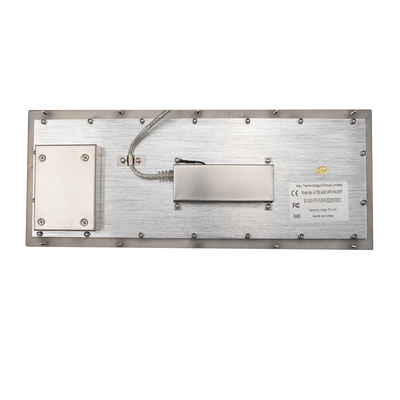

Back View
