Product Details:
|
Material: | Stainless Steel | Mounting: | Desk Top Version |
---|---|---|---|
Interface: | USB Or PS/2 | Protection Level: | IP68 |
Vandal Resistant: | IK09 | ||
Highlight: | IP68 Desktop Keyboard With Touchpad,SS Desktop Keyboard With Touchpad,Vandal Proof Stainless Steel Industrial Keyboard |
IP68 Desktop Keyboard With Touchpad Vandal Proof Stainless Steel Industrial Keyboard
DESCRIPTION:
DIMENSIONS: 365.0mm x 155.0mm x 26.5mm (L x W x H)
Application:
-This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications.
- internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations
-Other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.
MECHANICAL DATA: | |
Actuator/keys: | 85 keys, super quality SUS304 brushed stainless steel |
Key top style: | Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
Key Size: | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key |
Actuation Force: | 1.2 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.0 N+/-0.1N for key 14.0mm x 28.0mm (pressure point) |
Switch life: | more than 1 million of operations. |
G.W.: | 3.0KGs |
Dimensions: | 365.0mm x 155.0mm x 26.5mm (L x W x H) |
ELECTRICAL DATA : | |
Supply Voltage: | +5V DC +/-5% |
Current Rating: | appr. 50mA |
EMC Standard: | EN 55032:2015, EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material: | Gold-on-Gold key switch technology PCB |
Interface: | PS2, USB available |
OS: | All Windows, Linux, Unix, Mac OSX, Android |
RELIABILITY: | |
RoHS Compliant, CE and FCC, ESD | |
Protection Level: | IP68(front panel) |
Vandal resistant | IK09 |
Key Lifespan | >1 million actuations |
MTBF | >20000H |
MTTR | <30min |
ENVIRONMENTAL ADAPTABILITY : | |
Operating Temperature: | -20oC to +60oC |
Storage Temperature: | -30oC to +70oC |
Operating RH: | 30-90% |
Atmospheric Pressure: | 60-106Kpa |
Saline mist: | 96 hours, IEC 60512-6 |
Damp heat test at +40oC: | 21 days, IEC 60512-6 |
Dry heat test at + 85oC: | 10 days, IEC 60512-6 |
Actual Photos:

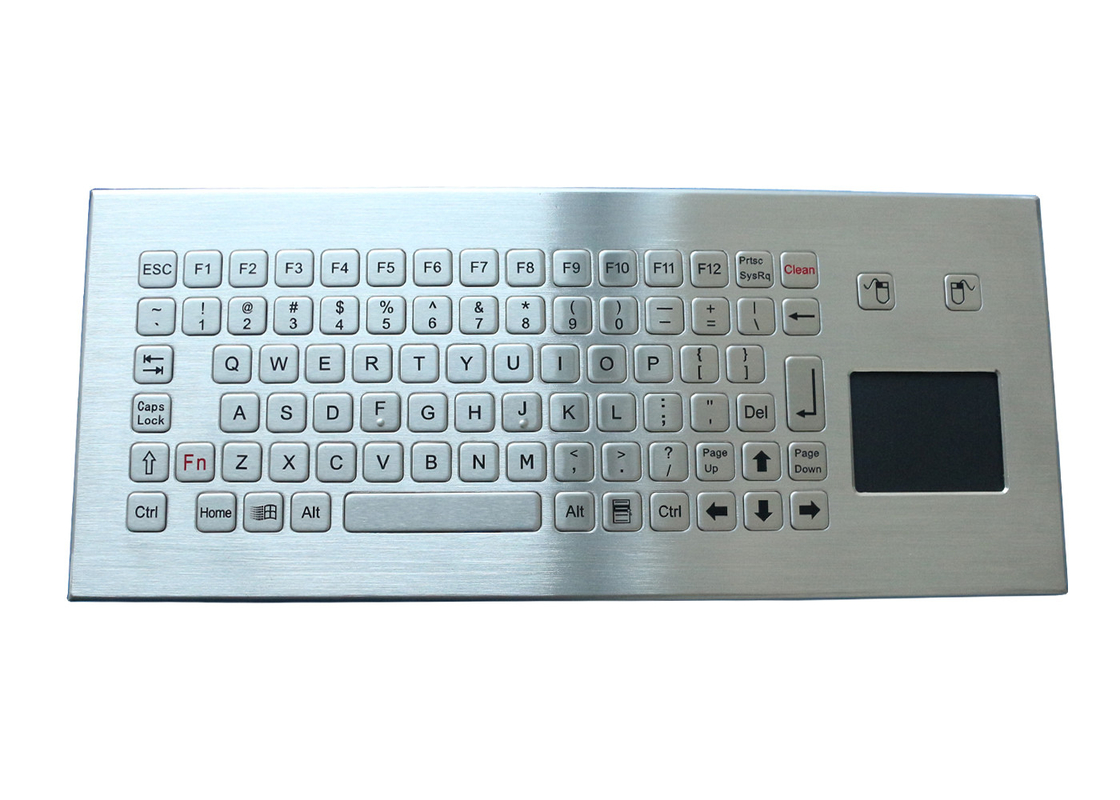

Keyboard without backlight

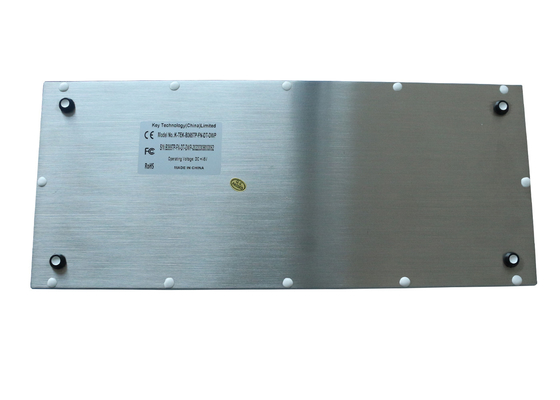

Back View
