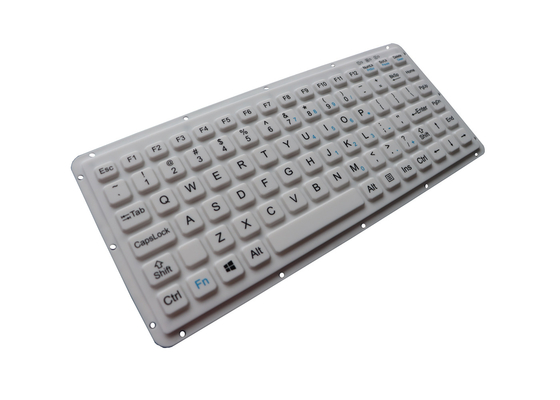

IP67 Washable Medical Silicone Industrial Keyboard With Membrane Key Switch
Model NO: K-TEK-M270-FN-MS-DWP
DESCRIPTION: 87 keys IP67 dynamic sealed & ruggedized silicone rubber industrial keyboard with individual industrial electronics controller included, 12 function keys on top line for easy operation, industrial membrane key switch technology with long stroke (1.20mm) with extremely good tactile feeling for fast and accurate data input without any noise and error output, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC, rear panel mount with super thin ruggedized aluminum back plate with mounting holes, industrial backlight optional. Industrial Level.
DIMENSIONS : 270mm*113mm (L x W )
| MECHANICAL DATA |
| keys: |
87 keys |
| Key top style: |
Protuberant rectangular keys with tactile feeling.
|
| Key Size: |
12.0mm X 13.0mm for normal keys, 22.5mm x 13.0mm for enter key and 82.0mm x 12.5mm for space bar key.
|
| G.W.: |
0.80KGs |
| Dimensions: |
270.0mm x 113.0mm (L x W) |
| ELECTRICAL DATA |
| Supply Voltage: |
+5V DC +/-5% |
| Current Rating: appr. |
50mA (non-backlight), 250mA (with backlight on)
|
| EMC Standard: |
EN 55032:2015 EN 55035:2017 |
| Lifespan |
> 5 years |
| Switch Contact Material: |
industrial PCB with membrane key switch technology
|
| Interface: |
PS2, USB available |
| OS: |
All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) |
| SILICONE INDUSTRIAL KEYBOARD ENVIRONMENTAL ADAPTABILITY |
| Operating temperature: |
-20oC to +60oC |
| Storage temperature: |
-30oC to +70oC |
| Operating RH: |
100% |
| Atmospheric pressure: |
60-106Kpa. |
| RELIABILITY |
| RoHS Compliant, CE and FCC |
| Protection Level: |
IP67(front panel) |
| Key Lifespan |
>5 million actuation |
| MTBF |
>20000H |
| MTTR |
< 30min |

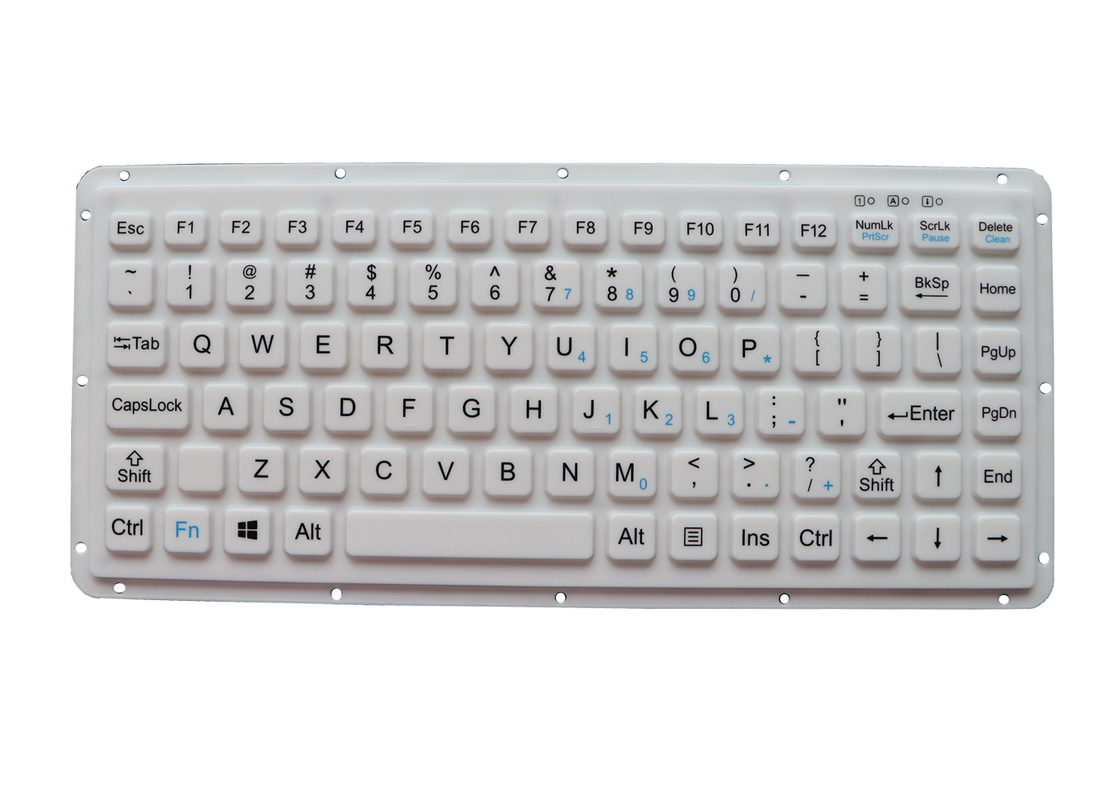

Front View

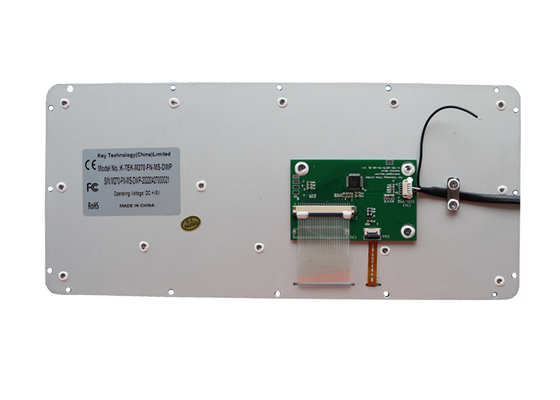

Back View
APPLICATIONS:
This keyboard provides full-size versatility in a rugged, compact design. This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings.
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
OTHER INDUSTRIES
MAIN FEATURE:
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
Special durable-coating for excellent mechanical and chemical resistance
FN + Clean key
-Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal
downtime
-User is notified of ‘lock down mode’ by brightly lit FN+CLEAN KEY
With firm tactile key feel, key travel 1.2mm key travel.
Actuation Force: 1.2N±0.1N
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Enclosure: industrial silicone, aluminum back plate
Key life: 5 millions
