Quick Details:
1. IP65 static vandal proof stainless steel military mechanical trackball
2. 50.8mm mechanical hardened resin trackball
3. IP65 static mechanical trackball module with 200~2000 DPI
4. Military level with wide temperature of -40°C to 60°C
5. With strong Anti-vibration
6. Front panel mounted solution with threaded bolts
7. 110.0mm x 126.0mm (front panel)
Descriptions:

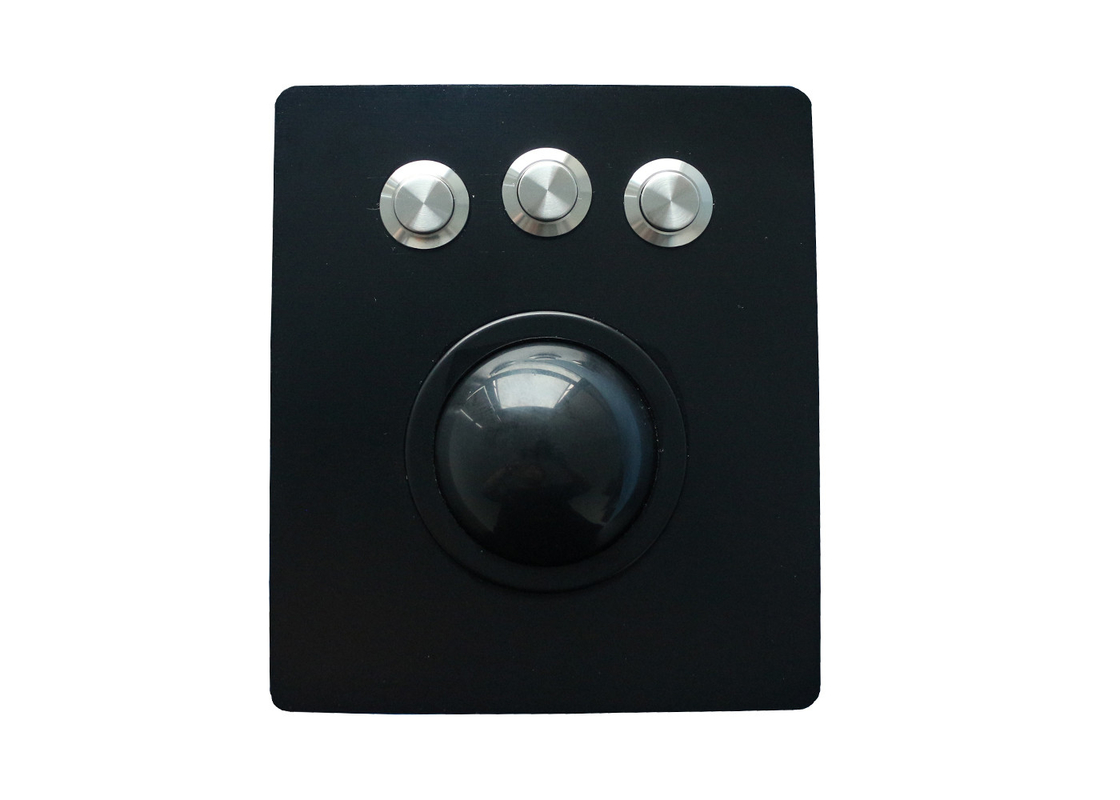

1. IP65 vandal proof stainless steel trackball with 50.8mm black hardened resin ball
2. IP65 rated 50.8mm mechanical trackball module with adjustable resolutions functionalities from low to high to meet different application requirements
3. Sealed stainless steel 3 mouse buttons for right/left clicking and scrolling up and down, with front panel mounting solutions.
4. With durable high quality black titanium electroplated on the stainless steel surface
5. Military level.
TECHNICAL SPECIFICATION
| ITEM |
SPECIFICATION |
| Mechanical |
Key |
3 keys, quality brushed stainless steel |
| Key top style |
Rugged round Keys |
| Front Plate |
Black titanium electroplated on the stainless steel surface |
| Key Travel |
1.4mm |
| Ball diameter |
50.8mm |
| Key switch lifespan |
more than 1 Mio actuations |
| Track ball lifespan |
> 10 Mio revolutions |
| Back Metal Cover |

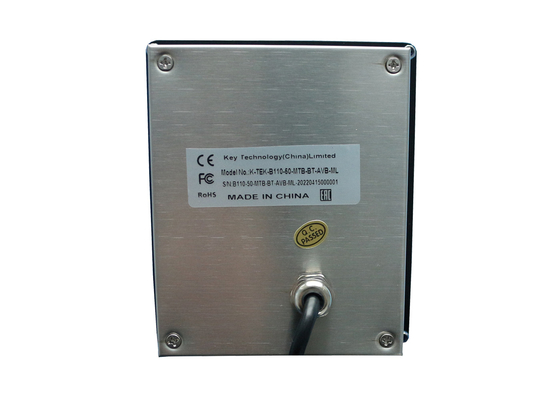

Rear side integrated electronics protected by a metal cover |
| Actuation Force |
3.2N+/-0.1N |
| Dimension |
Dimensions with 50.8mm track ball,
Front plate (L x Wx H): 110.0 x 126.0 x 45.0 mm
|
| Interface |
USB 1.1 |
| Electrical |
Power supply |
+5V DC +/-5% |
| Protection level |
IP65 (front panel), IK09 |
| EMC Standard |
EN 55032:2015, EN 55035:2017 |
| Power consuming |
≤1.00W(dynamic) |
| ≤0.2W(static) |
| Environmental |
Operating temperature |
-40ºC~+ 60º C |
| Storage temperature |
-45ºC~+ 70ºC |
| Operating RH |
30～90% |
| Atmospheric pressure |
60～106Kpa. |
| Reliable |
Certificates |
RoHS compliant, CE and FCC certified, ESD |
| MTBF |
>20000h |
| MTTR |
< 30min |
| OS |
All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) |
| Packing Details |
Each unit to a suitable brown box, suitable brown boxes to a standard export carton. |
APPLICATIONS:
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing
environments, warehouses
MARINE: ship, boat, navigation consoles etc.
OTHER INDUSTRIES
Main Features:
1. Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
2. All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.
3. Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast
4. Retaining one-pixel positioning accuracy when the ball is moved slowly.
5. Can be mounted horizontally, and vertically or any directions.
6. No metal bearings inside, operation is very smooth, and easy without any noise.
