Product Details:
|
Keycap: | Durable Polymer Keys | Keys: | 91 Keys |
---|---|---|---|
Interface: | USB | Protection Level: | IP67 (front Panel) |
Vandal Resistant: | IK09 | Operating Temperature: | -40℃ To +85℃ |
Highlight: | Marine Navy Keyboard IK09,91 keys Marine Navy Keyboard,Titanium Front Military Marine Keyboard |

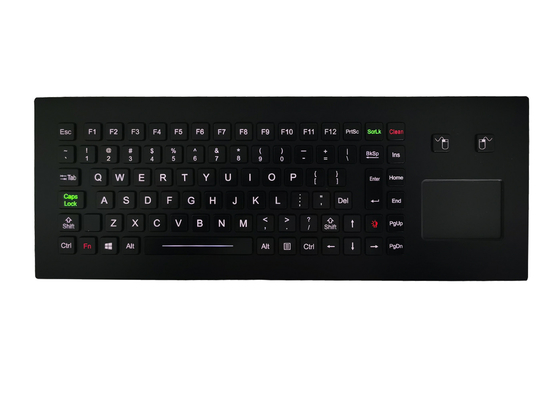

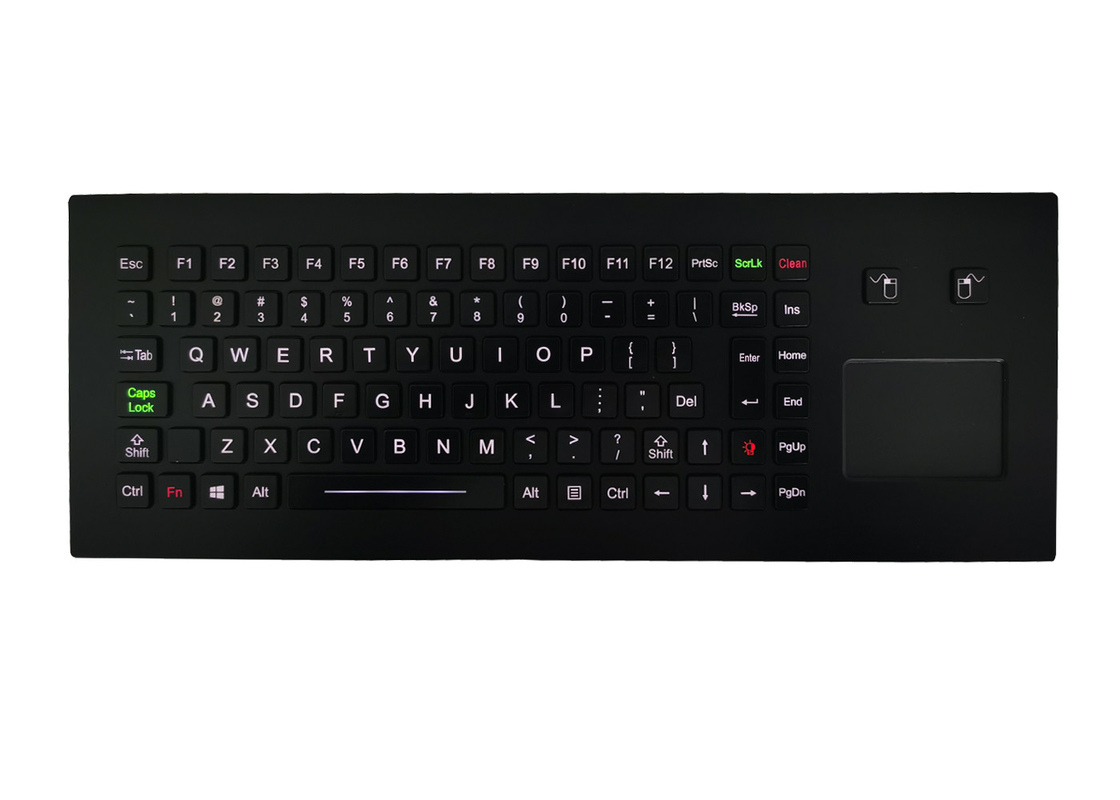

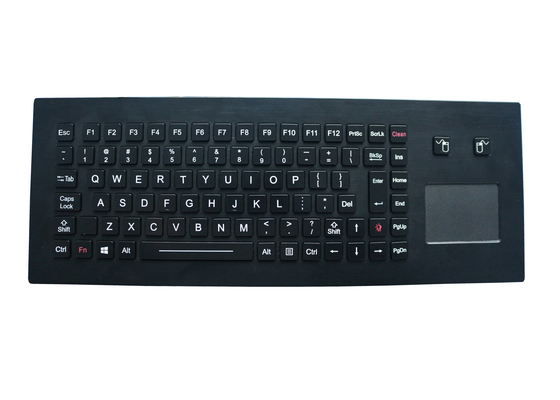

High Quality Marine Navy Keyboard Military Grade Stainless Steel Black Titanium Front Plate
DESCRIPTION: 91 keys compact format IP67 dynamic water proof vandal proof stainless steel military keyboard with durable polymer keys, with IP65 dynamic sealed & ruggedized tough touchpad for fast and accurate cursor position, with 12 function keys F1, F2, ... F12, sealed and ruggedized Military grade PCB with carbon-on-gold key switch technology with stroke 1.50mm with extremely good tactile feeling for fast and accurate data input without any noise, high quality durable black titanium electroplated on the top stainless steel plate, one complete silicone rubber along the rear stainless steel plate for easy mounting & sealing tightly with cabinet, front panel with thread bolts for top panel mounting. Red/ white backlight is included. Aviation plug or USB interface is optional. Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) & MIL-STD-810F (wide temperature, shock, vibration, humidity etc.),which is good for outdoor application with direct rain and very harsh environments with humidity,much dynamic water, oil,dirt,salt mist etc.
Dimensions: 390.0mm x 145.0mm (front panel)
APPLICATION This ruggedized keyboard can be good for working in low-light areas, it is also available with LED backlight. This keyboard is ideal for below wide applications: MEDICAL: Lab, hospital, clinic, dental, such as carts, diagnostic equipment, operation rooms, dialysis centers etc; MATERIAL HANDLING: Mobile keyboard, data entry, assembly line etc MILITARY: Army, Navy, Air force INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, Warehouses, marine console.
|
MAIN FEATURE The keyboard can be dynamic washable with water and other liquids, it can work well even under direct water pouring on the keyboard.
The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without needing to take the keyboard away from PC, and avoid mis-operation or mis-typing.

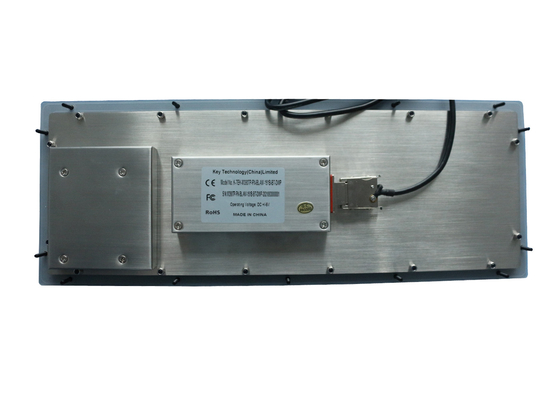

Waterproof execution according to IP67 protection from top panel and other sides without including the bottom side, top stainless steel plate and sealing gasket with mounting holes or easy tightly mounting to enclosure or panel.
An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation.
Any keyboard layouts are available, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
Polymer keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
Complete electronic modules including controller in close consultation with our customers are available.
USB connection plug-and-play with PC via PC existing OS driver, no need to install separate driver.
|
MECHANICAL DATA Actuator/keys: 91 keys, durable and robust polymer keys. Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised Braille on keys are available Key Size: 14.0mm x 14.0mm for normal keys, 13.5mm x 31.5mm for enter key, 13.5mm x 85.5mm for space bar. Key travel: 1.50mm Actuation Force: 1.8N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.5 N+/-0.10N for key 13.5mm x 31.5mm (pressure point) Switch life: more than 5 million of operations. Front Plate: 1.5mm thickness super quality brushed stainless steel Back Plate:1.5mm thickness super quality brushed stainless steel Touchpad: sealed and ruggedized tough touchpad. Touchpad cover: Composite Output (self-detectable depending on cable): USB |
ELECTRICAL DATA Supply Voltage: +5V DC +/-5% Current Rating: appr. 300mA EMC Standard: EN 55032:2015, EN 55035:2017 Lifespan > 5 years Switch Contact Material: Carbon-on-Gold key switch technology PCB. Interface: USB OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
|
ENVIRONMENTAL ADAPTABILITY Operating temperature: -40℃ to +85℃ Storage temperature: -45℃ to +90℃ Operating RH: 30-90% Atmospheric pressure: 60-106Kpa. Saline mist: 96 hours, IEC 60512-6 Damp heat test at + 40oC: 21 days, IEC 60512-6 Dry heat test at + 85oC: 10 days, IEC 60512-6
|
RELIABILITY RoHS Compliant, CE and FCC, ESD Protection Level: IP67 Vandal resistant IK09 Key Lifespan >5 million actuation. MTBF >20000H MTTR <30min
|
