DESCRIPTION: 40 keys compact format IP68 dynamic water proof and vandal proof stainless steel industrial keyboard with fully sealed industrial PCB with industrial electronics controller shielded & protected by stainless steel housing, with industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, standalone movable desktop version with brushed stainless steel housing. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.
DIMENSIONS: 211.0mm x 108.0mm x 21.5mm (L x W x H)
ELECTRICAL DATA
· Supply Voltage: +5V DC +/-5%
· Current Rating: appr. 30mA
· EMC Standard: EN 55032:2015 EN 55035:2017
· Lifespan > 5 years
· Switch Contact Material: Carbon-on-Gold key switch technology PCB
· Interface: PS2, USB available
· OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
MECHANICAL DATA
· Actuator/Key: 40 keys, super quality SUS304 brushed stainless steel
· Key top style: protuberant rectangular keys, with laser engraved and etched legends and raised dots available
· Key size: 14.0mm x 14.0mm for normal key
· Switching material: Carbon-on-Gold.
· Actuation Force: 1.2N+/-0.1N (pressure point)
· Key Travel: 2.0mm
· Key life: 5 million of operation
· Dimensions: 211.0mm x 108.0mm x 21.5mm (L x W x H)
· G.W.: 1.0KGs
ENVIRONMENTAL ADAPTABILITY
· Operating temperature:-20oC to +60oC
· Storage temperature: -30oC to +70oC
· Operating RH: 30-90%
· Atmospheric pressure: 60-106Kpa.
· Saline mist: 96 hours, IEC 60512-6
· Damp heat test at + 40oC: 21 days, IEC 60512-6
· Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
· RoHS Compliant, CE and FCC, ESD
· Protection Level: IP68
· Vandal resistant IK08
· Key Lifespan > 5 million actuation
· MTBF > 20000H
MTTR < 30min
More photos for reference:

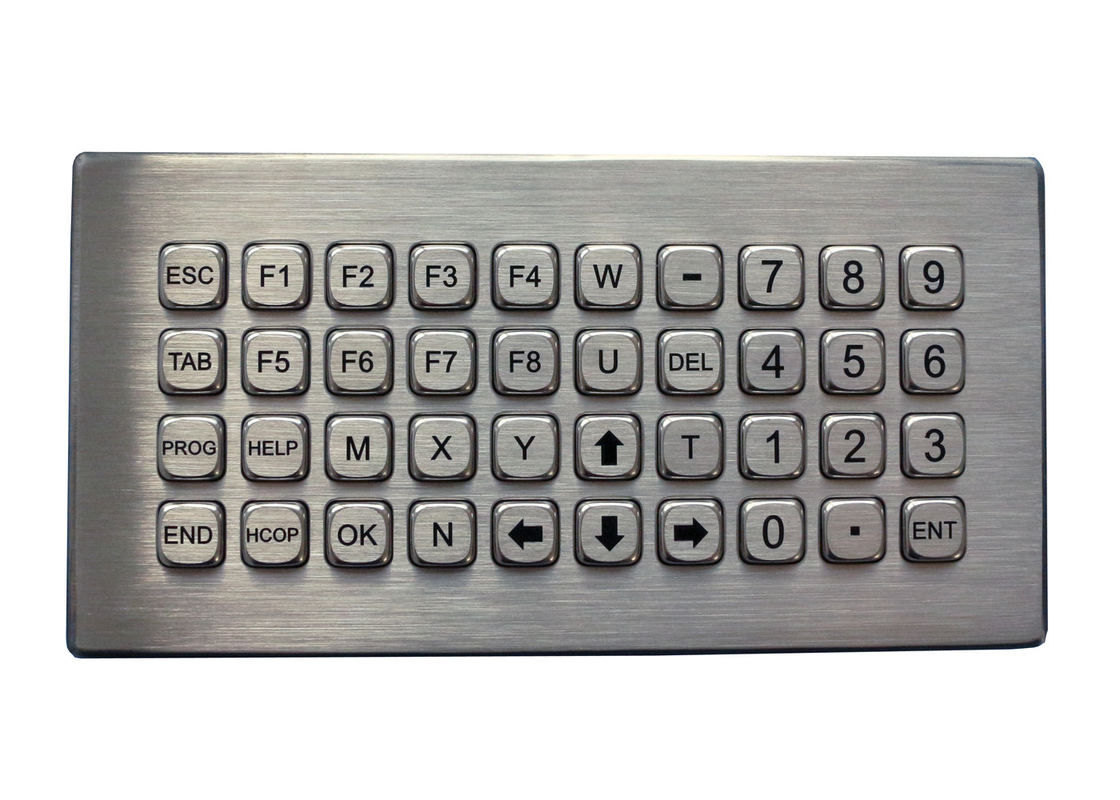

Front side

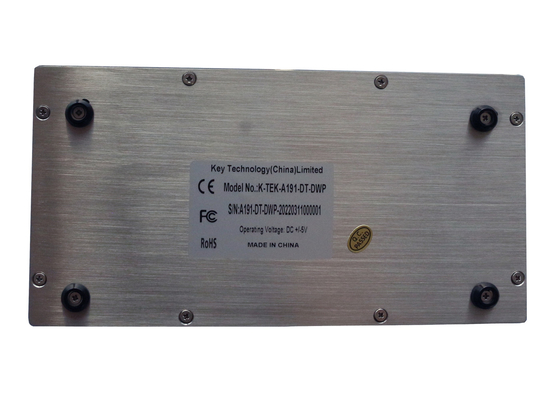

Back side with USB interface
