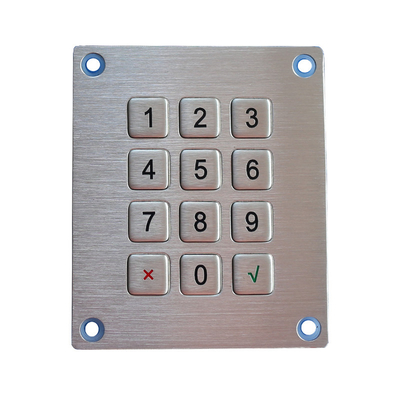

SUS304 Brushed Metal Numeric Keypad IK09 12 Keys Compact Format For Bank Kiosks

12 keys compact format IP67 dynamic water proof and vandal proof Stainless Steel industrial numeric keypad with industrial metal dome PCB electronics controller shielded & protected by stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, top stainless steel plate with sealing gasket for easy & tight sealing and mounting to enclosure or panel, with mounting holes for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.



Operating temperature:-20oC to +60oC

Storage temperature: -30oC to +70oC

Operating RH: 30-90%

Atmospheric pressure: 60-106Kpa.

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40oC: 21 days, IEC 60512-6

Dry heat test at + 85oC: 10 days, IEC 60512-6



RoHS Compliant, CE and FCC, ESD

Protection Level: IP67(front panel)

Vandal resistant IK09

Key Lifespan > 1 million actuation

MTBF >20000H

MTTR <30min



MECHANICAL DATA:

Front plate	1.5mm thickness super quality brushed stainless steel

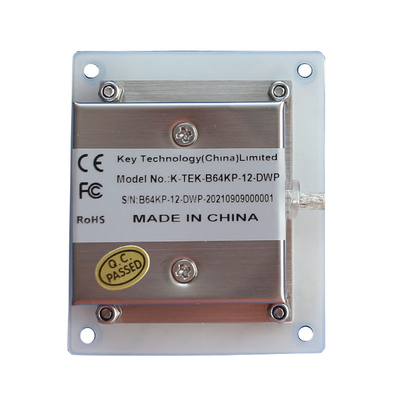

Back plate	Super quality SUS304 stainless steel
Actuator/Keys	12keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key
Key top style	protuberant rectangular keys, with laser engraved and etched legends and raised braille dots available.
Key size	10.0mm x 10.0mm for normal keys
Switching material	Gold-on-Gold key switch technology PCB
Actuation Force	3.2N+/-0.1N for key 10.0mm x 10.0mm (pressure point)
Key Travel	0.45mm
Switch life	more than 1 million of operations
Dimensions	64.0mm x 76.0mm (L x W )
G.W.	0.60KGs
