Dynamic IP67 Vandal Proof Industrial Metal Keypad Waterproof Rugged Stainless Steel

Dynamic IP67 Vandal Proof Keypad Waterproof Rugged Metal Keypad Stainless Steel

Sepcial Features:

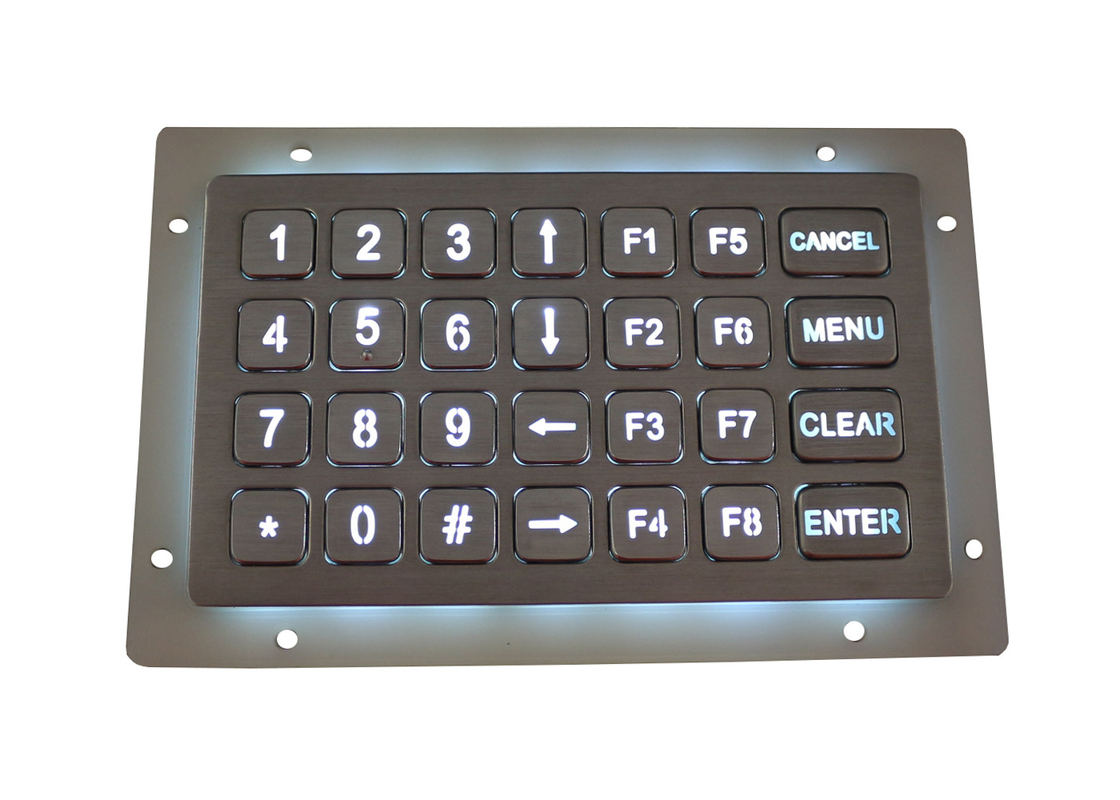

28 keys compact format IP67 dynamic waterproof and vandal proof Stainless Steel industrial keypad with industrial electronics controller shielded and protected via stainless steel housing. Industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, with industrial backlight included(Red/blue/white/green optional). Top stainless steel plate with sealing gasket for easy & tight sealing and mounting to enclosure or panel, with mounting holes for rear panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 83.0mm × 138.0mm (front panel)

MECHANICAL DATA:

ENVIRONMENTAL ADAPTABILITY

· Operating temperature:-20^oC to +60^oC

· Storage temperature: -30^oC to +70^oC

· Operating RH: 30-90%

· Atmospheric pressure: 60-106Kpa.

· Saline mist: 96 hours, IEC 60512-6

· Damp heat test at + 40^oC: 21 days, IEC 60512-6

· Dry heat test at + 85^oC: 10 days, IEC 60512-6

RELIABILITY

· RoHS Compliant, CE and FCC, ESD

· Protection Level: IP67(front panel)

· Vandal resistant IK09

· Key Lifespan >1 million actuations

· MTBF > 20000H

· MTTR < 30min
