Steel Plate Membrane Ruggedized Keyboard 81 Keys IP68 With Touchpad

Large Image : Steel Plate Membrane Ruggedized Keyboard 81 Keys IP68 With Touchpad

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	IKB-MKB
Certification:	CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number:	K-TEK-D343TP-FN-DT

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Each keyboard to one box, several boxes to one carton.
Delivery Time:	ASAP Within 2 weeks upon payment confirmed
Payment Terms:	Full payment in advance, Western Union, T/T, Paypal
Supply Ability:	3000psc/month

Contact Now

Steel Plate Membrane Ruggedized Keyboard 81 Keys IP68 With Touchpad

Description

Material:	Membrane With Stainless Steel Frame	Touchpad:	Yes
Application:	Industrial / Food And Beverage	Color:	White / Black
USB:	Yes (PS/2 Optional)	Mounting:	Movable Desk Top
Highlight:	Membrane Ruggedized Keyboard , 81 Keys Ruggedized Keyboard , Ruggedized Steel Mechanical Membrane Keyboard

DESCRIPTION:

81 keys compact format IP68 dynamic rated membrane industrial keyboard with function keys on the upper line and IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with FN and CLEAN key for easy cleaning via lock/disable the entire keyboard without needing to take away the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, back side sealed with ruggedized and vandal proof stainless steel plate for stand alone DESK TOP VERSION.

MECHANICAL DATA:

Number of Keys	81
Key switch Technology	metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys
Actuation Force	2.8N for key 11.0mm x 11.0mm (press point)
Key Travel	0.45mm
Key switch Lifetime	3 mil. operations
Protection Level	IP68
Mounting Type	Top panel mounting or Desk Top.
Operating Temperature	-20 °C to +50 °C;
Colors	2 (White or Black)
G.W.	2.0KGs
Key Dimensions	11.0mm x 11.0mm
Dimensions	368.0mm x 150.0mm x 20.2mm (L x W x H)

ELECTRICAL DATA:
Supply Voltage:	+5V DC +/- 5%
Current Rating:	appr. 50mA
EMC Standard:	EN 55032:2015; EN 55035:2017
Lifespan	> 3 years
Interface:	PS2, USB available.
OS:	All Windows, Linux, Unix, Mac OSX, Vxworks, Android

RELIABILITY
RoHS , CE, FCC
Protection Level:	IP68
Key Lifespan	>1 million actuations
Touchpad lifespan	> 5 million of times
MTBF	>20000H
MTTR	<30min

More Views:

Front View (Black Membrane)

Steel Plate Membrane Ruggedized Keyboard 81 Keys IP68 With Touchpad 0

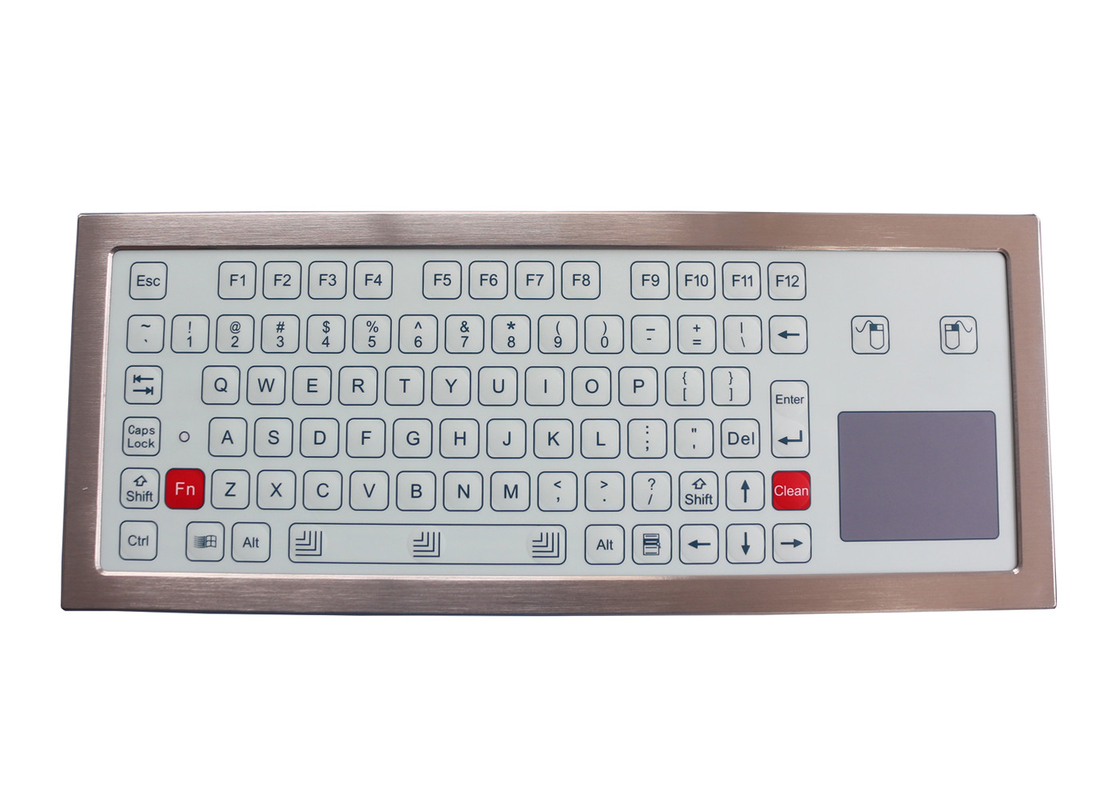

Front View (White Membrane)

Steel Plate Membrane Ruggedized Keyboard 81 Keys IP68 With Touchpad 1

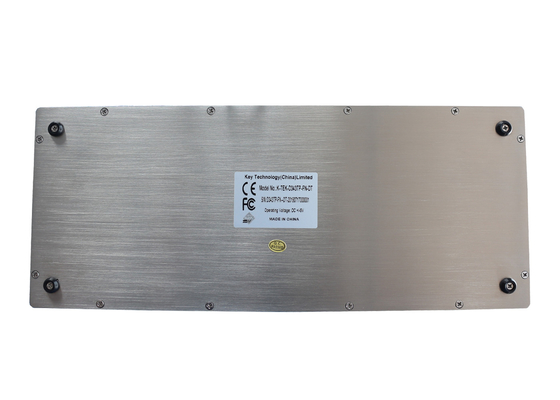

Back View

Steel Plate Membrane Ruggedized Keyboard 81 Keys IP68 With Touchpad 2

Steel Plate Membrane Ruggedized Keyboard 81 Keys IP68 With Touchpad 3

Steel Plate Membrane Ruggedized Keyboard 81 Keys IP68 With Touchpad 4
