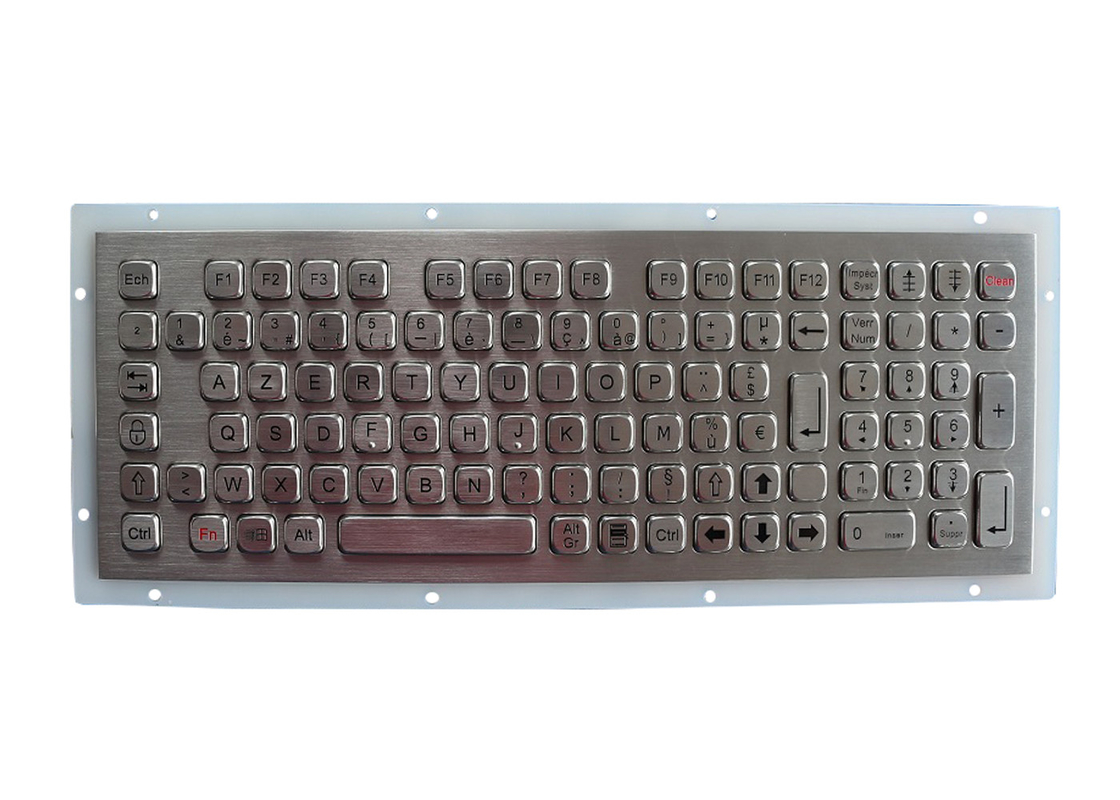

Vandal Resistant Panel Mount Keyboard Metal Industrial For Information Kiosk

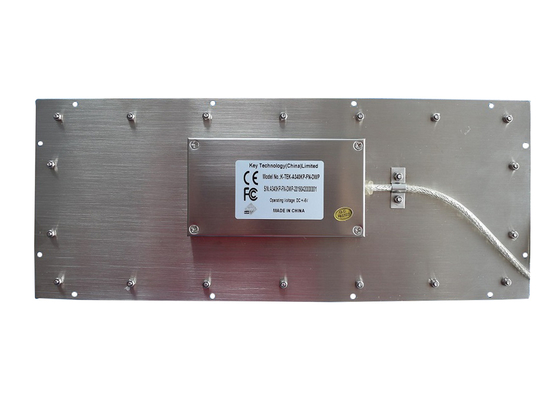

DESCRIPTION: 102 keys compact format IP67 dynamic water proof vandal proof stainless steel industrial keyboard with fully sealed and ruggedized industrial PCB electronics controller with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, with integrated numeric keypad, function keys F1, F2..F10, F11, F12 are on the top panel for easy operation. 1.50mm stainless steel back plate with water-tight gasket for easy and tightened sealing with cabinet or panel, rear panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 272.0mm x 105.0mm (front panel)
MECHANICAL DATA |
Actuator/keys | 102 keys, super quality SUS304 brushed stainless steel |
Key top style | protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
Key Size | 14.0mm x 14.0mm for normal keys,
14.0mmx28.0mm for Enter Key
14.0mm x 70.0mm for space bar. |
Key travel | 2.0mm |
Switch life | more than 5 million of operations |
Actuation Force | 0.6 0N+/-0.1N for key 14.0mm x 14.0mm (pressure point)
1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point) |
Front Plate | 1.5mm thickness super quality brushed stainless steel |
Back Plate | 1.5mm thickness brushed & oxidized aluminium |
G.W. | 1.80KGs |
Dimensions | 340.0mm x 125.0mm (front panel) |
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: 30mA.
EMC Standard: EN 55032:2015, EN 55035:2017
Lifespan > 5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB available
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android,(U-cos--To be confirmed)
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP67
Vandal resistant IK08
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
