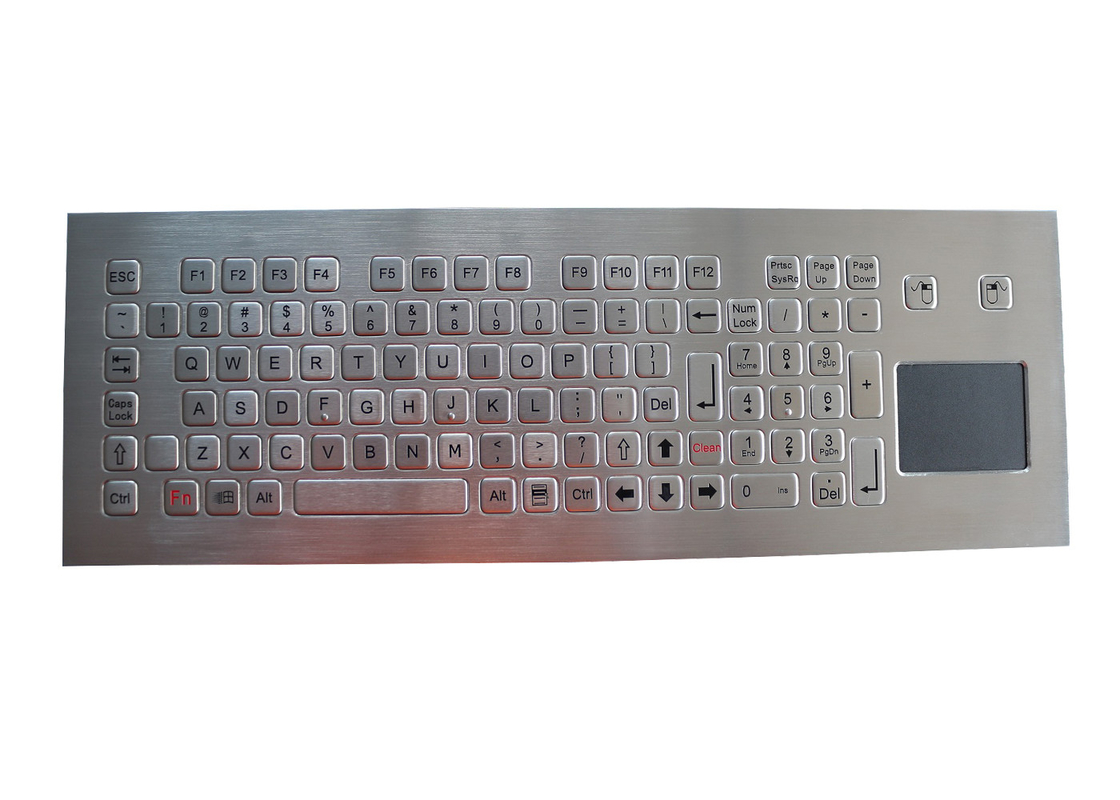

4 In 1 Full Functionality Stainless Steel Metal Keys Waterproof Keyboard
DESCRIPTION: 103 Keys Compact Format IP67 dynamic washable Vandal Proof Stainless Steel industrial Keyboard with IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, industrial metal PCB with gold-on-gold key switch technology with short stroke 0.45mm with extremely good tactile feeling for stable and accurate input without any noise, one complete silicone rubber along the underneath of stainless steel top plate for easy mounting & sealing tightly with cabinet, 2 mouse buttons designed for right & left clicking, function keys F1, F2..F10, F11, F12 are on the top panel for easy operation, with numeric keypad. Stainless steel top plate with threaded bolts for top panel mounting solution.adjustable industrial backlight optional. (Blue, Red, White colors etc. optional). Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 420.0mm x 145.0mm (front panel)
|
Supply Voltage
|
+5V DC +/-5%
|
|
Current Rating: appr
|
50mA
|
|
EMC Standard
|
EN 55032:2015, EN 55035:2017
|
|
Lifespan
|
> 5 years
|
|
Switch Contact Material
|
Carbon-on-Gold key switch technology PCB.
|
|
Interface
|
PS2, USB available
|
|
Operating temperature
|
-20oC to +60oC
|
|
Storage temperature
|
-30oC to +70oC
|
|
Operating RH
|
30-90%
|
|
Atmospheric pressure
|
60-106Kpa
|
|
Saline mist
|
96 hours, IEC 60512-6
|
|
Damp heat test at + 40oC
|
21 days, IEC 60512-6
|
|
Dry heat test at + 85oC
|
10 days, IEC 60512-6
|
|
Protection Level:
|
IP67
|
|
Vandal resistant
|
IK09 |
|
Key Lifespan
|
>1 million actuations
|
|
MTBF
|
>20000H
|
|
MTTR
|
<30min
|
MECHANICAL DATA
Actuator/keys: 103 keys, super quality SUS304 brushed stainless steel.
Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
Key travel: 0.45mm
Actuation Force: 1.2 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.0 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Switch life: more than 1 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Plate:1.2mm thickness brushed & oxidized aluminium
Touchpad: sealed and ruggedized tough touchpad.
Touchpad cover: Composite
More than Lifetime 5 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative
Output (self-detectable depending on cable): PS2 or USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5 VDC ±0.25V
Current rating (active mode): 17 mA
G.W.: 1.60KGs
