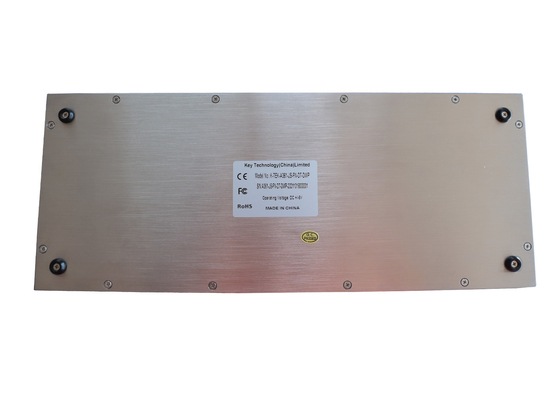

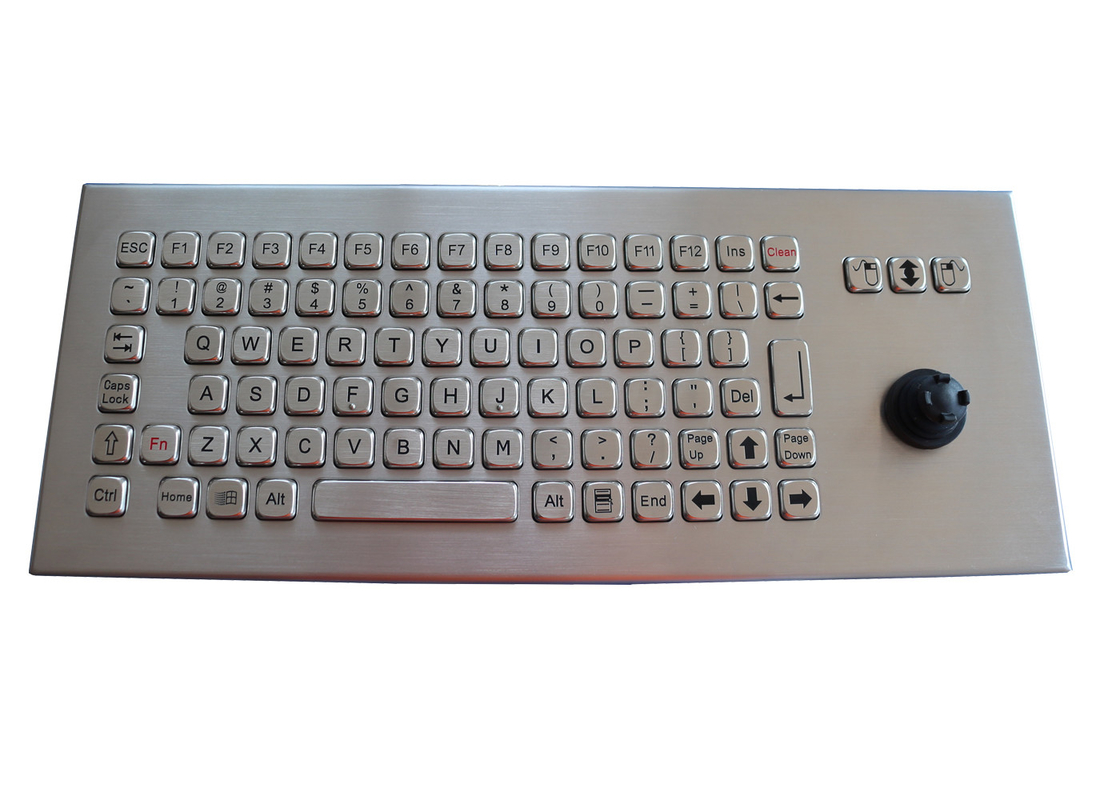

DESCRIPTION: 86 keys compact format IP67 dynamic sealed and ruggedized vandal proof, explosive proof stainless steel industrial keyboard with joystick, with 3 mouse buttons above the joystick for easily direct cursor, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation, the joystick can control the output of X (left and right) and Y axis (front and rear) by moving the handle in any direction by (20° ± 3°), industrial PCB with carbon-on-gold key switch technology with long stroke 1.50mm with excellent tactile feeling for fast and accurate data input, movable stand alone DESK TOP VERSION, or mountable desktop with mounting holes on the bottoms for fixing. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk andanti-salt spray corrosion
MECHANICAL DATA
Actuator/keys: 86 keys, super quality SUS304 brushed stainless steel
Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised Braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
Key travel: 1.50mm long stroke.
Actuation Force: 1.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2N+/-0.1Nfor key 14.0mm x 28.0mm (pressure point)
Switch life: more than 5 million of operations.
Stainless Steel Housing: super quality brushed stainless steel.
G.W.: 3.00KGs
Dimensions:361.0mm x 145.0mm x 33.5mm (L x W x H)
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 30mA
EMC Standard: EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature: -40℃ to +60℃
Storage temperature: -45℃ to +70℃
Operating RH: 30-95%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: keyboard IP67 + joystick IP65
Vandal resistant IK08
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
