DESCRIPTION: 108 keys IP68 dynamic sealed and ruggedized industrial silicone rubber Hygienic keyboard, with integrated numeric keypad on right side, function keys on upper line, and industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, Clean key for easy cleaning via lock/disable the keyboard without needing to take away the keyboard from PC, mountable stand alone desk top version with robust polycarbonate case and VESA and AMPS mounting holes on the backside, adjustable industrial backlight optional.
Main Features:
keyboard with red adjustable backlighting optional, while the backlight makes this keyboard ideal for aviation or vehicle applications where night vision goggles are necessary.
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
Clean key-Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime-User is notified of ‘lock down mode’ by brightly lit CLEAN KEY
Special durable-coating for excellent mechanical and chemical resistance
With firm tactile key feel, key travel 1.50mm key travel.
Actuation Force: Square key: 1.2N+/-0.1N Rectangular key: 2N+/-0.1N
Integrated numeric keypad.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Enclosure: industrial silicone cover, Robust ABS Polycarbonate Case
Low-profile keys for easy cleaning
MECHANICAL DATA:
| Key |
108 keys |
| Key top style |
Protuberant rectangular keys with tactile feeling. |
| Key Size |
12.0mm X 13.0mm for normal keys, 23.4mm x 13.0mm for enter key and 68.0mm x 13mm for space bar key. |
| Switch life |
more than 5 million of operations. |
| Cable Length |
Standard 2.0m, customized length available.
|
| G.W. |
1.0KGs |
| Dimensions |
405.0mm x 155.0mm x 22.1~36.8mm (L x W x H)
|
ELECTRICAL DATA:
| Supply Voltage |
+5V DC +/-5% |
| Current Rating |
appr. 30mA (non-backlight) |
| EMC Standard |
EN 55032:2015
EN 55035:2017
|
| Lifespan |
>5 years |
| Switch Contact Material |
Carbon-on-Gold key switch technology with gold PCB. |
| Interface |
PS2, USB available. |
| OS |
All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |

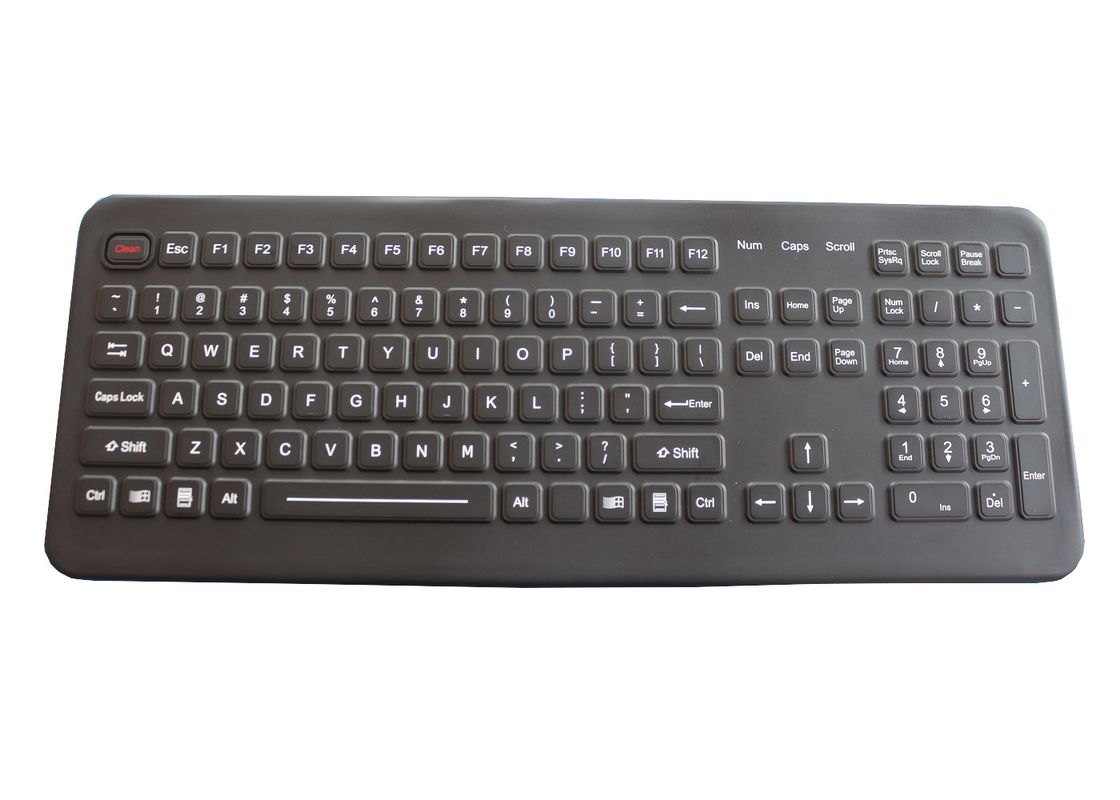

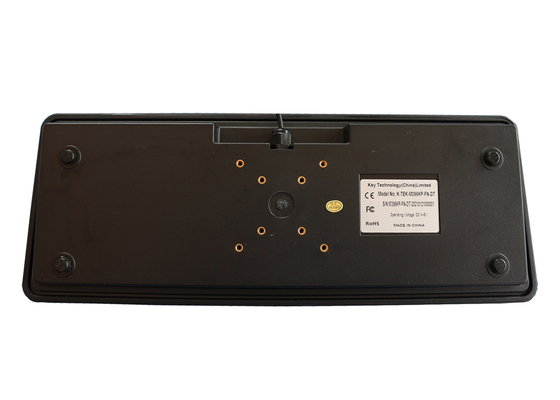

Actual Photos:
