DESCRIPTION: 116 keys compact format IP68 dynamic water proof & vandal proof stainless steel industrial keyboard with individual durable and robust polymer keys with full keyboard functionalities, totally sealed and ruggedized industrial PCB with carbon-on-gold key switch technology with long stroke 1.50mm with extremely good tactile feeling for fast and accurate data input without any noise, function keys F1, F2, ...F23, F20 are on the top line for easy operation, individual numeric keypad integrated, with integrated IP65 sealed and ruggedized tough touchpad for fast and accurate cursor position, one complete silicone rubber alone the rear stainless steel plate for easy mounting & sealing tightly with cabinet. High quality scratch-proof durable black titanium electroplated on the top stainless steel plate optional, movable desktop version, which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.
APPLICATION
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.
MAIN FEATURE
The keyboard can be dynamic washable with water and other liquids, it can work well even under water with 2.0mm depth after 8 hours dynamic water proof testing.
The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without needing to take the keyboard away from PC.
Waterproof execution according to IP68 protection from whole keyboard.
An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation.
Any keyboard layouts are available, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
Polymer keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
Complete electronic modules including controller in close consultation with our customers are available.
PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.
MECHANICAL DATA
Actuator/keys: 116 keys, durable and robust polymer keys.
Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
Key travel: 1.50mm
Actuation Force: 1.8N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.5N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Plate:1.5mm thickness super quality brushed stainless steel
Touchpad: sealed and ruggedized tough touchpad.
Touchpad cover: Composite
More than Lifetime 10 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative
Output (self-detectable depending on cable): PS2 or USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5VDC ± 0.25V
Current rating (active mode): 17 mA
G.W.: 1.50KGs
Dimensions: 383.0mm x 167.0mm x 20.0mm (front panel)
|
ENVIRONMENTAL ADAPTABILITY
|
Operating temperature:
|
-20oC to +60oC
|
|
Storage temperature:
|
-30oC to +70oC
|
|
Operating RH:
|
30-90%
|
|
Atmospheric pressure:
|
60-106Kpa.
|
|
Saline mist:
|
96 hours, IEC 60512-6
|
|
Damp heat test at + 40oC:
|
21 days, IEC 60512-6
|
|
Dry heat test at + 85oC:
|
10 days, IEC 60512-6
|
|
RELIABILITY
|
Protection Level:
|
IP68 without including the bottom side
|
|
Vandal resistant:
|
IK09
|
|
Key Lifespan:
|
>5 million actuations
|
|
MTBF
|
>20000H
|
|
MTTR
|
<30min
|

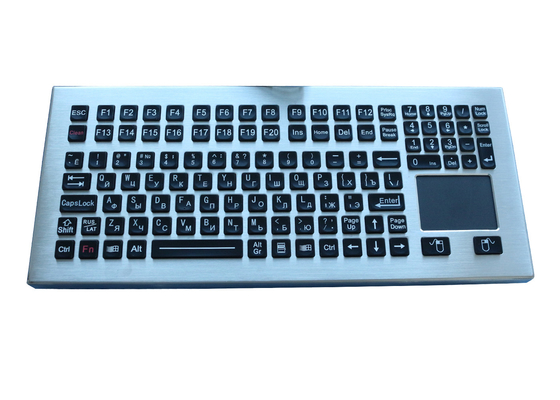

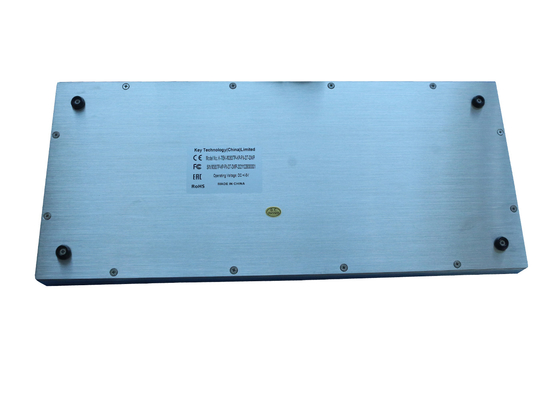

Actual Photos:
