DESCRIPTION:

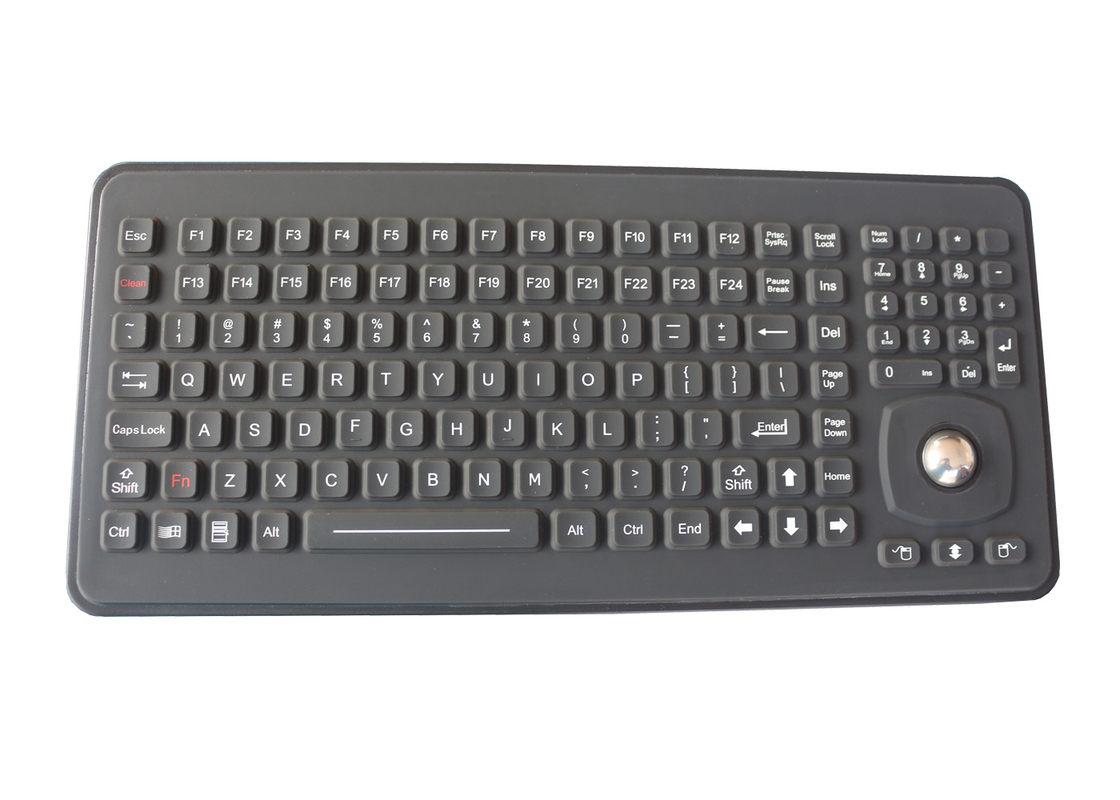

120 keys IP67 dynamic rated ruggedized industrial silicone rubber Hygienic keyboard with full keyboard functionalities, integrated numeric keypad and 24 FN keys (F1, F2...F11, F12...F23, F24), sealed & ruggedized IP68 dynamic 25.0mm optical trackball module with 800 DPI resolution for fast and accurate cursor position, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, Clean key for easy cleaning, top panel mounted solutions with sealed & ruggedized robust polycarbonate frame with mounting studs, adjustable industrial backlight optional, industrial level.
APPLICATIONS:
This keyboard provides full-size versatility in a rugged, compact design with the added convenience of a trackball. For working in low-light areas, it is also available with optional LED backlighting. This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its large numeric pad allows for easy data entry, while its robust polycarbonate case protects it against any hazardous environment.
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing
environments, warehouses
OTHER INDUSTRIES
MECHANICAL DATA:
|
Key
|
120 keys
|
|
Key top style
|
Protuberant rectangular keys with tactile feeling |
|
X/Y position sensing resolution
|
40 counts/mm
|
|
X/Y position reporting
|
Relative
|
|
Output (self-detectable depending on cable)
|
PS2 or USB
|
|
Tracking speed
|
Maximum 1,016 m/sec
|
|
Power supply voltage
|
5 VDC ±0.25V
|
|
Current rating (active mode)
|
100 mA
|
|
Key Size
|
12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key
|
MAIN FEATURES :
Keyboard with NVIS-compliant red adjustable backlighting optional, while NVIS backlighting makes this keyboard ideal for
aviation or vehicle applications where night vision goggles are necessary.
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease
and corrosive liquids, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy
industrial use.
Clean key-Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal
downtime-User is notified of ‘lock down mode’ by brightly lit CLEAN KEY
Special durable-coating for excellent mechanical and chemical resistance
With firm tactile key feel, key travel 1.50mm key travel.
Actuation Force: Square key: 1.2N+/-0.1N Rectangular key: 2N+/-0.1N
IP68 dynamic rated optical trackball module with 800 DPI resolutions
Integrated numeric keypad.
24 Function keys provide more shortcut operation.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Enclosure: industrial silicone, aluminum back plate
Low-profile keys for easy cleaning
Key life: 5 millions

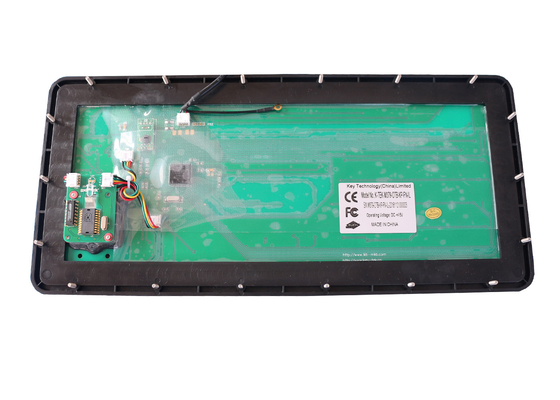

More Back and front View:
