Description:

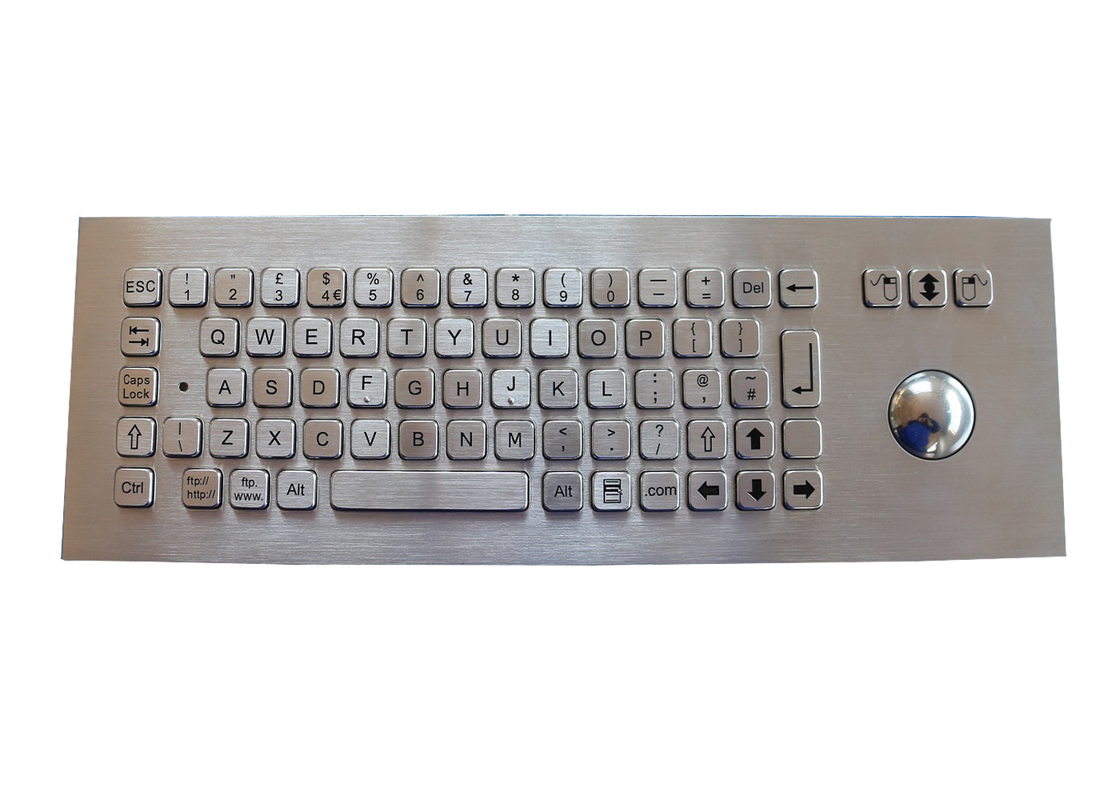

1. 71 keys compact format IP67 vandal proof stainless steel industrial keyboard with fully sealed and ruggedized industrial PCB electronics controller
2. IP65 38.0mm stainless steel mechanical trackball module with 400 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise,
3. industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise
4. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, 3.0mm aluminum back plate with water-tight gasket for easy and tightened sealing with cabinet or panel
4. rear panel mounting solution. Industrial Backlight optional(red/blue/white/green optional)
MECHANICAL DATA
Actuator/keys:71 keys, super quality SUS304 brushed stainless steel
Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
Key travel: 2.0mm
Actuation Force: 1.2 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.0 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Switch life: more than 5 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel

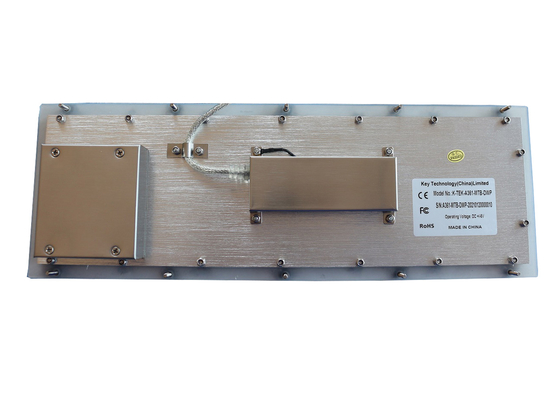

Back Plate:3.0mm thickness brushed & oxidized aluminum
Tracker ball: 38.0mm stainless steel mechanical trackball module with 400 DPI resolutions
G.W.:2.0KGs
Dimensions: 343.0mm x 105.0mm x 34.1mm (L x W x H)
| Supply Voltage |
+5V DC +/-5% |
| Current Rating |
appr. 100mA |
| EMC Standard |
EN 55032:2015, EN 55035:2017 |
| Lifespan |
> 5 years |
| Switch Contact Material |
Carbon-on-Gold key switch technology PCB |
| Interface |
PS2, USB available |
| OS |
All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) |
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
