USB Harden Resin Military Mechanical Trackball 400DPI Panel Mount Trackball

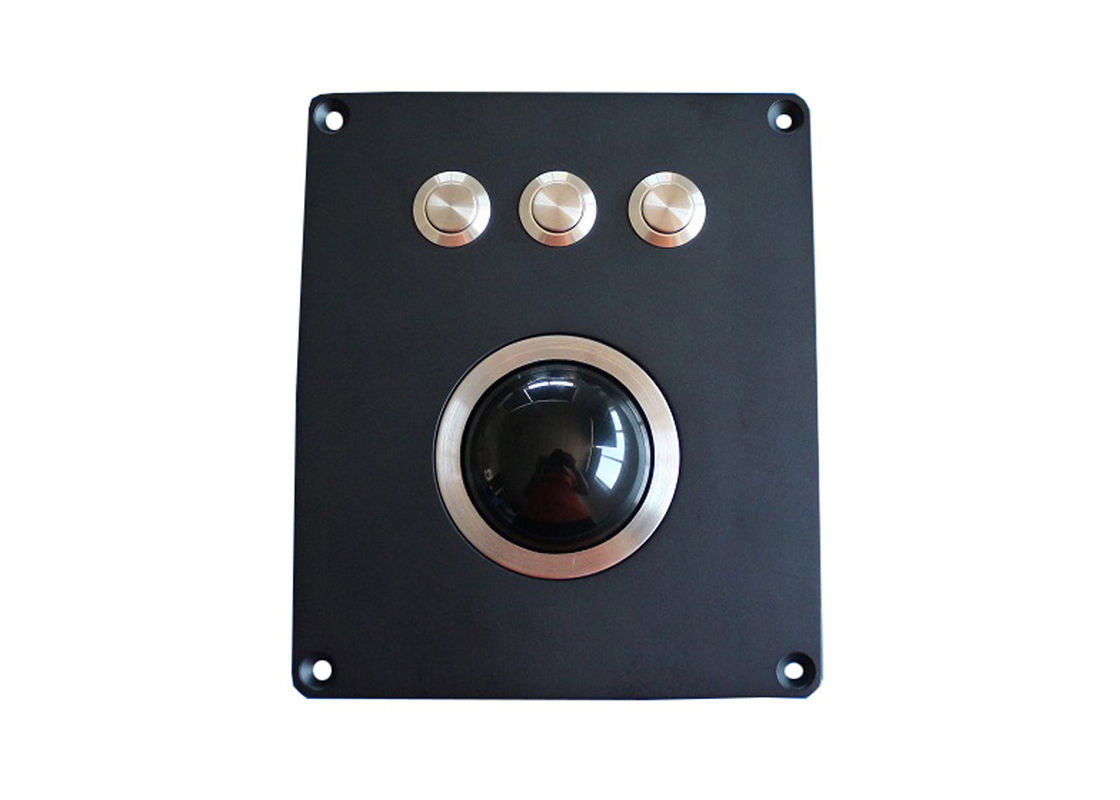

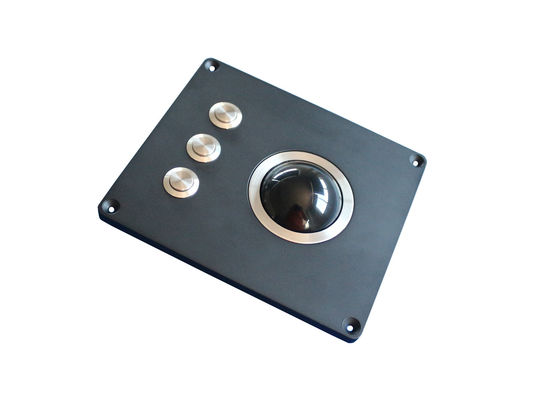

DESCRIPTION:IP54 Vandal proof mechanical trackball with 50mm black hardened resin ball module with 400 DPI resolutions and 3 IP66 sealed and ruggedized mouse buttons for right/left clicking and scrolling up and down with ball rolling. High quality durable black titanium electroplated on the aluminum front panel to be scratch proof and withstand salt spray, with 4 sinking holes for top panel mounting solution. Military level, designed to meet MIL-STD-461G and MIL-STD-810F with strong anti-interference and low radiation ability.



DIMENSIONS: 120.0mm x 141.0mm



Specifications:

ITEM		SPECIFICATION
Mechanical	Key	3 keys
	Key top style	Rugged round Keys
	G.W.	0.6KGs
	Key Travel	1.5mm
	Ball diameter	50.0mm
	Key switch lifespan	more than 1 Mio actuations
	Track ball lifespan	> 10 Mio revolutions
	Actuation Force	3.2N+/-0.1N
	Dimension	Front plate : 120 x 141 mm
Interface	USB
Electrical	Power supply	+5V DC +/-5%
	Protection level	IP54(trackball) + IP66( mouse buttons)
	EMC Standard	EN 55032:2015, EN 55035:2017
	Power consuming	≤1.00W(dynamic)
		≤0.2W(static)
Environmental	Operating temperature	-40ºC~+ 60º C
	Storage temperature	-45ºC~+ 70ºC
	Operating RH	30～90%
	Atmospheric pressure	60～106Kpa.
Reliable	Certificates	RoHS compliant, CE and FCC certified
	MTBF	>20000h
	MTTR	< 30min
OS	All Windows, Linux
Packing Details	Each unit to a suitable brown box, suitable brown boxes to a standard export carton.



APPLICATIONS

MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;

MILITARY: Army, Navy, Air force, Defense



MAIN FEATURES:

1. USB connection cables that plug directly into computer like normal mouse operations.

2. Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel        positioning accuracy when the ball is moved slowly.

3. Can be mounted horizontally, and vertically or any directions.

4. Available 50mm diameter black hardened resin ball for smooth, quick and durable operation and precise cursor positioning

5. No metal bearings inside, operation is very smooth, and easy without any noise.

6. MIL-STD-461G and MIL-STD-810F standard, with strong anti-interference and low radiation ability, electromagnetic compatibility and wide temperature.
