DESCRIPTION:
16 keys compact format IP67 dynamic vandal proof Stainless Steel industrial dot matrix numeric keypad with fully sealed & ruggedized industrial metal dome PCB with socket on the back panel for connecting electronics controller, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, with industrial backlight included (Red/blue/white/green optional), rear panel mounted. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
APPLICATION:
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.
MECHANICAL DATA:
| Front plate |
1.5mm thickness super quality brushed stainless steel
|
| Back plate |
Super quality SUS304 stainless steel |
| Actuator/Keys |
16keys, super quality SUS304 brushed stainless steel
|
| Key top style |
protuberant rectangular keys, with laser engraved and etched legends and raised braille dots available. |
| Key size |
14.0mm x 14.0mm for normal key, 14.0mm x 28.0mm for function keys
|
| Switching material |
Gold-on-Gold key switch technology PCB
|
| Actuation Force |
3.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 4.0N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
|
| Key Travel |
0.45mm
|
|
Switch life
|
more than 1 million of operations
|
| Dimensions |
100.0mm x 90.0mm.
|
| G.W. |
0.69KGs
|
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP67(front panel)
Vandal resistant IK09
Key Lifespan > 1 million actuation
MTBF >20000H
MTTR <30min

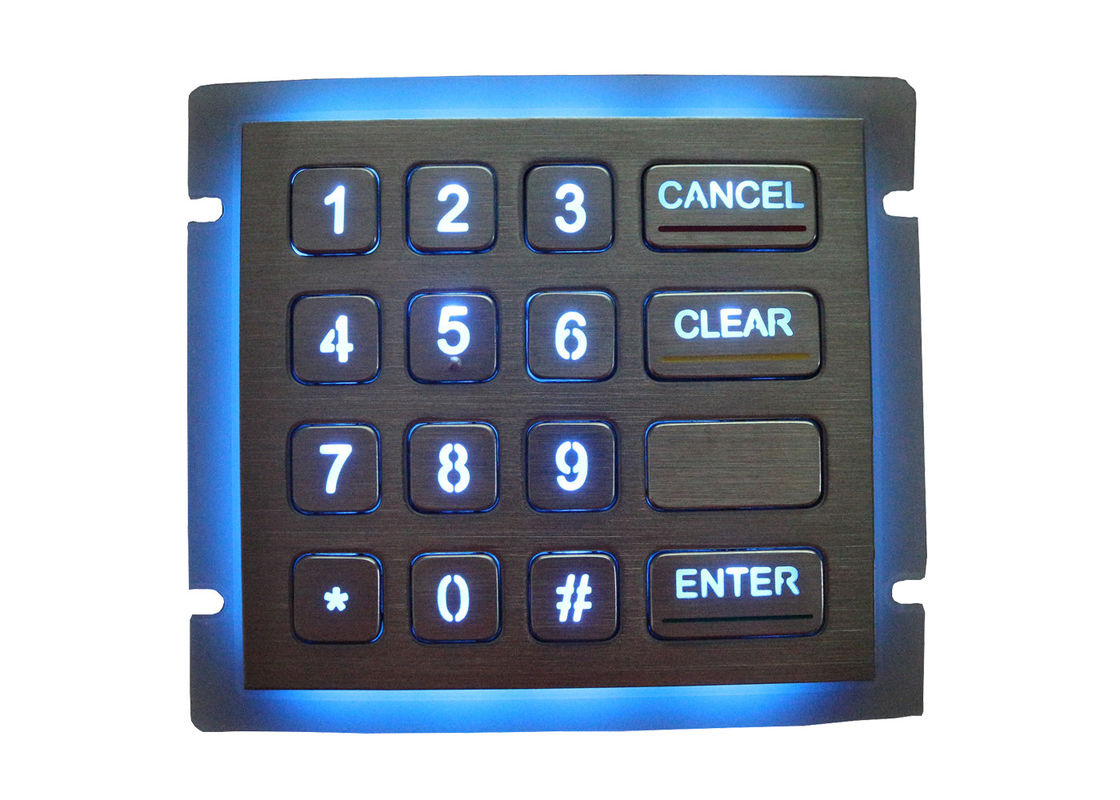

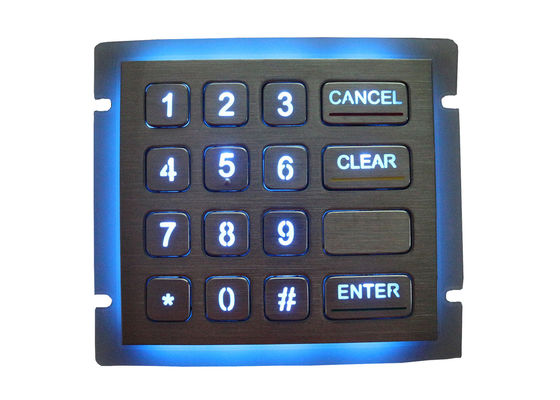

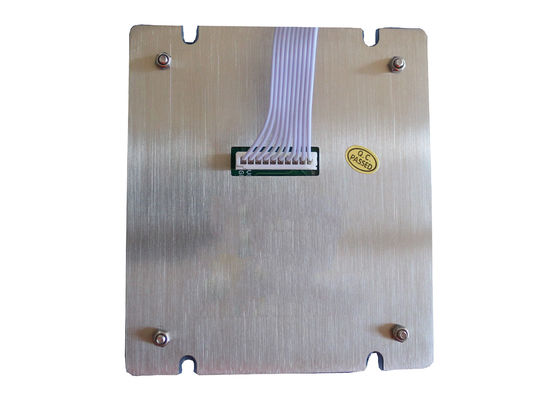

Actual photos:
