Desktop IK09 Vandal Proof Keypad Brushed Metal RS232 With 16 Keys

Large Image : Desktop IK09 Vandal Proof Keypad Brushed Metal RS232 With 16 Keys

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	IKB-MKB
Certification:	CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number:	K-TEK-B120KP-DT-DWP

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Each keyboard to one box, several boxes to one carton.
Delivery Time:	ASAP Within 2 weeks upon payment confirmed
Payment Terms:	Full payment in advance, Western Union, T/T, Paypal
Supply Ability:	3000psc/month

Contact Now

Desktop IK09 Vandal Proof Keypad Brushed Metal RS232 With 16 Keys

Description

Dimension:	120.0mm X 110.0mm X 30.0mm	Interface:	USB, PS/2, RS232
Mounting:	Desktop Movable	Material:	304 Stainless Steel
Key Travel:	0.45mm Short Stroke
Highlight:	Brushed Metal Vandal Proof Keypad , IK09 Vandal Proof Keypad , RS232 Desktop Numeric Keypad

APPLICATION

This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gasstations, cash machines (ATMs/CDM), Internet public phones etc.

Descriptions:

MECHANICAL DATA

Actuator/keys: 16 keys

Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

Key Size: 14.0mm x 14.0mm for normal keys

Key travel: 0.45mm

Actuation Force: 3.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point)

Switch life: more than 1 million of operations.

G.W.: 1.0KGs

Dimensions: 120.0mm x 110.0mm x 30.0mm

ENVIRONMENTAL ADAPTABILITY

Operating temperature:-20°C to +60°C
Storage temperature: -30°C to +70°C
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.

RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP68(front panel)
Vandal resistant IK09
Key Lifespan >1 million actuations
MTBF >20000H
MTTR <30min

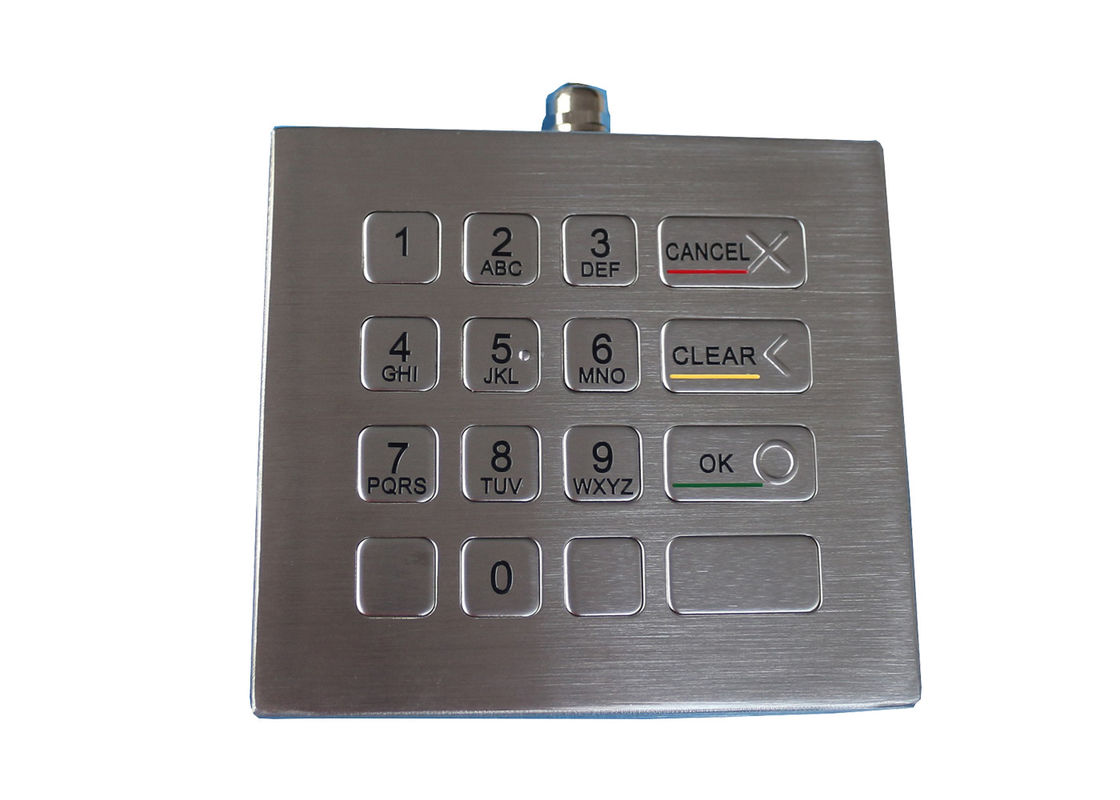

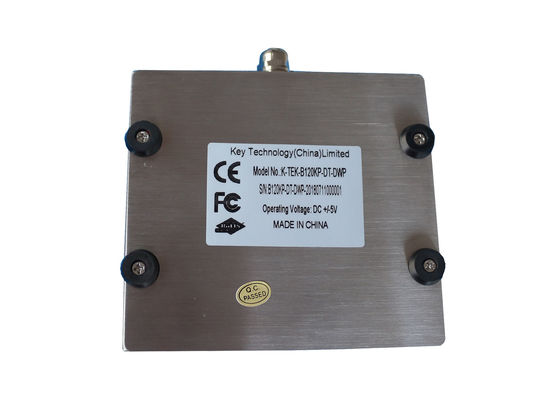

Actual Photo:

Desktop IK09 Vandal Proof Keypad Brushed Metal RS232 With 16 Keys 0

Desktop IK09 Vandal Proof Keypad Brushed Metal RS232 With 16 Keys 1

Our Exhibitions:

Desktop IK09 Vandal Proof Keypad Brushed Metal RS232 With 16 Keys 2

Our Sample room:

Desktop IK09 Vandal Proof Keypad Brushed Metal RS232 With 16 Keys 3

Desktop IK09 Vandal Proof Keypad Brushed Metal RS232 With 16 Keys 4
