Product Details:
|
Material: | Silicone | Color: | Black |
---|---|---|---|
Keys: | 91 Keys | Key Travel: | 1.2mm±0.1mm |
Protection Level: | IP65 Dynamic (front Panel) | Interface: | USB Aviation Plug Or USB2.0 |
Size: | 464mm*182mm (L X W ) | Name: | Industrial Pc Keyboard |
Highlight: | 91 Keys Silicone Industrial Keyboard,30mA Silicone Industrial Keyboard,FCC Silicone Rubber Keyboard |
silicone rubber keyboard

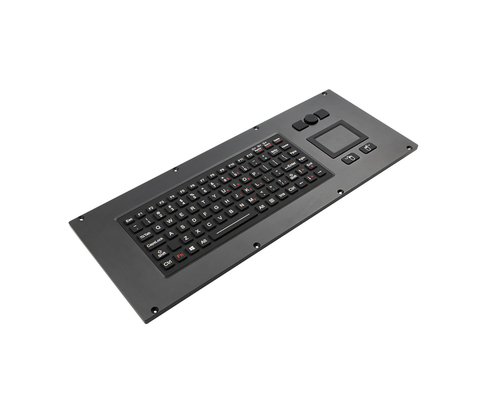

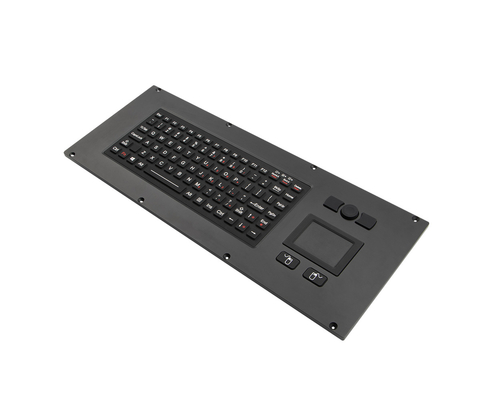

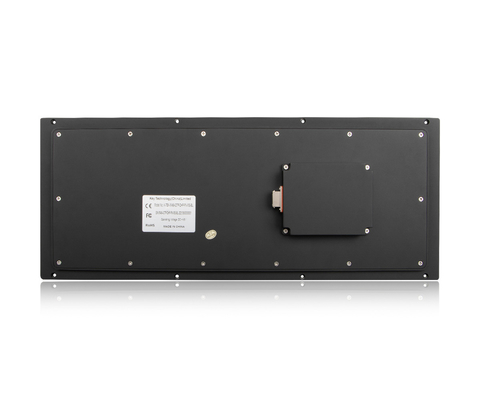

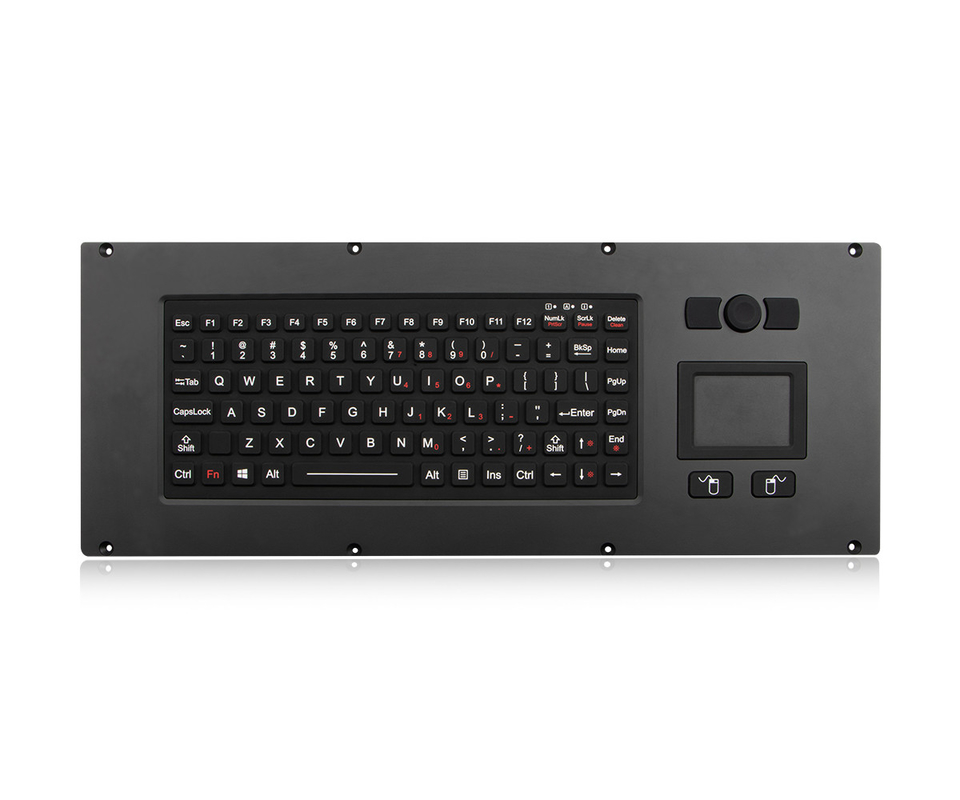

DESCRIPTION: 87 keys IP65 dynamic sealed & ruggedized silicone rubber industrial keyboard, with sealed and tough military level wide temperature touch pad and Force Sensing Resistor pointing device for fast and accurate cursor position, 12 function keys on top line for easy operation, industrial membrane key switch technology with key stroke (1.20mm) with extremely good tactile feeling for fast and accurate data input without any noise and error output, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN+CLEAN combination key to lock/disable the whole keyboard for easy cleaning without disconnecting the keyboard from computer, The electronics controller module is shielded and protected by aluminum housing, panel surface by oxidation painting top, panel mount with sinking holes, adjustable industrial white backlight included, Aviation plug or USB2.0 interface available.
DIMENSIONS : 464mm*182mm (L x W )
MECHANICAL DATA | |
Key | 87 keys + 4 mouse keys |
Key top style | Protuberant rectangular keys with tactile feeling. |
Key Size | 12.5mm X 12.5mm for normal keys, 22.8mm x 12.5mm for enter key 68.4mm x 12.5mm for space bar key |
Key travel | 1.2mm±0.1mm |
Actuation Force | 1.2N±0.2N (pressure point ) |
Switch life | more than 5 million of operations. |
Touch pad | 1.3mm thick PCB, containing polyester film |
Touchpad cover | Composite |
More than Lifetime 10 million strokes | |
Mutual capacitance sensing | |
X/Y axis location detection resolution | 40 Counts /mm |
X/Y position report | relative |
Output (self-detectable depending on cable) | PS2 or USB |
Tracking speed | Maximum 1,016 m/sec |
Power supply voltage | 5V ± 0.25V |
Current rating (active mode) | < 10 mA |
G.W. | 1.62KGs |
ELECTRICAL DATA | |
Supply Voltage | DC +5V±5% |
Current Rating | 50mA when backlight is off, 300mA with backlight on |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | industrial PCB with membrane key switch technology |
Interface | Aviation plug or USB2.0 |
Cable length | Standard 2.0m, customized length available. |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20℃ to +60℃ |
Storage temperature | -30℃ to +65℃ |
Saline mist | 96h, IEC60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
Humidity | 100% |
Atmospheric pressure | 60-106Kpa |
RELIABILITY | |
RoHS compliant, CE and FCC certified | |
Protection Level | IP65 dynamic (front panel) |
Key Lifespan | >5 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
