DESCRIPTION:
12 keys compact format IP67 washable vandal proof stainless steel industrial Compact Format Numeric keypad with dot matrix circuit with socket on the back panel of PCB for connecting electronics controller, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, with rear stainless steel plate with mounting holes and water-tight gasket for easy mounting and tightening to enclosure or panel. With Industrial Backlight included (red/blue/white/green optional). Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.
APPLICATION:
This Keypad is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.
MECHANICAL DATA:
| Front plate |
1.5mm thickness super quality brushed stainless steel
|
| Back plate |
Super quality SUS304 stainless steel |
| Actuator/Keys |
12keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key
|
| Key top style |
protuberant rectangular keys, with laser engraved and etched legends and raised braille dots available. |
| Key size |
10.0mm x 10.0mm for normal keys
|
| Switching material |
Gold-on-Gold key switch technology PCB
|
| Actuation Force |
2.0N+/-0.1N for key 10.0mm x 10.0mm (pressure point)
|
| Key Travel |
0.45mm
|
|
Switch life
|
more than 1 million of operations
|
| Dimensions |
48.0mm x 60.0mm (L x W )
|
| G.W. |
0.60KGs
|
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP67(front panel)
Vandal resistant IK09
Key Lifespan > 1 million actuation
MTBF >20000H
MTTR <30min

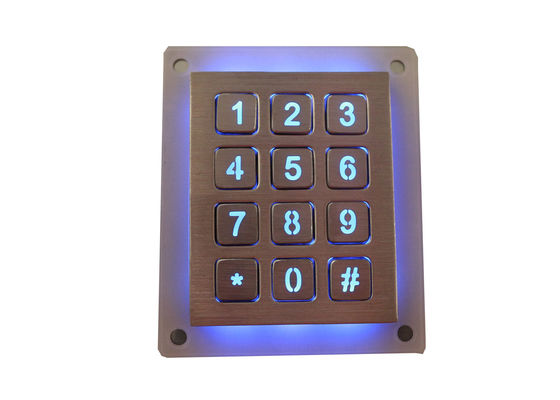

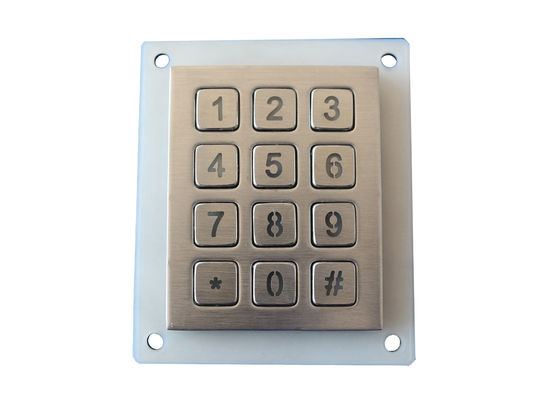

Actual photos:
