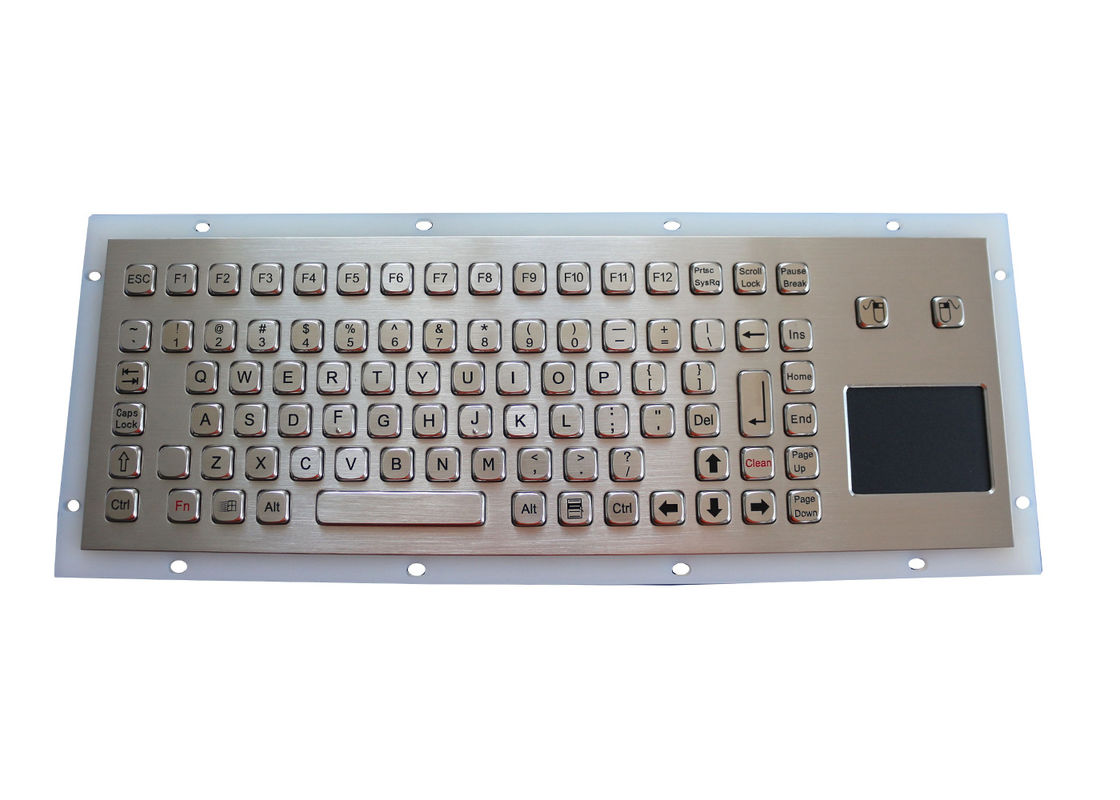

Panel Mount Industrial Metal Keyboard With Sealed & Ruggedized Tough Touchpad
DESCRIPTION:
1: 90 keys compact format IP67 dynamic washable vandal proof stainless steel industrial keyboard
2: With IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position,
3: F1, F2, F3…F10, F11, F12 are on the top line for easy operation, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise.
4: FN + Clean combination keys to lock and disable the whole keyboard for easy cleaning and to avoid mis-typing.
5: One complete sealing silicone rubber under top stainless steel plate for easy mounting & sealing tightly with cabinet, rear panel mounting: solution.
6: Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.
7: DIMENSIONS: 343.0mm x 125.0mm (front panel)
|
Supply Voltage
|
+5V DC +/-5%
|
|
Current Rating: appr
|
80mA
|
|
EMC Standard
|
EN 55032:2015, EN 55035:2017
|
|
Lifespan
|
> 5 years
|
|
Switch Contact Material
|
Carbon-on-Gold key switch technology PCB.
|
|
Interface
|
PS2, USB available
|
|
Operating temperature
|
-20oC to +60oC
|
|
Storage temperature
|
-30oC to +70oC
|
|
Operating RH
|
30-90%
|
|
Atmospheric pressure
|
60-106Kpa
|
|
Saline mist
|
96 hours, IEC 60512-6
|
|
Damp heat test at + 40oC
|
21 days, IEC 60512-6
|
|
Dry heat test at + 85oC
|
10 days, IEC 60512-6
|
|
Protection Level:
|
IP67
|
|
Vandal resistant
|
IK08 |
|
Key Lifespan
|
>5 million actuations
|
|
MTBF
|
>20000H
|
|
MTTR
|
<30min
|
MAIN FEATURE
*The keyboard can be dynamic washable with water and other liquids, it can work well even under direct water pouring On the keyboard.
*The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without needing to take the keyboard away from PC.
*Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
*Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
*Waterproof execution according to IP67 protection from top panel, rear aluminium plate with mounting holes easily & tightly mounting to enclosure or panel
*An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation.
*Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
*Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
*Ease of customizing with multiple languages, to accommodate foreign or custom variants.
*Complete electronic modules including controller in close consultation with our customers are available.
*PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.
MECHANICAL DATA
Actuator/keys: 90 keys, super quality SUS304 brushed stainless steel.
Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
Key travel: 2.0mm
Actuation Force: 1.2 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.0 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Switch life: more than 5 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel

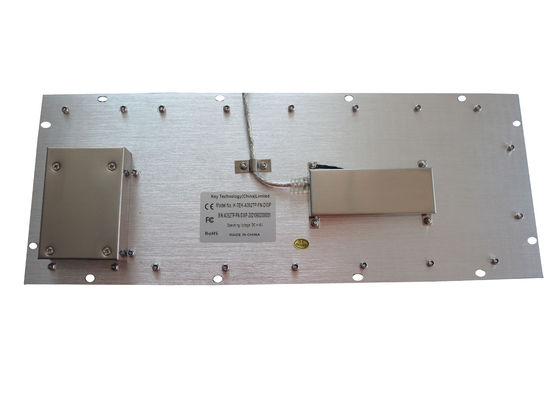

Back Plate:3.0mm thickness brushed & oxidized aluminium
Touchpad: sealed and ruggedized tough touchpad.
Touchpad cover: Composite
More than Lifetime 5 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative
Output (self-detectable depending on cable): PS2 or USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5 VDC ±0.25V
Current rating (active mode): 17 mA
G.W.: 1.80KGs
Dimensions: 392.0mm x 135.0mm (front panel) 415.0mm x 158.0mm(back panel)
