Vandal Proof Marine Backlit Keyboard With Integrated Touchpad
DESCRIPTION:85 keys IP65 dynamic vandal proof industrial and military keyboard with adjustable industrial backlight, sealed & ruggedized tough touchpad for fast and accurate cursor position, with FN (F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12) on the top line for easy operation, with industrial PCB with carbon-on-gold key switch technology with key stroke 1.50mm with extremely good tactile feeling for fast and accurate input without any noise, red clean key lock/disable the keyboard for easy cleaning and washing without needing to take out the keyboard from PC, high quality durable black titanium electroplated on the top stainless steel plate (optional), adjustable industrial backlight included, rear panel mounted.
|
ELECTRICAL DATA
|
Supply Voltage:
|
+5V DC +/-5%
|
|
Current Rating:
|
40mA for keyboard without backlight
|
|
Current Rating:
|
140mA for keyboard with backlight on
|
|
EMC Standard:
|
EN 55032:2015, EN 55035:2017
|
|
Lifespan:
|
> 5 years
|
|
Switch Contact Material:
|
Gold-on-Gold key switch technology PCB
|
|
Interface:
|
PS2, USB available.
|
|
OS:
|
All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
|
|
ENVIRONMENTAL ADAPTABILITY
|
Operating temperature:
|
-20oC to +60oC
|
|
Storage temperature:
|
-30oC to +70oC
|
|
Operating RH:
|
30-90%
|
|
Atmospheric pressure:
|
60-106Kpa.
|
|
Saline mist:
|
96 hours, IEC 60512-6
|
|
Damp heat test at + 40oC:
|
21 days, IEC 60512-6
|
|
Dry heat test at + 85oC:
|
10 days, IEC 60512-6
|
|
RELIABILITY
|
Protection Level:
|
IP65
|
|
Vandal resistant:
|
IK10
|
|
Key Lifespan:
|
>5 million actuations
|
|
MTBF
|
>20000H
|
|
MTTR
|
<30min
|

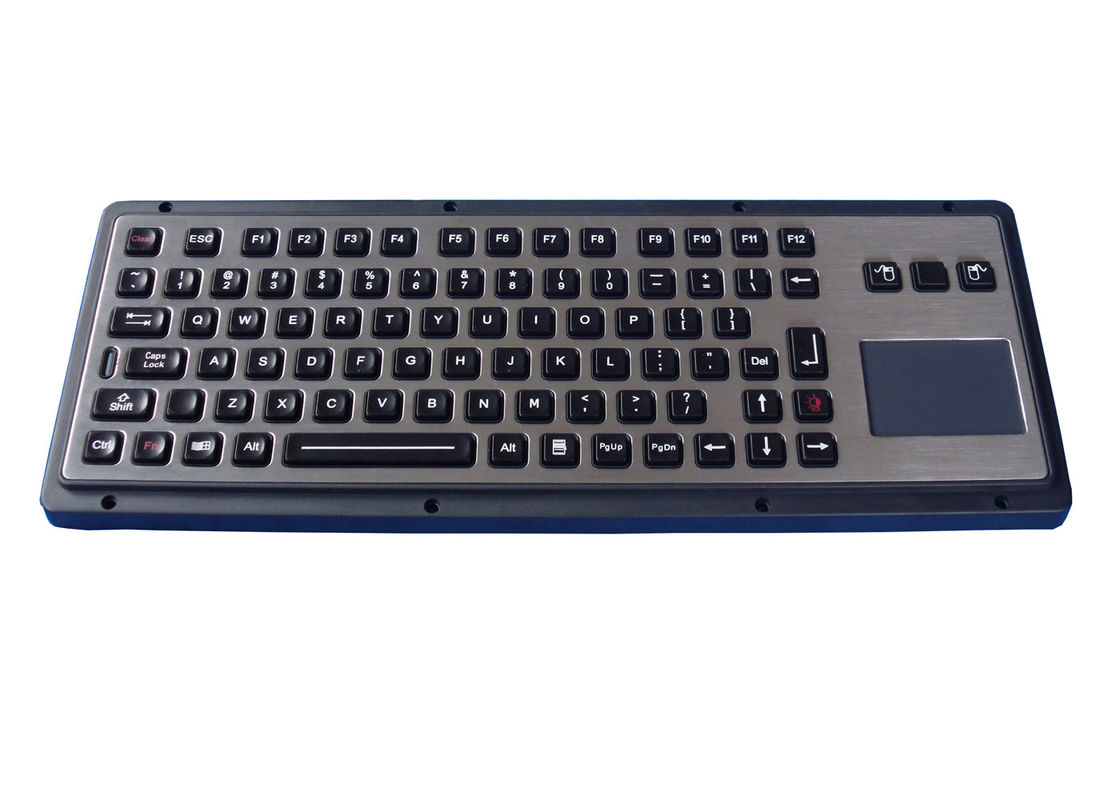

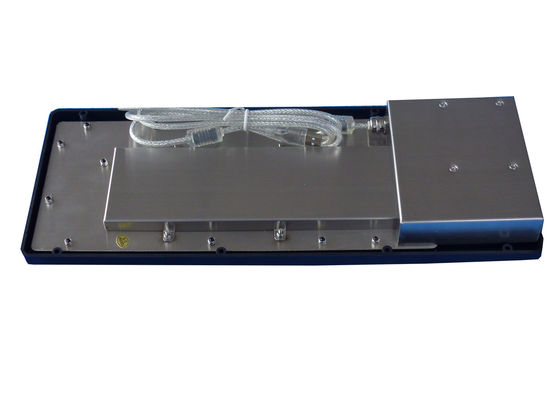

Actual Photos:
APPLICATION
This keyboards is constructed to survive in exposed, unsupervised, public environments, and military as Army, Navy, Air force. Their responsive key action ensures rapid, reliable and responsive data entry in tough, wet or hostile conditions. A hardened stainless steel front plate and polymer keys ensure the keyboard’s resistance to hard use, abuse and vandalism. A water and impact resistant trackball makes this keyboard the complete and ideal solution for PC data entry in menu based ‘point & click’ application.
MAIN FEATURES
NVIS-compliant adjustable red backlighting, while NVIS backlighting makes this keyboard ideal for military, aviation or vehicle applications where night vision goggles are necessary;
Strong polymer keys ensure the keyboard’s resistance to willful destruction, vandal-proof, against corrosion, weather-proof under hostile environments.
Waterproof execution according to degree of protection IP65 from the panel, the keyboard is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure.
Excellent tactile feel with full travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
Key-tops are laser-etched or high quality ink print in legends and characters for easy readability, long life to prevent lettering rub-off.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection output cables that plug directly into the host computer for normal keyboard operations.
Operational life of more than 10 million cycles per key.
Resistant to most commonly used cleaning agents.
Integral IP65 dynamic sealed and ruggedized tough touchpad, 38mm trackball optional
