Food And Beverage Industrial Membrane Keyboard With Trackball Omron Switch

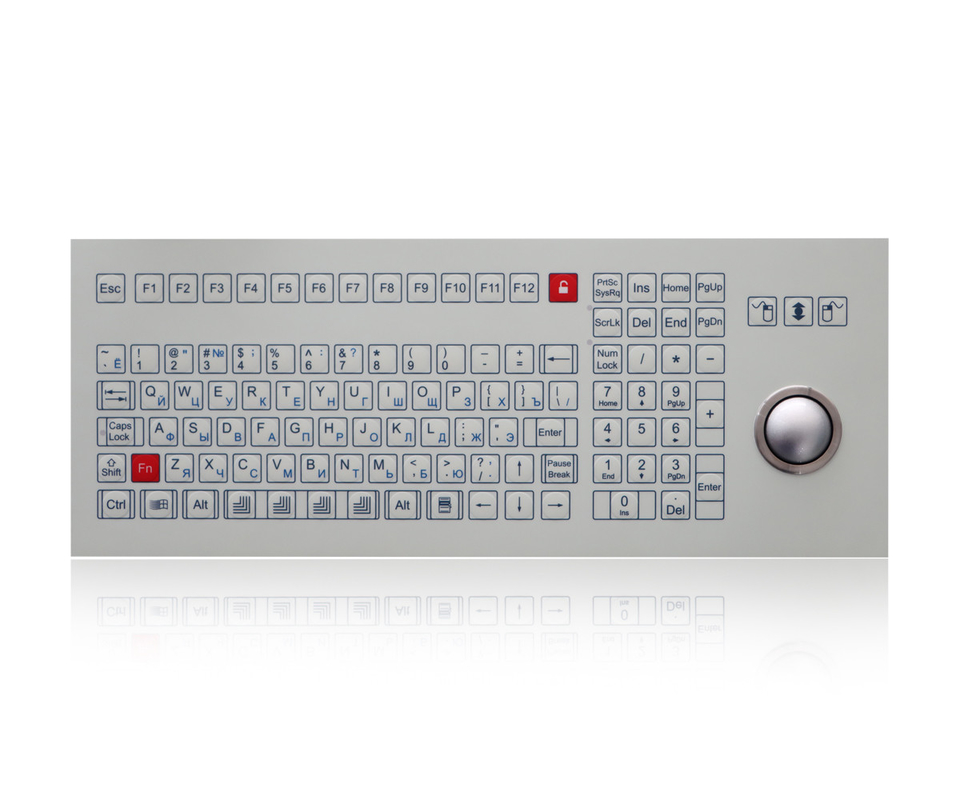

Large Image : Food And Beverage Industrial Membrane Keyboard With Trackball Omron Switch

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	IKB-MKB
Certification:	CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number:	K-TEK-D410-OTB-KP-FN-SW

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	To be quoted
Packaging Details:	Each keyboard to one box, several boxes to one carton.
Delivery Time:	ASAP Within 2 weeks upon payment confirmed
Payment Terms:	Full payment in advance, Western Union, T/T, Paypal
Supply Ability:	3000psc/month

Contact Now

Food And Beverage Industrial Membrane Keyboard With Trackball Omron Switch

Description

Material:	Membrane	Keys:	106 Keys
G.W.:	1.60KG	Resolution:	800 DPI
Layout:	Any Customized Language	Mounting:	Front Panel Mounting
Name:	Industrial Membrane Keyboard
Highlight:	Beverage Industrial Membrane Keyboard , Food Industrial Membrane Keyboard , Trackball Omron Switch Industrial Keyboard

Food And Beverage Industrial Membrane Keyboard With Trackball Omron Switch

Membrane Keyboard Features:

-IP65 rate industrial membrane keyboard

-106 keys with full functionality with numeric keys and FN keys

-Any customized layout is available

-Integrated with IP68 optical trackball for fast cursor moving

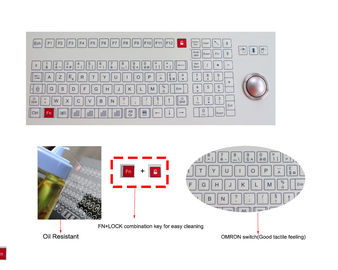

-FN+Lock buttons for easier cleaning the keyboard

-With Omran switch technology for fast data input and excellent tactile

-Top panel mount with threaded bolts

Industrial Membrane Keyboard Dimensions: 410.0 mm x 160.0 mm (front panel)

Food And Beverage Industrial Membrane Keyboard With Trackball Omron Switch 0

MECHANICAL DATA
Number of Keys	106 keys (including 3 mouse buttons)
Key switch Technology	OMRON switch technology with short stroke 0.45mm for stable and accurate data input
Actuation Force	2.0N±0.2N (press point)
Key Travel	0.45±0.05mm
Key switch Lifetime	1 mil. operations
Mounting Type	Top panel mounting.
Colors	3 (white, black, grey)
G.W.	1.60KGs
Key Dimensions (print area)	14.0mm x 14.0mm
Trackball	IP68 washable 38mm stainless steel optical ball, or silver hardened resin optical ball
Trackball resolutions	800DPI
ELECTRICAL DATA
Supply Voltage	DC +5V±5%
Current Rating	100mA
EMC Standard	EN 55032:2015 EN 55035:2017
Lifespan	> 5 years
Interface	PS2, USB available
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20℃ to +65℃
Storage temperature	-30℃ to +75℃
Operating RH	100%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at +40℃	21 days, IEC 60512-6
Dry heat test at +85℃	10 days, IEC 60512-6
RELIABILITY
RoHS, CE, FCC
Protection Level	IP65 dynamic
Key Lifespan	>1 million actuations
MTBF	>20000H
MTTR	<30min
APPLICATIONS	Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.
